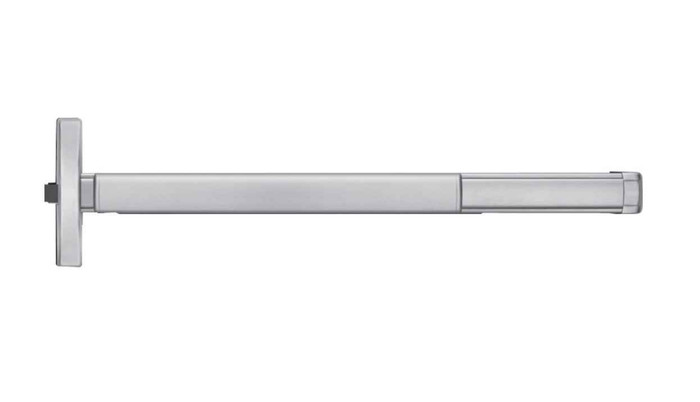

Precision Hardware Inc (PHI) 2414 Series - Lever Always Active, Narrow Stile Rim Exit Device, Non Handed

Precision 2400 Series - Non Handed

Features

Doors – For all types of single and double doors with a mullion. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

Functions – A Universal Exit Device. Add Trim for desired function

Double Cylinder – Handed, “10” Function available. Requires two rim type cylinders, not furnished standard.

Base Material – The Cover, Touchbar, Device Channel, Lock/Hinge Side
Filler and End Cap are furnished of heavy wrought Brass, Bronze or
Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze
and Stainless Steel components.

Chassis – Investment Cast Steel, Zinc Dichromated.

Latchbolt – Stainless Steel, Deadlocking, 3/4" throw.

Strikes – No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458.

Dogging – 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Touchbar Height – 39-15/16" from floor standard. May be varied as situation dictates.

UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE

ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes –
605 606 612 613 622
625 626W 628 630 690

Cylinders – Rim Type for “03” function, Mortise type for “08” function. Use
1-1/4” long standard mortise cylinder. Cylinders are not furnished standard.
Specify when required.
