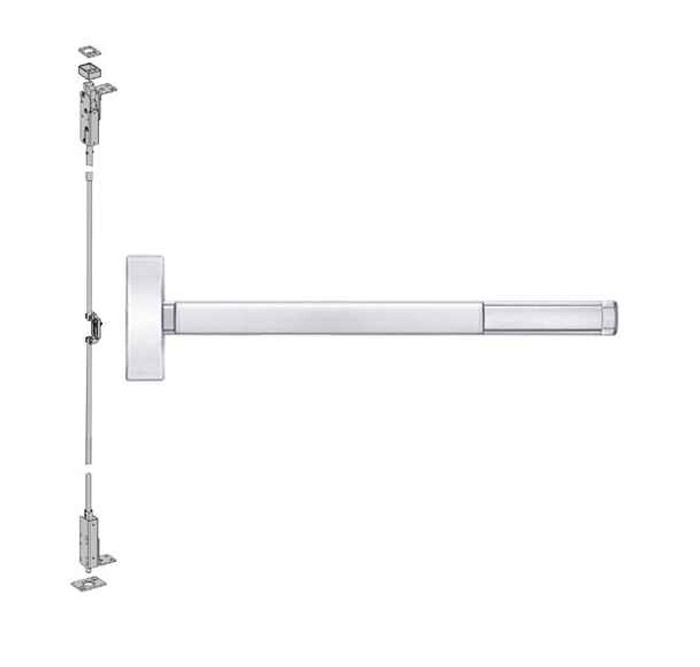

Precision Hardware Inc (PHI) 2602 Series - Dummy Trim, Narrow Stile Concealed Vertical Rod Exit Device, Non Handed

Precision 2600 Series - Non Handed

Features

Doors – For all types of metal single and double door applications. Available for 1-3/4" thick, up to 4'-0" wide by 10'-0" high openings. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide by 6'-8" to 8'-0" high openings.

Functions – A Universal Exit Device. Add Trim for desired function.

Base Material – Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis – Lock Stile Assembly - Investment Cast Steel, Zinc
Dichromated.

Top Latchbolt – Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt – Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Center Chassis – Steel plated, heavy wrought Steel Assembly with lock in place Top and Bottom Latch Adjustors. Adjustment is accessible through the door after installation.

Top Strike – No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.

Bottom Strike – No. S460, Flush mounted, Steel, Black Powder

CoatedDogging – 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Touchbar Height – 39-15/16" from floor standard. Specify required height if other than standard.

UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE

ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes –
605 606 612 613 622
625 626W 628 630 690

Cylinders – Rim Type for “03” function, 1-1/4" Long Mortise Type for
“08” function. Cylinders are not furnished standard.

Less Bottom Rod (LBR) Option – Specify suffix “LBR” (e.g. 2603LBR).
