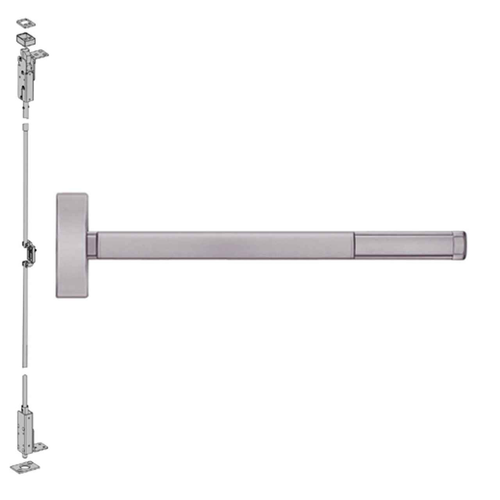

Precision 27 Series - Reversible
Features
Doors – For all types of single and double door applications. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide by 10'-0" high openings. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide by 6'-8"to 8'-0" high openings.
Functions – A Universal Exit Device. Add Trim for desired function.
Base Material – Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
Chassis – Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated.
Vertical Rods – Steel, plated. Top Rod is adjustable from 6'-8" to 8'-0" or from 8'-1" to 10'-0". Additional adjustments are available through the lock front filler.
Top Latchbolt – Stainless Steel, Deadlocking, 3/4" throw.
Bottom Bolt – Steel plated, independent action 5/8" throw, with
adjustment range to suit 3/4" door undercut.
Top Strike – No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.
Bottom Strike – No. S460, Flush mounted, Steel, Black Powder Coated.
Dogging – 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
Touchbar Height – 39-15/16" from floor standard. Specify required height if other than standard.
Reversible – Reversible for all functions and trims.Standard packaging RHRB.
UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE. Conforms to UL10C and UBC 7-2.
ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.
Finishes –
605 606 612 613 622
625 626W 628 630 690
Cylinders – Rim Type, not furnished standard. Specify when
required. For cylinder details see page 19.
Stile Width – See Stile Information on page 37.
Less Bottom Rod (LBR) Option – Specify suffix “LBR” (e.g. 2703LBR).
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Series:
- 2700 Series
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Devices - Vertical Rod
- Product Type:
- Exit Devices - Concealed Vertical Rod
- Subcategory:
- Concealed Vertical Rod
- Commercial/Residential:
- Commercial
