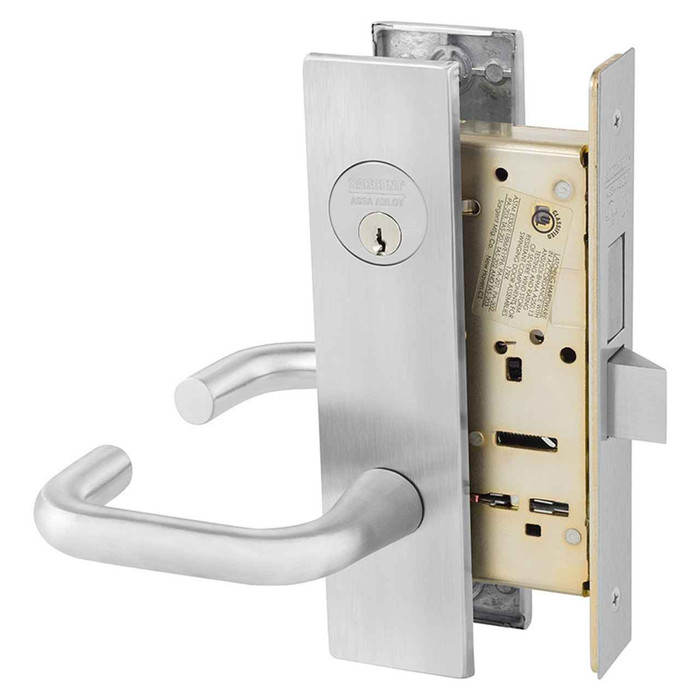

Sargent 8241-ET Classroom Security Intruder Deadbolt Escutcheon Trim with Heavy Duty Double Cylinder
Professional Grade 1 Mortise Lock Trim Component
The Sargent 8241-ET escutcheon trim is designed for use with the industry-leading 8200 Series mortise locks, providing classroom security intruder deadbolt functionality with heavy duty double cylinder construction. This professional-grade trim component features 2 3/4" backset depth compatibility and 1 3/4" door thickness specifications. The trim integrates with all SARGENT key systems including Degree, Signature, KESO, and XC, and supports the parent lock’s Grade 1 operational rating per ANSI/BHMA A156.13 Series 1000 standards with UL cycle testing at 16 million cycles.
Professional Features & Benefits
- Grade 1 System Integration: Compatible with ANSI/BHMA A156.13 Series 1000 Grade 1 rated mortise locks for maximum security performance in commercial applications.
- Heavy-Duty Construction: Designed to support parent lock systems tested to 16 million cycles (UL Verification ID: V584148) for exceptional durability in high-traffic environments.
- Universal Key System Compatibility: Integrates with all SARGENT key systems including Degree, Signature, KESO, and XC for flexible master keying configurations.
- Classroom Security Function: Specifically designed for intruder deadbolt applications providing enhanced security control for educational facility requirements.
- Multi-Functional Support: Compatible with parent lock systems offering 56 different functions including electromechanical and security monitoring configurations.
- Fire-Rated Compatibility: Supports UL 10C positive pressure fire-rated applications up to 3 hours with NFPA 80 compliance for life safety requirements.
- Professional Certifications: ADA compliant compatibility with ASTM E330 certified and Florida Building Code approved parent lock systems.
- Manufacturer Warranty: 10-year limited warranty with 2-year coverage on electrical components for added confidence and protection.
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Installation & Operation
This escutcheon trim component is designed for use with compatible Sargent 8200 Series mortise locks. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.
Professional Applications
- Educational Facilities and Classroom Security
- Commercial Office Buildings
- Healthcare Institutions
- Government and Municipal Buildings
- Multi-Tenant Residential Properties
- Industrial and Warehouse Facilities
- Retail Establishments
Why Choose Sargent Quality?
Sargent 8200 Series mortise lock components deliver professional-grade reliability with patented design and construction rated for 16 million cycles of operation. The industry benchmark for mortise lock systems combines maximum security performance with comprehensive fire-rated certifications up to 3 hours. Engineered for demanding commercial applications where dependable performance and classroom security functionality are essential.
Manufacturer Resources
[Catalog] SARGENT Full Line Catalog
Product Specs
- Series:
- 8200 Series
- Grade:
- Grade 1
- Keyed Function:
- Double Cylinder
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Subcategory:
- Bored Locksets
- Keyed:
- Yes
- Commercial/Residential:
- Commercial
- Lock Type:
- Mortise
- Lock Function:
- Classroom Security Intruder Deadbolt
- Product Type:
- Mortise Locks
- Duty Level:
- Heavy Duty
- Handle Type:
- Lever
- Product Attribute:
- Mortise Locks
- Electronic:
- No
- Product Function:
- Classroom Security
- Product Category:
- Mechanical Locks
- Collection:
- 8200 Series
- Department:
- Door Hardware
