Sargent Privacy-Standard Privacy Tubular Lock with Emergency Release - Standard Lever Collection

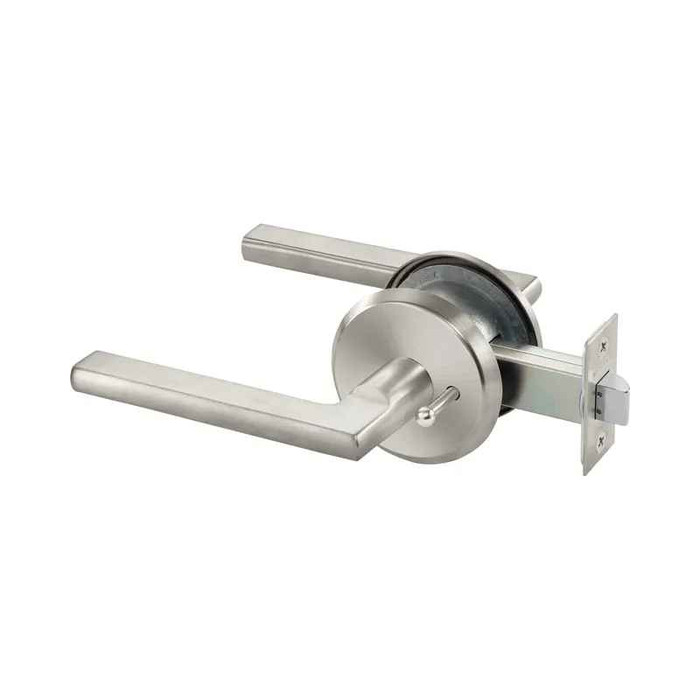

Sargent DL Series Privacy Tubular Lock with Emergency Release - Standard Lever Collection

Professional Privacy Lock Solution for Interior Applications

The Sargent DL Series Privacy tubular lock combines professional-grade security with emergency access functionality for demanding commercial and residential applications. This non-handed privacy lock accommodates door thickness from 1 3/8" to 1 3/4" with standard 2 3/4" backset, features ANSI/BHMA Grade 1 certification, and includes UL fire rating up to 3 hours for code-compliant installations. ADA compliant design ensures accessibility standards compliance for professional applications.

Professional Features & Benefits

• Door Compatibility: Accommodates door thickness from 1 3/8" to 1 3/4" with standard 2 3/4" backset for versatile installation options.
• Heavy-Duty Performance: ANSI/BHMA Grade 1 certification ensures reliable operation in high-traffic commercial applications with 250 lbs. door weight capacity.

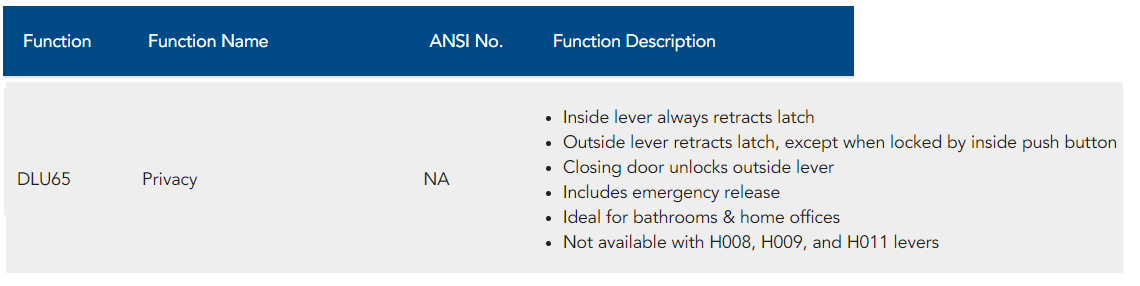

• Privacy Function with Emergency Access: Inside lever always retracts latch while outside lever locks via inside push button, with emergency release capability for safety compliance.
• Fire-Rated Construction: UL-cUL fire-rated up to 3 hours for code-compliant installations in commercial applications requiring fire safety compliance.
• Non-Handed Design: Universal installation eliminates handing requirements and simplifies inventory management for contractors and facility managers.
• ADA Compliance: Meets Americans with Disabilities Act and ICC A117.1 requirements for accessible design standards in commercial facilities.
• Decorative Hardware Options: Available with Studio Collection, Coastal Series, and standard trim options including roseless configurations for aesthetic flexibility.
• Manufacturer Warranty: 1-year limited warranty provides confidence and protection for professional installations.

Technical Specifications

• ANSI/BHMA: ANSI/BHMA Grade 1
• Commercial/Residential: Commercial
• Cover Type: Optional
• Delay Function: No
• Department: Door Hardware
• Door Weight: 250 lbs.
• Duty Level: Heavy Duty
• Grade: Grade 1
• Hold Open Feature: Yes
• Product Category: Door Controls
• Product Group: Door Controls
• Product Subgroup: Door Closers - Surface Mounted
• Product Type: Surface Mounted Door Closers
• Series: 1600BC Series
• Spring Type: Fixed Size
• Subcategory: Surface Closers
• Traffic Rating: Moderate Traffic
• Warranty: 30 Year Limited

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1 3/8" to 1 3/4" and 2 3/4" backset compatibility for this non-handed design.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for tubular lock installation.
3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for proper lock body installation.
4. Install all mounting hardware and secure the lock to door per manufacturer torque specifications ensuring proper alignment of all components.
5. Adjust operational components for proper alignment, latching, and smooth operation of both inside lever and push-button privacy function with emergency release.
6. Test device operation including privacy function and emergency release capability to verify proper operation and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Multi-Tenant Residential Properties
• High-End Apartment and Condominium Projects
• Bathroom and Private Office Applications
• Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent DL Series tubular locks deliver professional-grade reliability with ANSI/BHMA Grade 1 certification and UL fire rating up to 3 hours for demanding commercial applications. The 1-year limited warranty and ADA compliant design ensure code compliance and long-term performance in heavy-duty applications. Engineered for commercial environments where dependable privacy function and emergency access capability are essential for safety and security.
