Sargent 11G05-LC T-Zone Entry/Office Grade 1 Cylindrical Lock Less Cylinder

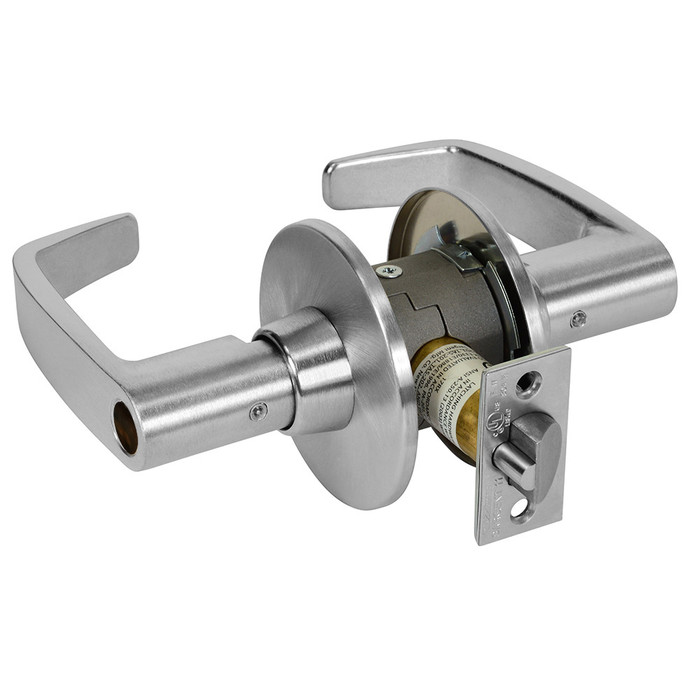

Sargent T-Zone 11G05 Entry/Office Grade 1 Cylindrical Lock Less Cylinder

Professional-Grade Cylindrical Lock with Modular Design

The Sargent T-Zone 11G05 Entry/Office Grade 1 cylindrical lock delivers exceptional durability with independently-verified testing to 7.6 million cycles. This modular design lock accommodates door thickness from 1-3/4" to 2-1/2" with standard 2-3/4" backset and fits standard 161 door preparation. The T-Zone construction prevents lock twisting while integrating with multiple key systems including Sargent Degree and Signature, SFIC, Schlage, and Medeco LFIC cylinders.

Professional Features & Benefits

• Door Compatibility: Accommodates door thickness from 1-3/4" to 2-1/2" with 2-3/4" to 5" backset range for versatile installation options.
• Exceptional Durability: UL Cycle Above and Beyond test completed at 7.6 million cycles (Verification ID: V584148) for lifetime facility reliability.
• T-Zone Torque-Resistant Construction: Prevents lock twisting and eliminates through bolts or surface screws for enhanced security and proper installation.
• Modular Field-Changeable Design: Easy function changes in the field with one lockbody supporting multiple functions for simplified maintenance.
• Universal Key System Integration: Accepts Sargent key systems including Degree and Signature, plus SFIC and Schlage and Medeco LFIC for maximum flexibility.
• Grade 1 Performance: ANSI/BHMA A156.2 Series 4000 Grade 1 certified with 1/2" latchbolt throw and T-Strike curved lip strike.
• Comprehensive Certifications: UL-cUL fire-rated up to 3 hours, ADA compliant, NFPA 80 compliant, and multiple ASTM certifications.
• Sustainable Construction: Made from 68% post-consumer recycled content per LEED MR credit 4 requirements.
• Manufacturer Warranty: 10-year limited warranty for added confidence and protection.

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Anti-Microbial Option

Microshield coating available as an option to supplement cleaning protocols for a healthier environment in high-touch applications.

Why Choose Sargent Quality?

Sargent T-Zone cylindrical locks deliver professional-grade reliability with torque-resistant construction independently verified to 7.6 million cycles. The 10-year limited warranty and Grade 1 certification ensure dependable performance in demanding commercial applications. Engineered with sustainable materials and modular design for reduced maintenance costs and long-term facility value.

Product Documentation & Resources

• [Catalog] SARGENT Full Line Catalog
