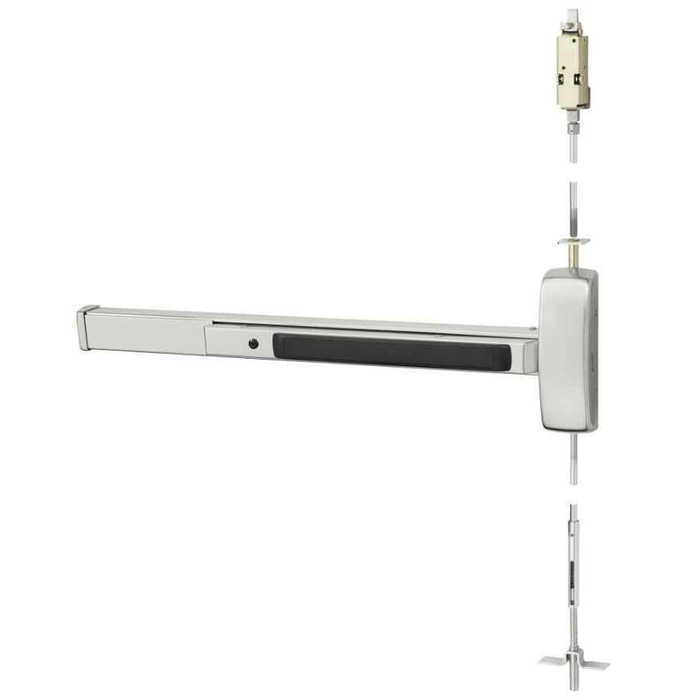

Sargent WD8615 Grade 1 Concealed Vertical Rod Exit Device for Wide Stile Metal Doors

Sargent WD8615 Grade 1 Concealed Vertical Rod Exit Device for Wide Stile Metal Doors

Professional Concealed Vertical Rod Exit Solution

The Sargent WD8615 is a Grade 1 concealed vertical rod exit device from the proven 8600 Series, engineered for wide stile metal door applications. Designed for doors with 1-3/4" minimum thickness and 4-1/2" minimum stile width, this passage function device accommodates door widths from 24" to 48" with factory-cut rails. The device features a center case measuring 8-3/8" x 2-5/8" with standard mounting at 41" centerline from finished floor, providing reliable egress control for commercial applications.

Professional Features & Benefits

• Wide Stile Compatibility: Designed for 4-1/2" minimum stile width on metal doors from 1-3/4" to 2-1/4" thick for versatile installation options.
• Factory-Cut Rail System: Available in four rail sizes (E, F, J, G) covering door widths from 24" to 48" with precise factory cutting when door width is specified.
• Grade 1 Construction: Heavy-duty design with stainless steel top bolt and robust center case dimensions of 8-3/8" x 2-5/8" for demanding commercial applications.
• Concealed Vertical Rod Design: Clean appearance with concealed rods and 650 top strike and 606 bottom strike for panic and fire rated applications.
• Flexible Mounting Options: Standard 41" centerline mounting with 38" option for elementary schools and accessibility compliance when used with 100 Series Auxiliary Control.
• Hex Key Dogging: Standard hex key dogging on non-fire rated devices with optional cylinder dogging (#41 cylinder supplied) for operational flexibility.
• Electronic Integration Ready: Compatible with multiple electric options including alarm, beacon, photoluminescent coating, illuminated touchpad, and monitoring systems.
• Maximum Door Height: Accommodates doors up to 120" maximum door opening height for tall commercial applications.

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" minimum), stile width (4-1/2" minimum), and door width for proper rail selection.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, ensuring proper centerline positioning at 41" from finished floor.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for concealed vertical rod installation.
4. Install rail system (E, F, J, or G rail based on door width) and secure all mounting hardware per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, ensuring proper engagement with top and bottom strikes.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings
• Fire-Rated Door Applications

Why Choose Sargent Quality?

Sargent 8600 Series exit devices deliver professional-grade reliability with Grade 1 construction and stainless steel components designed for demanding commercial applications. The concealed vertical rod design provides clean aesthetics while maintaining the strength and durability required for high-traffic environments. Engineered for simplicity and dependable performance in critical egress applications.
