Schlage B580 - Door Bolt Deadbolt

Schlage B580 Deadbolt

Top selling Schlage grade 2 B Series deadbolts rival many grade 1 products for strength, durability and versatility. These competitively priced deadbolts are offered in 11 finishes, 7 functions and 3 cylinder formats. Their design includes anti-saw, anti-pry, anti-wrench and other security features not common to grade 2 deadbolts. They are easy to install and can meet any security need.

FEATURES & BENEFITS

Strength and security

• Solid zinc bolt with hardened steel anti-saw pin
• Metal dustbox anchors deep to reinforce wood door frames with three 3" screws to protect against kick-in attacks
• Free spinning, cylinder collar resists wrenching and prying
• Removeable security shield protects bolt from ice-pick attack through the door
• Adjustable backset has a lock-in-place helix design
• Available UL 10C 3-hour fire rated options (as auxiliary locks)


Key System Security

• Open and restricted keyway options
• Factory master keying available
• Accepts all three cylinder formats: Conventional, FSIC and SFIC

Functional and aesthetic options

• 7 functions include keyless, single cylinder and double cylinder options
• 11 finish options
• Suites with nearly all Schlage and Von Duprin product


CERTIFICATIONS

• ANSI/BHMA A156.5 Grade 2 certified with Conventional or FSIC cylinder (SFIC is Grade 3)
• UL 10B/UL 10C listing optional for B500 Series as auxiliary locks (the letter F and UL symbol on latch front indicate listing)
• ADA compliant thumbturn design
• BAA (Buy American Act) compliant product


FUNCTIONS

Keyless

• B571 Door bolt with occupancy indicator - thumbturn x occupancy indicator plate

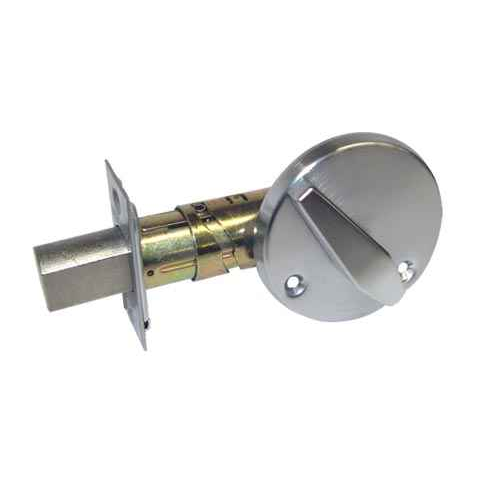

• B580 (E0192) Door bolt - thumbturn x no exterior trim
• B581 (E01112) Door bolt - thumbturn x blank rose

Keyed single cylinder

• B560 (E0152) - thumbturn x cylinder
• B561 (E0162) - blank rose x cylinder
• B563 (E0172) Classroom deadbolt - thumbturn retracts only x cylinder

Keyed double cylinder

• B562 (E0142) - cylinder x cylinder


PRODUCT SPECIFICATIONS

Deadbolt: 1" housing diameter; 0.81" x 0.62" x 1" throw; zinc with hardened steel anti-saw pin insert (drive-in options available)
Faceplate: 1" x 2-1/4" with square corners
Strike: 1-1/8" x 2-3/4" with square corners (ANSI, round corner and thimble strike options available)
Backset: Adjustable for 2-3/8" and 2-3/4" (5" fixed and fire rated options available)
Door range: 1-3/8"-1-7/8" Conventional and thumbturn only; 1-5/8"-2" SFIC
Reinforcement: Metal dust box reinforcer with three 3" screws
Trim ring: 1" wrought brass or bronze reinforced with security insert
Cylinder: 6-pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Keys: Two unplated brass or nickel silver cut keys per lock

Suiting

Designed to create an attractive and cohesive building-wide look when paired with other Schlage, Von Duprin or LCN devices
