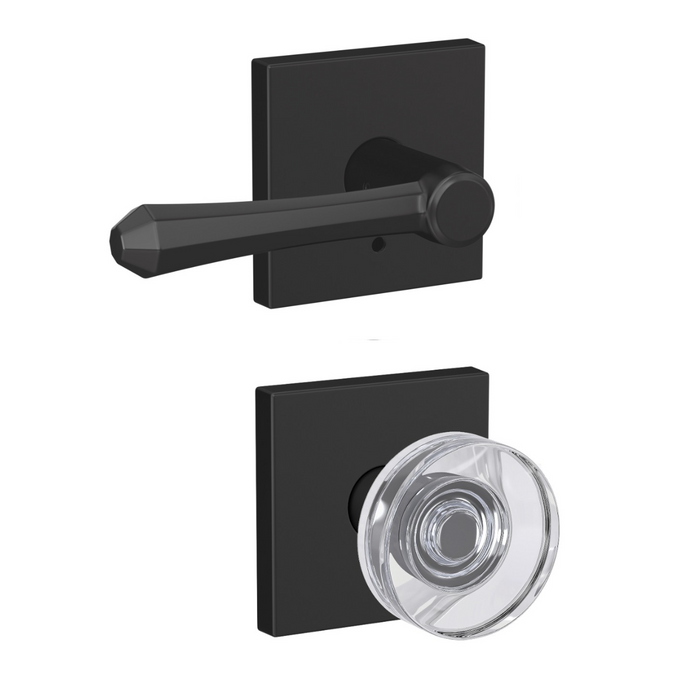

Schlage Residential FC21 Dempsey Lever x Dawes Glass Knob Passage and Privacy Cylindrical Lock

Schlage Residential FC21 Dempsey Lever x Dawes Glass Knob Passage/Privacy Cylindrical Lock

Versatile Residential Lock with Dual Function Design

The Schlage Residential FC21 combines the elegant Dempsey lever with a distinctive Dawes glass knob in a versatile passage/privacy lock configuration. This Grade 2 certified cylindrical lock accommodates door thickness from 1-3/8" to 1-3/4" with dual backset options for 2-3/8" or 2-3/4" installations. The lock features a default passage function that converts to privacy with an interior pushbutton, and includes emergency unlock capability from the exterior side.

Professional Features & Benefits

• Dual Function Operation: Default passage function with privacy conversion via interior pushbutton for versatile residential applications.
• Emergency Access: Can be opened from outside with small emergency unlock tool when in privacy mode for safety and convenience.
• Universal Door Compatibility: Fits door thickness range of 1-3/8" to 1-3/4" with dual backset latches for 2-3/8" or 2-3/4" installations.
• Grade 2 Certification: ANSI/BHMA A156.2-2017 Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AA certified for reliable performance.
• Easy Installation: Features simple 3-step installation requiring only a screwdriver with universal latch and drive-in design.
• Quality Construction: Stainless steel substrate with 1" x 2-1/4" latch, 1/4" radius corner faceplate, and full lip radius strike.
• Fire Door Compatible: Available UL Listed for 90 minute fire door applications for enhanced safety compliance.
• 10 Year Warranty: Comprehensive manufacturer warranty provides long-term confidence and protection.

Standard Features

Certification:ANSI/BHMA A156.2-2017 Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 90 minute fire door
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4" and backset requirements for 2-3/8" or 2-3/4" installation.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the cylindrical lock installation.
3. Prepare door by drilling required holes per manufacturer specifications for the universal latch and drive-in components.
4. Install the spring latch assembly and secure the lock mechanism to door per manufacturer torque specifications.
5. Adjust operational components for proper alignment and smooth operation of both passage and privacy functions throughout the full range of motion.
6. Test device operation to verify proper function of default passage mode, privacy pushbutton conversion, and emergency unlock capability. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Interior Doors
• Bedroom and Bathroom Privacy Applications
• Home Office and Study Rooms
• Guest Room and Secondary Bedroom Access
• Multi-Family Residential Properties
• Assisted Living Facility Private Rooms
• Hospitality Guest Room Applications

Why Choose Schlage Residential Quality?

Schlage Residential FC21 locks deliver professional-grade reliability with stainless steel construction and Grade 2 ANSI/BHMA certification for demanding residential applications. The 10 Year manufacturer warranty provides comprehensive coverage and confidence in long-term performance. Engineered with easy 3-step installation and dual function versatility, this lock combines elegant design with dependable operation for modern residential security needs.
