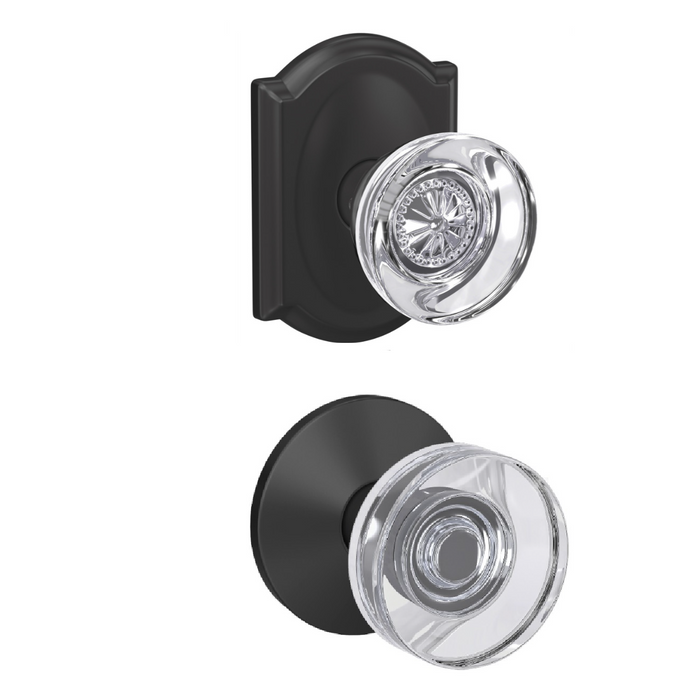

Schlage Residential FC21 Hobson Glass Knob x Dawes Glass Knob Passage and Privacy Cylindrical Lock

Schlage Residential FC21 Hobson Glass Knob x Dawes Glass Knob Passage/Privacy Cylindrical Lock

Dual-Function Residential Lock with Elegant Glass Knob Design

The Schlage Residential FC21 combines passage and privacy functions in a single cylindrical lock featuring elegant Hobson glass knob exterior and Dawes glass knob interior designs. This Grade 2 certified lock accommodates door thicknesses from 1-3/8" to 1-3/4" with dual backset options for 2-3/8" or 2-3/4" installations. The lock features a 1" x 2-1/4" latch with 1/2" throw and includes a full lip radius strike for secure operation.

Professional Features & Benefits

• Door Thickness Compatibility: Accommodates 1-3/8" to 1-3/4" doors with dual backset latches for 2-3/8" or 2-3/4" installations.
• Dual Function Operation: Passage is default function with privacy pushbutton conversion on interior side for versatile residential applications.
• Emergency Access Feature: Privacy function can be opened from outside with small emergency unlock tool for safety and convenience.
• Professional Grade Construction: ANSI/BHMA Grade 2 certification and stainless steel substrate provide reliable performance for residential use.
• Easy Installation: Simple 3-step installation process requires only a screwdriver with universal latch and dual backset compatibility.
• Fire Door Compatible: Available UL Listed for 90 minute fire door applications when required.
• Complete Hardware Package: Includes 1" x 2-1/4" latch with 1/4" radius corner faceplate and 1-5/8" x 2-1/4" full lip radius strike.
• Manufacturer Warranty: 10 Year warranty coverage for added confidence and protection.

Standard Features

Certification:ANSI/BHMA A156.2-2017 Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 90 minute fire door
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4" and backset measurement of either 2-3/8" or 2-3/4".
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the cylindrical lock installation.
3. Prepare door by drilling required holes per manufacturer specifications for the lock body, latch, and strike plate.
4. Install the dual backset latch assembly and secure the lock mechanism to door per manufacturer torque specifications.
5. Adjust operational components for proper alignment and smooth operation of both passage and privacy functions throughout the full range of motion.
6. Test device operation to verify proper function of passage mode, privacy pushbutton conversion, and emergency unlock capability. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Interior Doors
• Bedroom and Bathroom Privacy Applications
• Hall and Closet Passage Functions
• Multi-Family Housing Units
• Assisted Living Facilities
• Hospitality Guest Room Applications
• Office Building Interior Spaces

Why Choose Schlage Residential Quality?

Schlage Residential FC21 locks deliver professional-grade reliability with stainless steel construction and ANSI/BHMA Grade 2 certification for demanding residential applications. The 10 Year manufacturer warranty provides added confidence and long-term protection. Engineered with dual-function capability and emergency access features, this lock combines elegant glass knob styling with dependable mechanical performance essential for residential security and privacy needs.
