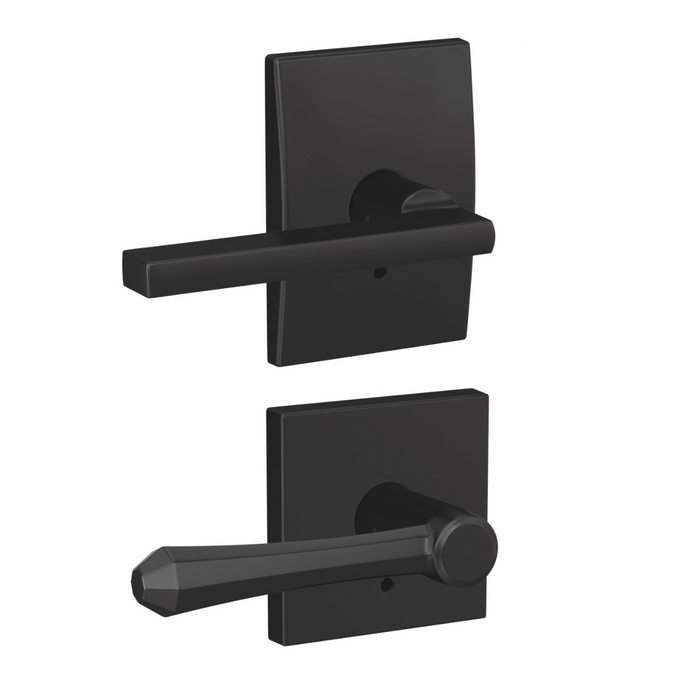

Schlage Residential FC21 Latitude x Dempsey Lever Passage and Privacy Cylindrical Lock

Schlage Residential FC21 Latitude x Dempsey Lever Passage/Privacy Cylindrical Lock

Dual-Function Residential Lock with Easy Installation

The Schlage Residential FC21 combines passage and privacy functions in a single cylindrical lock featuring Latitude exterior lever and Dempsey interior lever designs. This Grade 2 certified lock accommodates door thicknesses from 1-3/8" to 1-3/4" with dual backset options for 2-3/8" or 2-3/4" installations. The lock operates as passage by default and converts to privacy function with the interior pushbutton, providing versatility for residential applications.

Professional Features & Benefits

• Door Thickness Compatibility: Accommodates 1-3/8" to 1-3/4" doors with dual backset latches fitting either 2-3/8" or 2-3/4" backsets for flexible installation options.
• Dual Function Operation: Passage is default function with privacy conversion via interior pushbutton, and emergency unlock capability from outside with small tool.
• Grade 2 Certification: ANSI/BHMA A156.2-2017 Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AA certified for reliable residential performance.
• Professional Installation: Easy 3-step installation requiring only a screwdriver, with universal latch and dual backset compatibility for simplified setup.
• Stainless Steel Construction: Durable stainless steel substrate provides long-lasting performance and corrosion resistance for residential applications.
• Complete Hardware Package: Includes 1" x 2-1/4" latch with 1/4" radius corner faceplate, 1-5/8" x 2-1/4" radius corner full lip strike, and circular drive-in latch.
• Fire Door Compatible: Available UL Listed for 90 minute fire door applications when required for code compliance.
• 10 Year Warranty: Comprehensive 10 year manufacturer warranty provides long-term protection and confidence.

Standard Features

Certification:ANSI/BHMA A156.2-2017 Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 90 minute fire door
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4", and determine appropriate backset (2-3/8" or 2-3/4").
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for cylindrical lock installation.
3. Prepare door by drilling required holes per manufacturer specifications, ensuring proper alignment for smooth lever operation.
4. Install the dual backset latch assembly and secure the lock mechanism to door per manufacturer torque specifications.
5. Adjust lever alignment and test both passage and privacy functions, verifying pushbutton operation and emergency unlock capability.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Interior Doors
• Bedroom and Bathroom Privacy Applications
• Home Office and Study Rooms
• Multi-Family Housing Units
• Assisted Living Facilities
• Hospitality Guest Room Applications
• Educational Facility Residential Areas

Why Choose Schlage Residential Quality?

Schlage Residential FC21 locks deliver professional-grade reliability with stainless steel construction and Grade 2 ANSI/BHMA certification for demanding residential applications. The 10 year manufacturer warranty provides long-term protection and confidence. Engineered with dual-function capability and easy 3-step installation, this lock combines convenience with dependable performance for residential door hardware needs.
