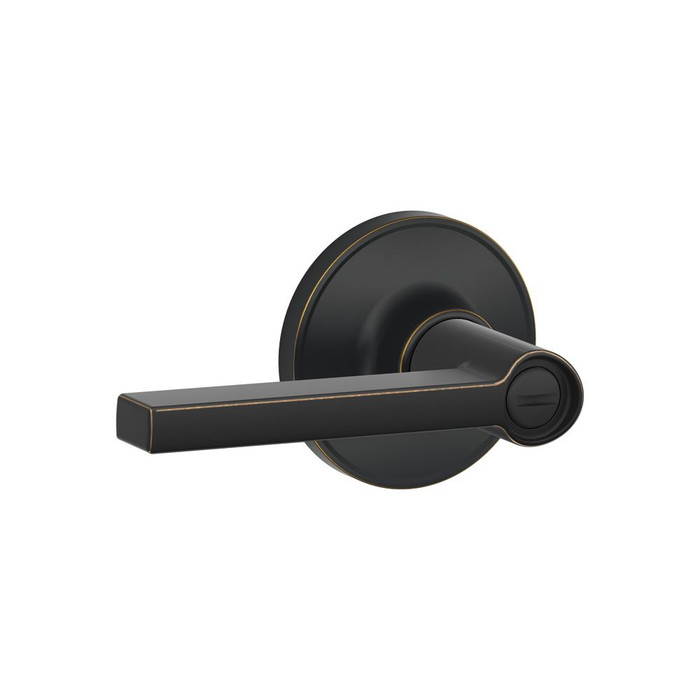

SCHLAGE J SERIES RESIDENTIALS LEVERS
Schlage's F Series designs range from bold to classic to match any residential décor. Plus, it features an easy 3-step installation, only a screwdriver needed.
SCHLAGE J40 STANDARD FEATURES:
Certification:ANSI/BHMA A156.2-2011 Commercial Grade 3
Available option for UL Listed for 3 hour fire door (J10 and J54 functions only
Latch: Dual Option: 1" x 2-1/4", 1/4" round faceplate and drive-in
Triple Option: 1" x 2-1/4", square corner and 1/4" round faceplate, drive-in latch (J54)
Strike: 1-5/8" x 2-1/4" radius corner, full lip, no box
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section
Manufacturer Resources
Product Specs
- Series:
- J Series
- Subcategory:
- Bored Locksets
- Grade:
- Grade 2
- Standard Strike:
- 10-101: Round Corner Full Lip
- Standard Latch:
- 16-254: Spring Latch, Dual Option (Round, Drive-in)
- Keyed Function:
- Non-Keyed
- ANSI/BHMA:
- F77
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Keyed:
- No
- Electronic:
- No
- Commercial/Residential:
- Residential
- Function Description:
- Turn-button locking. Can be opened from outside by turning outside turn mechanism: From interior, turning inside turn-button releases inside lever
- Lock Type:
- Cylindrical
- Lock Function:
- Privacy/Bed/Bath
- Product Type:
- Bored Locksets
- Handle Design:
- Solstice Lever
- Handle Type:
- Lever
- Lever/Knob Design:
- Solstice Lever
- Product Attribute:
- Cylindrical Locks
- Tags:
- j40 sol 619, schlage j40 sol
- Product Model:
- J40
- Product Function:
- Privacy/Bed/Bath
- Door Hand Direction:
- Non-Handed
- Door Thickness Range:
- 1-3/8" to 1-3/4"
- Product Category:
- Mechanical Locks
Schlage Residential J40 SOL 619 – Frequently Asked Questions
1) What is the Schlage J40 privacy lock designed for?
The J40 is a privacy lock designed for bedrooms and bathrooms. It locks from the inside only and can be unlocked from the outside with an emergency key or tool.
2) What door thickness does this lock accommodate?
Standard Schlage locks accommodate doors from 1-3/8" to 1-3/4" thick. Verify your door thickness before installation to ensure proper fit.
3) Is this lock handed or reversible?
Schlage lever locks are typically reversible for both right and left-hand doors. The latch can be adjusted during installation for proper operation.
4) What backset does this lock use?
This lock includes a 16254 latch which is typically adjustable for both 2-3/8" and 2-3/4" backsets. Check your door prep before installation.
5) What grade is this lock rated?
Schlage J-series locks are typically Grade 2 commercial quality. They provide enhanced durability compared to residential Grade 3 locks.
6) Can I rekey this lock to match existing keys?
Yes, Schlage locks can be rekeyed by a locksmith to match your existing key system. The privacy function uses an emergency unlock feature rather than regular keyed operation.
7) What tools are needed for installation?
Basic installation requires a screwdriver and possibly a drill with hole saw bits if new door prep is needed. Follow manufacturer template for precise measurements.
8) How do I adjust the latch if the door doesn't close properly?
Check strike plate alignment first. The 10101 strike plate may need adjustment or the door frame may require minor modifications for proper latch engagement.
9) Are replacement parts available for this lock?
Yes, Schlage offers replacement parts for J-series locks. Common service parts include springs, levers, and internal mechanisms through authorized distributors.
10) What other Schlage series offer similar privacy functions?
Schlage offers privacy locks in multiple series including residential F-series and commercial AL-series. Each series has different grade ratings and style options.
11) Will this lock work on hollow core doors?
Yes, but ensure the door has adequate structure around the bore holes. Some hollow doors may need reinforcement plates for proper lock installation and operation.
