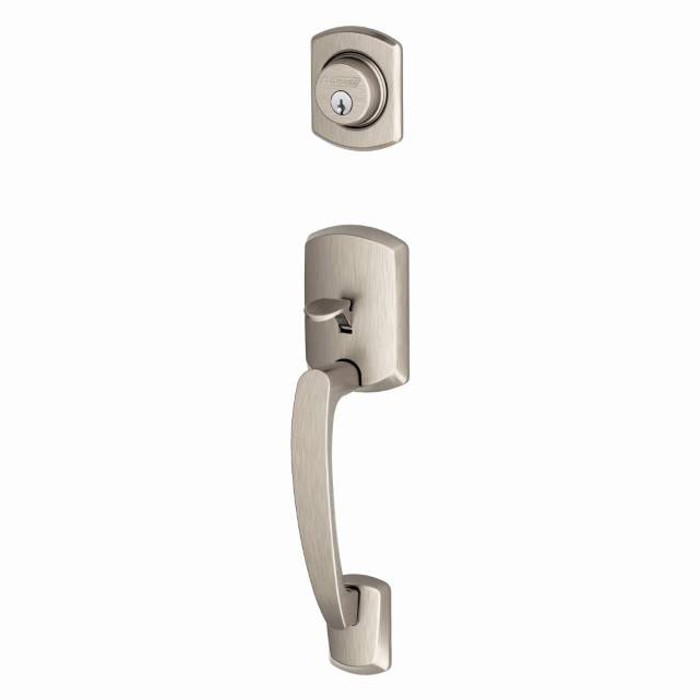

Schlage Residential F58 Greenwich Exterior Active Handleset with C Keyway and Grade 2 Certification

Schlage Residential F58 Greenwich Exterior Active Handleset with C Keyway and Grade 2 Certification

Professional Residential Entrance Hardware Solution

The Schlage Residential F58 Greenwich exterior active handleset delivers Grade 2 certified performance for residential entrance applications. This handleset features a 5-pin C keyway cylinder with keyed different operation, universal backset compatibility for 2-3/8" or 2-3/4" installations, and fits door thicknesses from 1-3/8" to 1-7/8". The integrated strike and reinforcer with 3" screws provides enhanced security mounting.

Professional Features & Benefits

• Universal Backset Compatibility: Fits either 2-3/8" or 2-3/4" backsets for flexible installation on various door preparations.
• Door Thickness Range: Accommodates doors from 1-3/8" to 1-7/8" thick for broad residential compatibility.
• Grade 2 Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1 and A156.40-2015 Residential Grade AAA certified for reliable performance.
• Adjustable Throughbolt Design: Throughbolt adjusts up and down 1-1/2" to accommodate pre-existing hole patterns for retrofit applications.
• Integrated Security Reinforcement: Strike and reinforcer with 3" screws provide enhanced mounting strength and security.
• 5-Pin C Keyway Cylinder: Conventional cylinder with C keyway section, keyed different for individual security.
• Complete Strike Package: Includes radius corner deadbolt strike (10-116) and radius round corner full lip strike (10-027) for comprehensive installation.
• 10 Year Manufacturer Warranty: Extended warranty coverage provides confidence and long-term protection.

Standard Features

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F59, F60, and FE285 only)
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw spring latch
Deadbolt: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike: Part 10-269, includes: 1-1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Backset: Universal backset latch and deadbolt, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range: 1-3/8" – 1-7/8"
Keys: Two cut keys per lock, 5-pin, C section
Reinforcement: Integrated strike and reinforcer with 3" screws
Adjustable Throughbolt: Adjustable throughbolt can move up and down 1-1/2" to fit a variety of pre-existing holes

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-7/8", backset compatibility for 2-3/8" or 2-3/4", and proper handing orientation.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, utilizing the adjustable throughbolt range of 1-1/2" for existing hole patterns.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the dual option latch system.
4. Install the integrated strike and reinforcer using the provided 3" screws to ensure proper security mounting and alignment.
5. Mount the exterior handleset and adjust the universal backset latch for proper alignment and smooth operation with the keyed cylinder.
6. Test handleset operation including grip function, cylinder operation with provided keys, and verify proper latching throughout the full range of motion. Refer to manufacturer documentation for complete F Series installation details and pairing instructions with F59 interior components.

Professional Applications

• Residential Front Door Entrances
• Single-Family Home Security
• Townhouse and Condominium Units
• Apartment Building Individual Units
• Residential Renovation Projects
• Multi-Family Housing Developments
• Custom Home Construction

Why Choose Schlage Residential Quality?

Schlage Residential F58 handlesets deliver professional-grade reliability with zinc and steel construction certified to ANSI/BHMA Grade 2 standards for demanding residential applications. The 10 Year manufacturer warranty provides extended protection and confidence in long-term performance. Engineered with adjustable throughbolt design and universal backset compatibility, this handleset accommodates various installation requirements while maintaining dependable entrance security.
