Schlage Residential F59 Delfayo Lever Interior Pack Non-Keyed Dummy Function

Schlage Residential F59 Delfayo Lever Interior Pack Non-Keyed Dummy Function

Professional Interior Trim Solution for Residential Applications

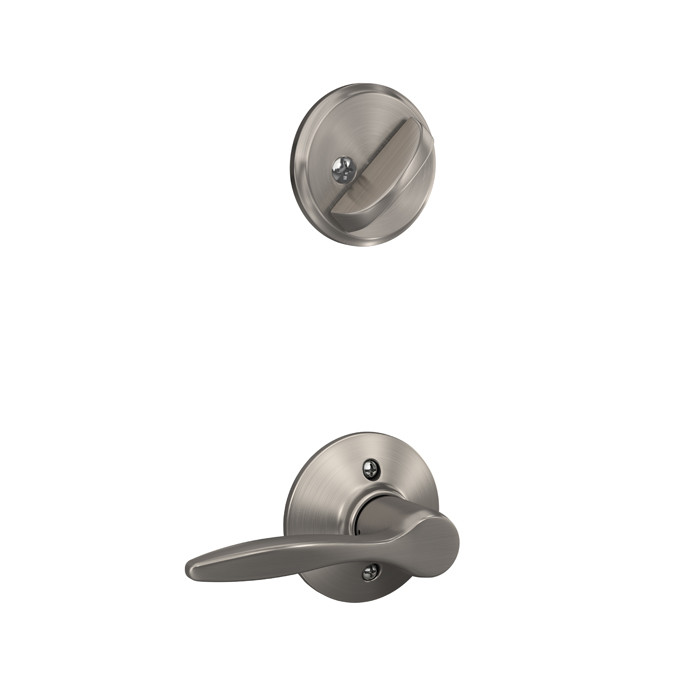

The Schlage Residential F59 Delfayo Lever Interior Pack provides the interior components for a complete handleset installation with elegant Delfayo lever design. This non-keyed dummy function pack includes inside trim, deadbolt thumbturn, latches, strikes and screws for F60 applications, designed to pair with an F58 exterior handleset for complete functionality. Engineered for 1-5/8" to 1-3/4" door thickness with universal 2-3/8" or 2-3/4" backset compatibility and ANSI/BHMA Grade 2 certification for reliable residential performance.

Professional Features & Benefits

• Door Thickness Compatibility: Accommodates 1-5/8" to 1-3/4" doors with universal backset fitting for 2-3/8" or 2-3/4" applications.
• Complete Interior Components: Includes inside trim, deadbolt thumbturn, latches, strikes and screws for F60 handleset completion when paired with F58 exterior components.
• Professional Grade Construction: Zinc and steel substrate construction with ANSI/BHMA Grade 2 certification for dependable residential performance.
• Elegant Delfayo Design: Features sophisticated Delfayo lever styling that complements Schlage F Series design aesthetics from bold to classic residential décor.
• Easy Installation System: Simple 3-step installation process requiring only a screwdriver with adjustable throughbolt that moves up and down 1-1/2" to fit pre-existing holes.
• Integrated Hardware Package: Includes dual option latch (12-322) with round corner and drive-in options, plus round corner full lip strike set (10-115) for complete installation.
• Fire Door Compatible: Available UL Listed for 3-hour fire door applications when used with compatible F59 configurations.

Standard Features

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F59, F60, and FE285 only)
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw spring latch
Deadbolt: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike: Part 10-269, includes: 1-1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Backset: Universal backset latch and deadbolt, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range: 1-3/8" – 1-7/8"
Keys: Two cut keys per lock, 5-pin, C section
Reinforcement: Integrated strike and reinforcer with 3" screws
Adjustable Throughbolt: Adjustable throughbolt can move up and down 1-1/2" to fit a variety of pre-existing holes

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-5/8" and 1-3/4", and confirm 2-3/8" or 2-3/4" backset compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces, utilizing the adjustable throughbolt system for pre-existing hole alignment.
3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for the dual option latch system.
4. Install all mounting hardware including the integrated strike and reinforcer with 3" screws, securing the interior trim components per manufacturer specifications.
5. Adjust operational components including deadbolt thumbturn for proper alignment and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Entry Door Systems
• Multi-Family Housing Units
• Apartment and Condominium Complexes
• Single-Family Home Installations
• Residential Renovation Projects
• Property Management Upgrades
• Custom Home Construction

Why Choose Schlage Residential Quality?

Schlage Residential F Series products deliver professional-grade reliability with zinc and steel construction rated to ANSI/BHMA Grade 2 standards for demanding residential applications. The F59 interior pack features UL Listed compatibility for 3-hour fire door applications and integrated reinforcement with 3" screws for enhanced security. Engineered with adjustable throughbolt technology and universal backset compatibility for versatile installation requirements where dependable performance is essential.
