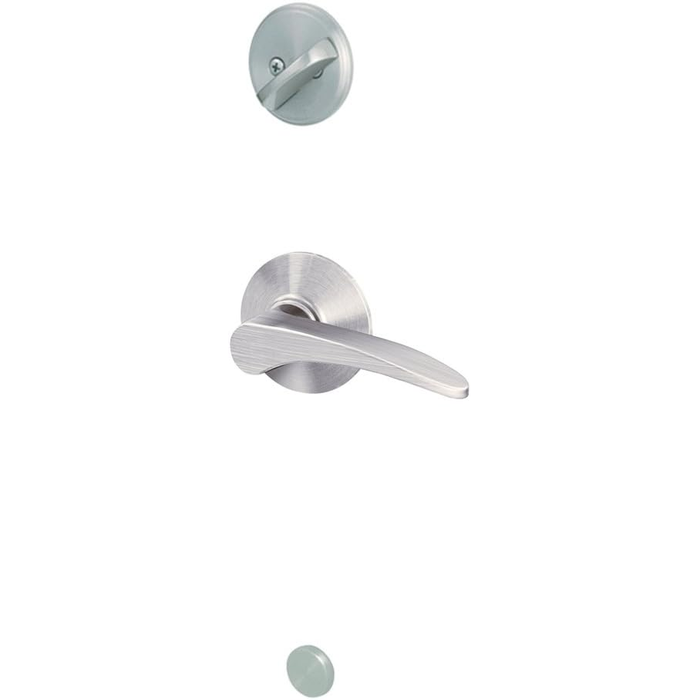

Schlage Residential F59 Manhattan Lever Interior Pack Single Cylinder Entrance Lock

Schlage Residential F59 Manhattan Lever Interior Pack Single Cylinder Entrance Lock

Professional Interior Trim Solution for Complete Handleset Systems

The Schlage Residential F59 Manhattan Lever Interior Pack provides the interior components needed to complete your F Series handleset installation. This Grade 2 certified interior pack features the elegant Manhattan lever design with thumbturn deadbolt operation, fitting doors from 1-5/8" to 1-3/4" thick. Designed to pair with F58 exterior handlesets, this pack includes all interior trim, latches, strikes, and mounting hardware for professional residential entrance door applications.

Professional Features & Benefits

• Door Thickness Compatibility: Accommodates 1-5/8" to 1-3/4" doors with universal 2-3/8" or 2-3/4" backset options for versatile installation.
• Complete Interior Components: Includes Manhattan lever trim, deadbolt thumbturn, latches, strikes, and all necessary mounting hardware for complete interior functionality.
• Professional Grade Construction: Zinc and steel construction with integrated strike reinforcement and 3" screws for enhanced security and durability.
• Easy Installation Design: Features 3-step installation process requiring only a screwdriver, with adjustable throughbolt that moves up and down 1-1/2" to fit existing holes.
• BHMA Grade 2 Certification: Meets ANSI/BHMA A156.36-2016 Commercial Grade 1 and A156.40-2015 Residential Grade AAA standards for reliable performance.
• Universal Latch System: Standard 12-322 dual option latch with 1" x 2-1/4" faceplate, 1/4" radius corners, and 1/2" throw for secure latching.
• Complete Strike Package: Includes round corner full lip strike set (10-027 + 10-116) with 1-1/4" radius corner deadbolt strike for proper door frame preparation.
• F Series Compatibility: Designed to pair with F58 exterior handlesets to create complete F Series entrance door systems with coordinated styling.

Standard Features

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F59, F60, and FE285 only)
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw spring latch
Deadbolt: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike: Part 10-269, includes: 1-1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Backset: Universal backset latch and deadbolt, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range: 1-3/8" – 1-7/8"
Keys: Two cut keys per lock, 5-pin, C section
Reinforcement: Integrated strike and reinforcer with 3" screws
Adjustable Throughbolt: Adjustable throughbolt can move up and down 1-1/2" to fit a variety of pre-existing holes

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-5/8" and 1-3/4", and confirm 2-3/8" or 2-3/4" backset compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door interior surface, utilizing the adjustable throughbolt range of 1-1/2" for existing hole alignment.
3. Prepare door by drilling required holes for the 1" x 2-1/4" latch and deadbolt components with 1/4" radius corner faceplates.
4. Install the integrated strike reinforcement with provided 3" screws and mount the round corner full lip strike set (10-027 + 10-116) in the door frame.
5. Mount the Manhattan lever interior trim and deadbolt thumbturn assembly, adjusting the universal backset mechanism for proper alignment and smooth operation.
6. Test lever operation and deadbolt thumbturn function to verify proper latching and smooth operation throughout the full range of motion. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Entrance Doors
• Single-Family Home Front Entries
• Townhouse and Condominium Units
• Apartment Building Individual Units
• Multi-Family Residential Properties
• Custom Home Construction Projects
• Residential Door Hardware Upgrades

Why Choose Schlage Residential Quality?

Schlage Residential F Series products deliver professional-grade reliability with zinc and steel construction meeting ANSI/BHMA Grade 2 certification standards. The integrated strike reinforcement with 3" screws and universal backset design provide enhanced security and installation flexibility for demanding residential applications. Engineered for dependable performance with the elegant Manhattan lever styling that complements any residential décor.
