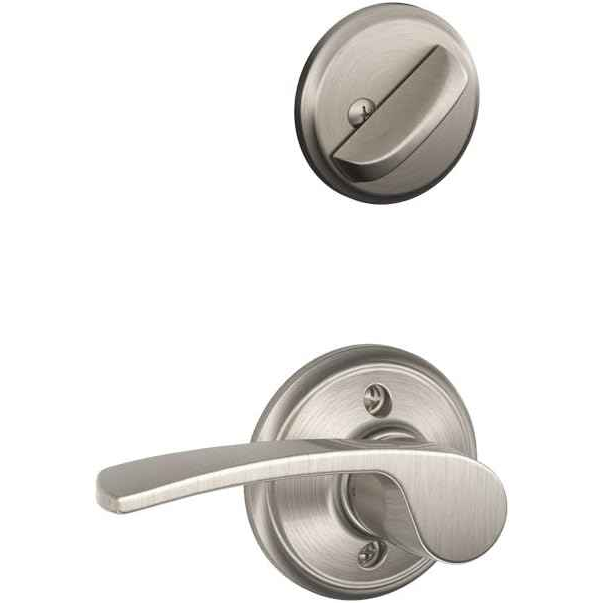

Schlage Residential F59 Merano Lever Interior Pack Single Cylinder Entrance Lock

Schlage Residential F59 Merano Lever Interior Pack Single Cylinder Entrance Lock

Professional Interior Trim Solution for Complete Handleset Systems

The Schlage Residential F59 Merano Lever Interior Pack provides the interior components needed to complete your F Series handleset installation. This Grade 2 certified interior pack features a 1" deadbolt with thumbturn, spring latch mechanism, and elegant Merano lever design. Compatible with door thickness range of 1-5/8" to 1-3/4" and universal 2-3/8" or 2-3/4" backset configurations. Constructed with zinc and steel materials for residential durability and ANSI/BHMA A156.36-2016 Commercial Grade 1 and A156.40-2015 Residential Grade AAA certification.

Professional Features & Benefits

• Universal Backset Compatibility: Fits either 2-3/8" or 2-3/4" backsets for flexible installation in various door preparations.
• Door Thickness Range: Accommodates doors from 1-5/8" to 1-3/4" thick with adjustable throughbolt system.
• Adjustable Throughbolt System: Throughbolt can move up and down 1-1/2" to fit a variety of pre-existing holes for retrofit applications.
• Dual Certification Standards: ANSI/BHMA A156.36-2016 Commercial Grade 1 and A156.40-2015 Residential Grade AAA for versatile applications.
• Complete Latch and Strike System: Includes 1" x 2-1/4" latch with 1/4" radius corner faceplate and comprehensive strike package (Part 10-269).
• Professional Grade Construction: Zinc and steel substrate materials provide durability for residential entrance applications.
• Fire Door Compatibility: Available UL Listed for 3-hour fire door applications (F59 model) for code compliance requirements.
• Easy Installation Design: Features 3-step installation process requiring only a screwdriver for simplified professional installation.

Standard Features

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F59, F60, and FE285 only)
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw spring latch
Deadbolt: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike: Part 10-269, includes: 1-1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Backset: Universal backset latch and deadbolt, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range: 1-3/8" – 1-7/8"
Keys: Two cut keys per lock, 5-pin, C section
Reinforcement: Integrated strike and reinforcer with 3" screws
Adjustable Throughbolt: Adjustable throughbolt can move up and down 1-1/2" to fit a variety of pre-existing holes

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness range of 1-5/8" to 1-3/4" and backset compatibility for 2-3/8" or 2-3/4" configurations.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces, utilizing the adjustable throughbolt system for pre-existing hole alignment.
3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for the dual option latch system.
4. Install all mounting hardware including the integrated strike and reinforcer with 3" screws per manufacturer torque specifications.
5. Adjust operational components including deadbolt thumbturn and spring latch for proper alignment and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Entrance Door Systems
• Multi-Family Housing Units
• Condominium and Townhome Entrances
• Single-Family Home Front Doors
• Residential Security Upgrades
• Property Management Installations
• Home Builder Standard Packages

Why Choose Schlage Residential Quality?

Schlage Residential F Series products deliver professional-grade reliability with zinc and steel construction certified to both Commercial Grade 1 and Residential Grade AAA standards. The F59 interior pack features integrated reinforcement with 3" screws and adjustable throughbolt system for versatile installation compatibility. Engineered for demanding residential applications where dependable entrance security and elegant design are essential.
