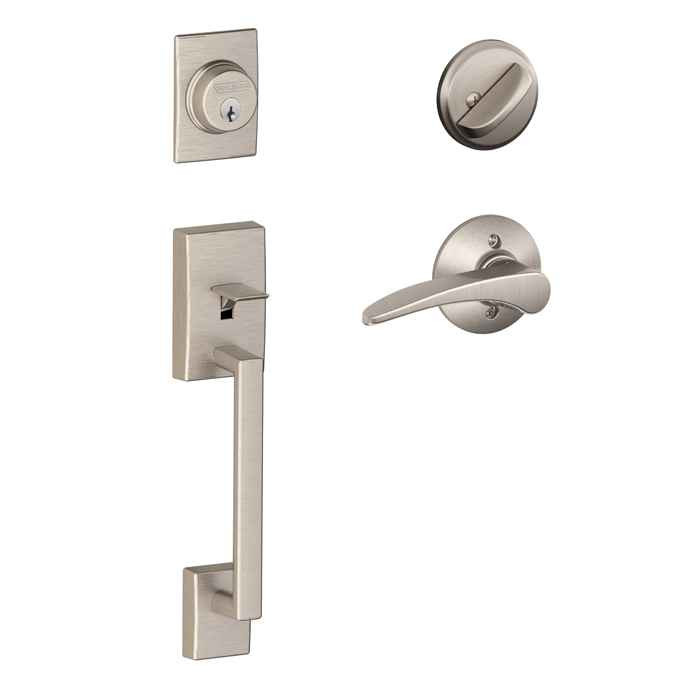

Schlage Residential F60 Manhattan Single Cylinder Keyed Entry Handleset with Century Trim and Accent Lever

Schlage Residential F60 Manhattan Single Cylinder Keyed Entry Handleset with Century Trim and Accent Lever

Premium Residential Security with Classic Design

The Schlage Residential F60 Manhattan handleset combines professional-grade security with elegant residential styling. This single cylinder keyed entry handleset features adjustable 2-3/8" or 2-3/4" backset compatibility and accommodates door thickness from 1-3/8" to 1-3/4". Constructed with durable zinc and steel materials, the F60 exceeds BHMA Grade 1 certification criteria while offering reversible left or right handing for versatile installation.

Professional Features & Benefits

• Adjustable Door Compatibility: Accommodates door thickness from 1-3/8" to 1-3/4" with adjustable 2-3/8" or 2-3/4" backset for versatile residential applications.
• BHMA Grade 1 Performance: Exceeds criteria for BHMA Grade 1 certification ensuring superior durability and security performance for residential entrance applications.
• Durable Construction: Zinc and steel construction with Manhattan lever design provides lasting reliability and elegant appearance for demanding residential use.
• Easy Installation Design: Features 3-step installation process requiring only a screwdriver, with adjustable throughbolt allowing bottom bolt to slide for simple setup.
• Versatile Handing: Reversible left or right hand configuration with non-handed design allows installation flexibility without additional hardware.
• Complete Latch Options: Includes dual option latch with round corner and drive-in configurations plus round corner full lip strike set for comprehensive installation.
• 5-Pin Schlage C Cylinder: Conventional cylinder system with 5-pin Schlage C keyway provides reliable keyed entry security with proven lock technology.
• Manufacturer Warranty: 10 Year warranty coverage plus limited lifetime mechanical and finish warranty for added confidence and protection.

Standard Features

Schlage's F Series designs range from bold to classic to match any residential décor.  Plus, it features an easy 3-step installation, only a screwdriver needed.



Keyed Entry (Single Cylinder) Function: This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.

• Exceeds criteria for BHMA Grade 1 certification
• Durable construction ensuring lasting use
• Installs on standard door preparations
• Schlage offers a limited lifetime mechanical and finish warranty
• Adjustable throughbolt allows the bottom bolt to slide up and down for simple installation

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1", 7/8"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible Left or Right
• Latch Faceplate: Round Corner, Square Corner, and Drive-In
• Cylinder: 5 Pin Schlage C
• Material: Zinc
• Grip Center to Center: 8-3/8", 9-7/8"
• Overall Height: 17-13/16"
• Handle Height: 8-1/2"
• Handle Projection: 2-1/4"
• Trim Height: 11-7/8"
• Trim Width: 2-1/2"
• Interior Trim Height: 2-3/4"
• Interior Trim Width: 2-3/4"
• Interior Handle Height: 2-1/16"
• Interior Handle Width: 2-1/16"
• Interior Handle Projection: 2-5/16"

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4", backset adjustment for 2-3/8" or 2-3/4", and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately including 2-1/8" cross bore and 1" or 7/8" edge bore on door surfaces.
3. Prepare door by drilling required holes including cross bore and edge bore as specified in manufacturer instructions for proper handleset installation.
4. Install all mounting hardware including adjustable throughbolt and secure the handleset to door per manufacturer torque specifications with bottom bolt adjustment as needed.
5. Adjust operational components including thumbpiece, interior lever, and deadbolt mechanism for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test handleset operation including key function, thumbturn operation, and latch retraction to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Single Family Residential Homes
• Townhomes and Condominiums
• Apartment Building Unit Entrances
• Small Office and Professional Suites
• Residential Rental Properties
• Home Office and Studio Entrances
• Multi-Generational Housing Units

Why Choose Schlage Residential Quality?

Schlage Residential F60 handlesets deliver professional-grade reliability with zinc and steel construction exceeding BHMA Grade 1 certification criteria. The 10 Year warranty plus limited lifetime mechanical and finish warranty provide comprehensive protection for residential security applications. Engineered for demanding residential use where dependable entrance security and elegant design are essential.

Decorative handleset combining a keyed entry lever with a single-cylinder deadbolt in one elegant assembly. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || Installation Guides: F60/F62/F93 Handleset Installation Instructions (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/Schlage_F60_F62_F93_IS.pdf) | F60/F62/F93 Handleset Installation Instructions (legacy) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P515-782-0310b.pdf) | Handleset Drive-In Latch & Deadbolt Installation Instructions (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P515-360.pdf) || Door Prep Templates: F60/F62/F93 Adjustable Through-Bolt Door Prep Template (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P513-593-a.pdf) || FAQs & Support: Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html)
