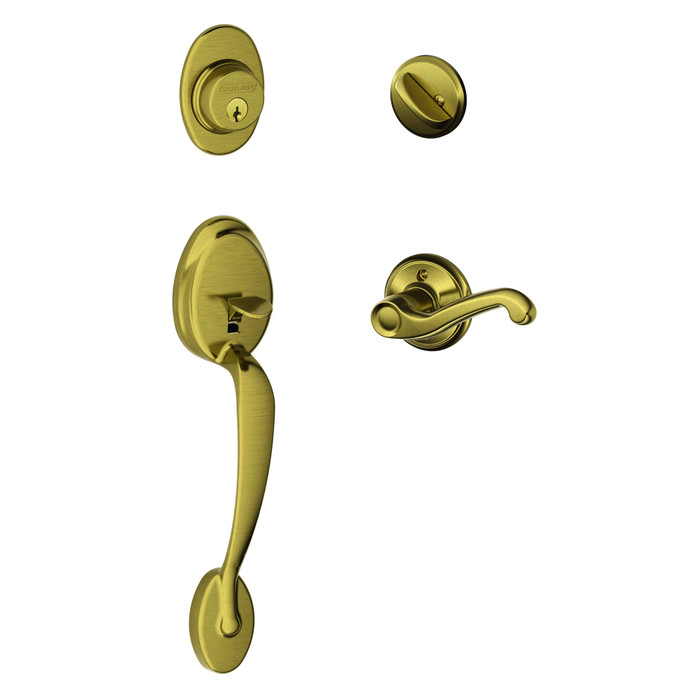

Schlage Residential F60 Plymouth Single Cylinder Keyed Entry Handleset with Flair Lever

Schlage Residential F60 Plymouth Single Cylinder Keyed Entry Handleset with Flair Lever

Premium Residential Security with Classic Design

The Schlage Residential F60 Plymouth handleset combines professional-grade security with elegant residential styling. This single cylinder keyed entry handleset features adjustable 2-3/8" or 2-3/4" backset, accommodates door thickness from 1-3/8" to 1-3/4", and includes a 5-pin Schlage C cylinder for reliable security. The zinc construction with Plymouth trim design and Flair lever provides both durability and aesthetic appeal for residential entrance applications.

Professional Features & Benefits

• Adjustable Door Compatibility: Fits door thickness from 1-3/8" to 1-3/4" with adjustable 2-3/8" or 2-3/4" backset for versatile installation options.
• BHMA Grade 1 Performance: Exceeds criteria for BHMA Grade 1 certification ensuring superior durability and security performance.
• Professional Security Features: 5-pin Schlage C cylinder with single cylinder keyed entry function provides reliable access control.
• Durable Construction: Zinc and steel construction engineered for lasting residential use and reliable operation.
• Easy Installation Design: Adjustable throughbolt allows bottom bolt to slide up and down for simple installation with standard door preparations.
• Reversible Operation: Non-handed design accommodates both left and right door applications without additional hardware.
• Complete Hardware Package: Includes dual option latch (round corner and drive-in) and round corner full lip strike set for complete installation.
• Manufacturer Warranty: 10 Year warranty plus limited lifetime mechanical and finish warranty for added confidence and protection.

Standard Features

Schlage's F Series designs range from bold to classic to match any residential décor.  Plus, it features an easy 3-step installation, only a screwdriver needed.



Keyed Entry (Single Cylinder) Function: This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.

• Exceeds criteria for BHMA Grade 1 certification
• Durable construction ensuring lasting use
• Installs on standard door preparations
• Schlage offers a limited lifetime mechanical and finish warranty
• Adjustable throughbolt allows the bottom bolt to slide up and down for simple installation

Specifications:

• Backset: Adjustable 2-3/8" or 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 1", 7/8"
• Door Thickness: 1-3/8" to 1-3/4"
• Handing: Reversible Left or Right
• Latch Faceplate: Round Corner, Square Corner, and Drive-In
• Cylinder: 5 Pin Schlage C
• Material: Zinc
• Grip Center to Center: 8-3/8", 9-7/8"
• Overall Height: 17-13/16"
• Handle Height: 8-1/2"
• Handle Projection: 2-1/4"
• Trim Height: 11-7/8"
• Trim Width: 2-1/2"
• Interior Trim Height: 2-3/4"
• Interior Trim Width: 2-3/4"
• Interior Handle Height: 2-1/16"
• Interior Handle Width: 2-1/16"
• Interior Handle Projection: 2-5/16"

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/8" to 1-3/4"), backset adjustment (2-3/8" or 2-3/4"), and cross bore (2-1/8") requirements.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces including edge bore (1" or 7/8") positioning.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the dual option latch system.
4. Install the adjustable throughbolt system and secure the handleset to door per manufacturer torque specifications, adjusting the bottom bolt position as needed.
5. Install the 5-pin Schlage C cylinder and configure the thumbturn mechanism for proper deadbolt operation from interior side.
6. Test handleset operation including key function, thumbpiece latch retraction, interior lever operation, and deadbolt engagement to verify proper function throughout full range of motion. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Front Door Entry Systems
• Single Family Home Security
• Townhouse and Condominium Entrances
• Apartment Unit Entry Doors
• Home Office and Study Entrances
• Multi-Generational Housing Applications
• Residential Renovation and Upgrade Projects

Why Choose Schlage Residential Quality?

Schlage Residential F60 handlesets deliver professional-grade reliability with zinc and steel construction that exceeds BHMA Grade 1 certification criteria. The 10 Year warranty plus limited lifetime mechanical and finish warranty provide exceptional protection and confidence. Engineered for demanding residential applications where dependable security and elegant design are essential.

Decorative handleset combining a keyed entry lever with a single-cylinder deadbolt in one elegant assembly. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || Installation Guides: F60/F62/F93 Handleset Installation Instructions (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/Schlage_F60_F62_F93_IS.pdf) | F60/F62/F93 Handleset Installation Instructions (legacy) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P515-782-0310b.pdf) | Handleset Drive-In Latch & Deadbolt Installation Instructions (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P515-360.pdf) || Door Prep Templates: F60/F62/F93 Adjustable Through-Bolt Door Prep Template (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P513-593-a.pdf) || FAQs & Support: Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html)
