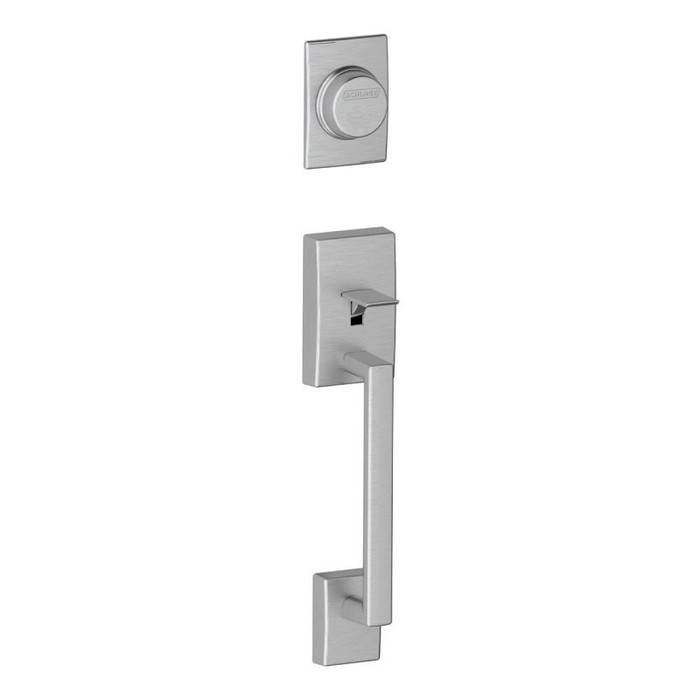

Schlage Residential F92 Century Dummy Exterior Handleset with Non-Handed Installation

Schlage Residential F92 Century Dummy Exterior Handleset with Non-Handed Installation

Professional Residential Door Hardware Solution

The Schlage Residential F92 Century Dummy Exterior Handleset delivers professional-grade residential door hardware with elegant Century styling. This non-keyed dummy handleset features an outside inactive grip and dummy deadbolt designed for doors ranging from 1-3/8" to 1-3/4" thickness. Constructed with zinc and steel materials and certified to ANSI/BHMA Grade 2 standards, this handleset provides reliable performance for residential applications requiring decorative hardware without locking functionality.

Professional Features & Benefits

• Door Thickness Compatibility: Accommodates 1-3/8" to 1-3/4" door thickness range for versatile residential installation options.
• Easy Installation Design: Features simple 3-step installation process requiring only a screwdriver for quick and efficient setup.
• Universal Backset Configuration: Fits either 2-3/8" or 2-3/4" backsets with adjustable throughbolt that moves up and down 1-1/2" to accommodate pre-existing holes.
• Professional Grade Construction: Zinc and steel construction with ANSI/BHMA Grade 2 certification ensures durability for residential applications.
• Century Design Styling: Classic Century trim design complements traditional and contemporary residential décor styles.
• Non-Handed Installation: Non-handed design allows installation on either left or right-hand doors without special ordering.
• Complete System Compatibility: Designed to pair with F94 interior handleset for complete inactive handleset functionality.
• Integrated Hardware Components: Includes 1" x 2-1/4" latch with 1/4" radius corner faceplate and integrated strike reinforcement with 3" screws.

Standard Features

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F59, F60, and FE285 only)
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw spring latch
Deadbolt: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike: Part 10-269, includes: 1-1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Backset: Universal backset latch and deadbolt, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range: 1-3/8" – 1-7/8"
Keys: Two cut keys per lock, 5-pin, C section
Reinforcement: Integrated strike and reinforcer with 3" screws
Adjustable Throughbolt: Adjustable throughbolt can move up and down 1-1/2" to fit a variety of pre-existing holes

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4", and confirm 2-3/8" or 2-3/4" backset compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces, taking advantage of the adjustable throughbolt range of 1-1/2" for existing hole alignment.
3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for the dual option latch system.
4. Install mounting hardware and secure the handleset to door using the integrated strike reinforcement with 3" screws per manufacturer specifications.
5. Adjust throughbolt position as needed within the 1-1/2" range for proper alignment and secure mounting.
6. Test handleset operation to verify proper grip function and alignment. Refer to manufacturer documentation for complete installation details and pairing instructions with F94 interior handleset.

Professional Applications

• Residential Entry Doors
• Single-Family Home Installations
• Multi-Unit Residential Properties
• Townhome and Condominium Projects
• Residential Renovation Projects
• Custom Home Construction
• Property Management Applications

Why Choose Schlage Residential Quality?

Schlage Residential F92 handlesets deliver professional-grade reliability with zinc and steel construction certified to ANSI/BHMA Grade 2 standards for residential applications. The F Series design combines classic Century styling with practical 3-step installation requiring only a screwdriver. Engineered for residential applications where decorative hardware functionality and reliable performance are essential.
