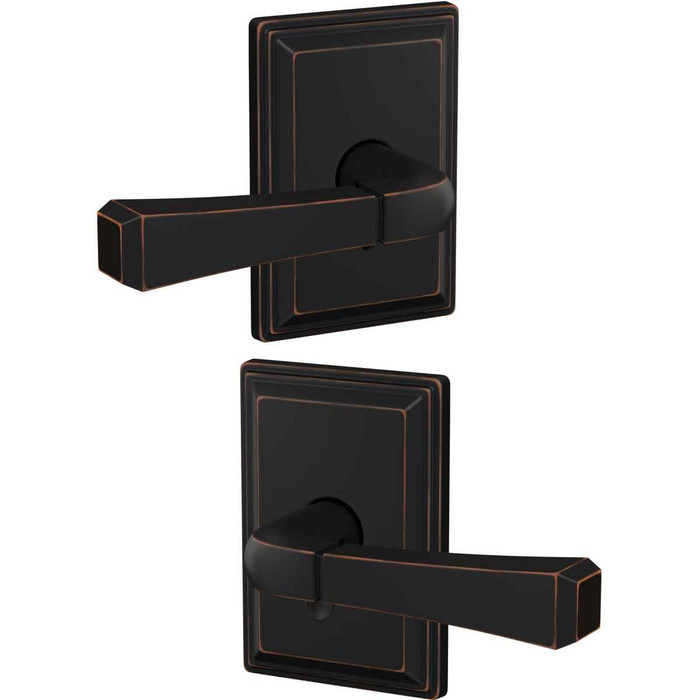

Schlage Residential FC21 Rivington Lever Passage and Privacy Cylindrical Lock - Grade 2 Non-Keyed

Schlage Residential FC21 Rivington Lever Passage/Privacy Cylindrical Lock - Grade 2 Non-Keyed

Versatile Residential Door Hardware with Dual Function Design

The Schlage Residential FC21 Rivington Lever combines passage and privacy functions in a single Grade 2 cylindrical lock designed for residential applications. This non-keyed leversets accommodates door thicknesses from 1-3/8" to 1-3/4" with dual backset options of 2-3/8" or 2-3/4". The lock features ANSI/BHMA A156.2-2017 Grade 2 certification and includes a 1" x 2-1/4" latch with 1/2" throw for reliable operation.

Professional Features & Benefits

• Dual Function Operation: Default passage function with privacy pushbutton conversion on interior side for versatile room applications.
• Door Compatibility: Fits door thicknesses from 1-3/8" to 1-3/4" with dual backset latches for 2-3/8" or 2-3/4" installations.
• Grade 2 Certification: ANSI/BHMA A156.2-2017 Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AAA certified for reliable performance.
• Emergency Access: Privacy function can be opened from outside with small emergency unlock tool for safety and convenience.
• Professional Construction: Stainless steel substrate with 1" housing diameter latch and 1/4" radius corner faceplate for durability.
• Easy Installation: 3-step installation process requiring only a screwdriver with universal latch and drive-in design.
• Fire Door Compatible: Available UL Listed for 90 minute fire door applications when required.
• Manufacturer Warranty: 10 Year warranty coverage for added confidence and protection.

Standard Features

Certification:ANSI/BHMA A156.2-2017 Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 90 minute fire door
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4" and dual backset compatibility for 2-3/8" or 2-3/4" installations.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for cylindrical lock installation.
3. Prepare door by drilling required holes per manufacturer specifications for the universal latch and drive-in components.
4. Install all mounting hardware and secure the leversets to door per manufacturer torque specifications using the 3-step installation process.
5. Adjust operational components for proper alignment, latching, and smooth lever operation throughout the full range of motion.
6. Test device operation to verify proper passage function and privacy pushbutton conversion, including emergency unlock tool access. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Interior Doors
• Bedroom and Bathroom Privacy Applications
• Hall and Closet Passage Functions
• Multi-Family Housing Units
• Apartment and Condominium Properties
• Single-Family Home Interior Hardware
• Residential Renovation Projects

Why Choose Schlage Residential Quality?

Schlage Residential FC21 leversets deliver professional-grade reliability with stainless steel construction and Grade 2 ANSI/BHMA certification for demanding residential applications. The 10 Year warranty provides added confidence and long-term protection. Engineered with dual function versatility and easy 3-step installation, this lock combines dependable performance with residential design flexibility.
