Complete Front Entry Solution for Residential Applications

The Schlage Residential FE285 Camelot Lower Handle Set combines with electronic deadbolts to create a complete front entry system for residential applications. This Grade 2 certified handleset features the elegant Camelot exterior design with Flair interior lever, accommodating door thickness from 1-3/8" to 1-3/4" with dual backset options for 2-3/8" or 2-3/4" installations. The zinc and steel construction provides reliable performance with ANSI/BHMA A156.2-2017 Commercial Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AAA certifications.

Professional Features & Benefits

• Door Thickness Compatibility: Accommodates 1-3/8" to 1-3/4" door thickness range for versatile residential installation options.
• Dual Backset Configuration: Universal latch fits either 2-3/8" or 2-3/4" backsets for flexible door preparation requirements.
• Grade 2 Certification: ANSI/BHMA A156.2-2017 Commercial Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AAA ratings ensure reliable performance and durability.
• Durable Construction: Zinc and steel substrate materials provide long-lasting performance for residential entrance applications.

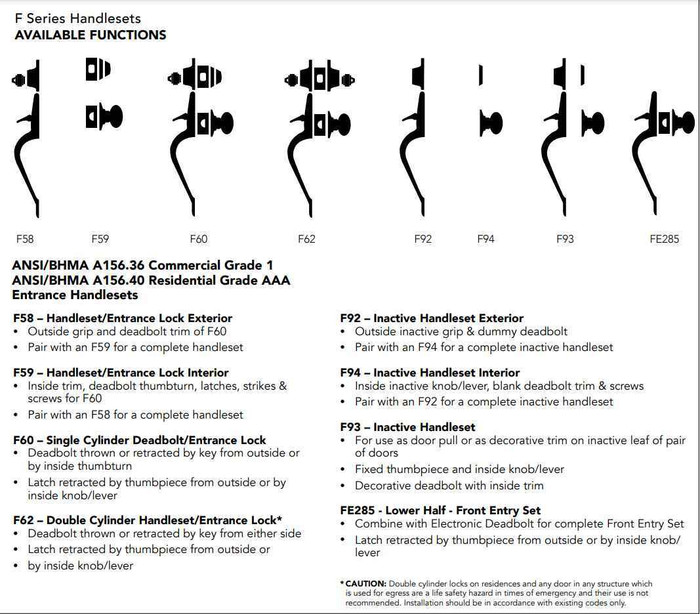

• Complete Entry Integration: Designed to combine with electronic deadbolts for comprehensive front entry security solutions.
• Easy Installation: Features simple 3-step installation process requiring only a screwdriver for convenient setup.
• Fire Door Compatibility: Available UL Listed for 3-hour fire door applications with specific functions (F10, F40 CSV Only, F51A, F80).
• Professional Hardware Components: Includes 1" x 2-1/4" latch with 1/4" radius corner faceplate and 1-5/8" x 2-1/4" radius corner strike plate.

Standard Features

Certification: ANSI/BHMA A156.2-2017 Commercial Grade 2; ANSI/BHMA A156.39-2015 Residential Grade AAA; Available UL Listed for 3-hour fire door (F10, F40 (CSV Only), F51A, F80 functions).
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip, no box
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4", and determine appropriate backset (2-3/8" or 2-3/4").
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for both handleset and coordinating deadbolt installation.
3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for both lower handleset and upper deadbolt components.
4. Install the handleset mounting hardware and secure the device to door per manufacturer torque specifications, ensuring proper alignment with deadbolt installation.
5. Adjust operational components for proper alignment, latching, and smooth lever operation throughout the full range of motion.
6. Test handleset operation in coordination with deadbolt function to verify proper integration and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Front Entry Doors
• Single-Family Home Security Systems
• Townhouse and Condominium Entrances
• Apartment Unit Entry Doors
• Residential Renovation Projects
• New Construction Residential Buildings
• Multi-Family Housing Developments

Why Choose Schlage Residential Quality?

Schlage Residential FE285 handlesets deliver professional-grade reliability with zinc and steel construction rated for Grade 2 commercial and Grade AAA residential performance standards. The F Series design combines elegant Camelot styling with practical Flair lever functionality, certified to ANSI/BHMA standards for demanding residential applications. Engineered for easy installation and long-term dependable performance where attractive design meets reliable entrance security.
