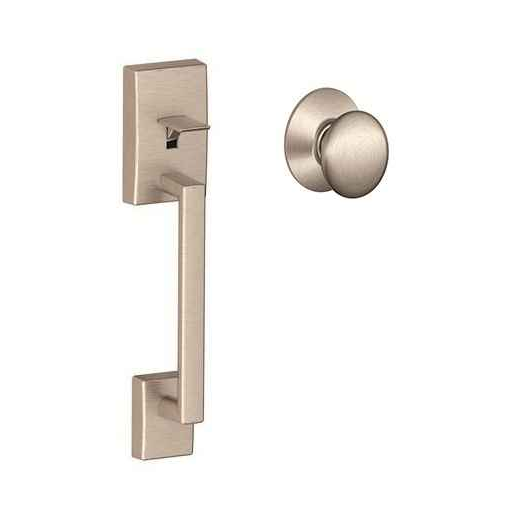

Schlage Residential FE285 Century Lower Half Handleset with Plymouth Knob - Non-Keyed
Professional Residential Entry Hardware Solution
The Schlage Residential FE285 Century Lower Half Handleset with Plymouth Knob provides reliable entrance functionality designed to combine with electronic deadbolts for complete front entry sets. This Grade 2 certified handleset accommodates door thickness from 1-3/8" to 1-3/4" with dual backset options for 2-3/8" or 2-3/4" installations. Featuring zinc and steel construction with ANSI/BHMA A156.2-2017 Commercial Grade 2 certification, this non-handed handleset delivers professional-grade performance for residential applications.
Professional Features & Benefits
- Door Thickness Compatibility: Accommodates 1-3/8" to 1-3/4" doors with dual backset latches fitting either 2-3/8" or 2-3/4" backsets for versatile installation options.
- Grade 2 Certification: ANSI/BHMA A156.2-2017 Commercial Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AAA certification ensures reliable performance and code compliance.
- Durable Construction: Zinc and steel substrate materials provide long-lasting durability for demanding residential entrance applications.
- Easy Installation: Features simple 3-step installation process requiring only a screwdriver for quick and efficient setup.
- Universal Compatibility: Non-handed design works with any door swing direction, and combines seamlessly with electronic deadbolts for complete entry systems.
- Professional Hardware Components: Includes 1" x 2-1/4" latch with 1/4" radius corner faceplate, 7/8" housing diameter, and 1/2" throw for reliable operation.
- Complete Strike Package: Standard 1-5/8" x 2-1/4" radius corner full lip strike provides secure latching without requiring additional components.
Standard Features
Certification: ANSI/BHMA A156.2-2017 Commercial Grade 2; ANSI/BHMA A156.39-2015 Residential Grade AAA; Available UL Listed for 3-hour fire door (F10, F40 (CSV Only), F51A, F80 functions).
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip, no box
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section
Installation & Operation
- Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4" and backset requirements for either 2-3/8" or 2-3/4" installation.
- Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the handleset and latch components.
- Prepare door by drilling required holes and routing as specified in manufacturer instructions for the 1" x 2-1/4" latch and strike plate.
- Install all mounting hardware and secure the handleset to door per manufacturer torque specifications using the simple 3-step installation process.
- Adjust operational components for proper alignment, latching, and smooth operation of the thumbpiece and inside knob throughout the full range of motion.
- Test handleset operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.
Professional Applications
- Residential Front Entry Systems
- Single-Family Home Entrances
- Townhouse and Condominium Units
- Apartment Building Individual Units
- Multi-Family Residential Properties
- Home Office and Study Entrances
- Secondary Entrance Points
Why Choose Schlage Residential Quality?
Schlage Residential FE285 handlesets deliver professional-grade reliability with zinc and steel construction certified to ANSI/BHMA Grade 2 standards for both commercial and residential applications. The F Series design combines classic styling with easy 3-step installation, requiring only a screwdriver for professional results. Engineered for demanding residential entrance applications where dependable performance and attractive design are essential.
Backed by Schlage's Lifetime Limited Mechanical and Finish Warranty.Manufacturer Resources
Product Specs
- Series:
- F Series
- Subcategory:
- Handlesets
- Grade:
- Grade 2
- Standard Strike:
- 10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
- Standard Latch:
- 16-080: Spring Latch, Dual Option (Round, Drive-in)
- Keyed Function:
- Non-Keyed
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Handlesets
- Product Type:
- Handlesets
- Keyed:
- No
- Electronic:
- No
- Commercial/Residential:
- Residential
- Function Description:
- Combine with Electronic Deadbolt for complete Front Entry Set; Latch retracted by thumbpiece from outside or by inside knob/ lever
- Lock Function:
- Privacy/Bed/Bath
- Lever/Knob Design:
- Plymouth Knob
- Handle Design:
- Plymouth Knob
- Handle Type:
- Knob
- Segment:
- Door Hardware
- Product Model:
- FE285
- Product Function:
- Entrance
- Door Hand Direction:
- Non-Handed
- Door Thickness Range:
- 1-3/8" to 1-3/4"
- Trim Hardware:
- Century
- Product Category:
- Mechanical Locks
- Product Substrate:
- Zinc and Steel
- Department:
- Door Hardware
