Schlage Residential Schlage Residential FE410F - Control Smart Interconnected Lock UL Listed with Greenwich Trim and Saturn Lever with 5-1/2" Bore Spacing SCR-FE410-GRW-SAT

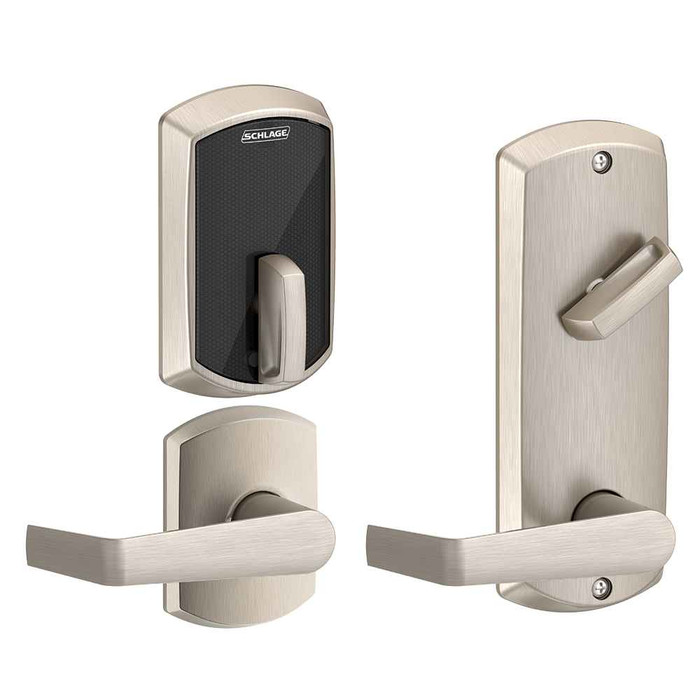

Schlage Residential FE410F Control Smart Interconnected Electronic Lock with Greenwich Trim and Saturn Lever

(No reviews yet) Write a Review

Model: FE410F GRW 512 SAT 626
$971.00
$520.67
Selected Finish is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$971.00
$520.67
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Residential FE410F Control Smart Interconnected Electronic Lock with Greenwich Trim and Saturn Lever

Professional Smart Lock Solution for Multifamily Properties

The Schlage Residential FE410F Control Smart Interconnected Lock delivers advanced electronic security with convenient keypad access and smartphone connectivity. This Grade 1 certified lock features an all-metal chassis construction with adjustable backset fitting 2-3/8" to 2-3/4" applications and accommodates door thickness from 1-3/8" to 1-3/4". The interconnected design provides single motion egress while supporting up to 500 users per lock with comprehensive audit trail capabilities.

Professional Features & Benefits

  • Door Compatibility: Fits door thickness range of 1-3/8" to 1-3/4" with adjustable backset from 2-3/8" to 2-3/4" for versatile installation options.
  • Heavy-Duty Construction: All-metal chassis and escutcheons provide exceptional durability for demanding residential and multifamily applications.
  • Smart Connectivity: Bluetooth-enabled lock programming via mobile application on phone or tablet eliminates the need for physical key management.
  • High-Capacity User Management: Supports up to 500 users per lock with audit trail reports tracking up to 1,000 events for comprehensive access control.
  • Interconnected Safety Design: Single motion egress meets safety requirements while maintaining security functionality.
  • Professional Certifications: ANSI/BHMA A156.12 Grade 1, UL 90 minute fire rating, and ADA compliant design ensure code compliance.
  • Extended Battery Life: Up to 1.5 years offline operation or 1 year with BLE credential enabled, plus 9V battery backup for emergency access.
  • Manufacturer Warranty: Lifetime limited mechanical and finish warranty with 1-year limited electronics coverage for added confidence.

Standard Features

  • Designed specifically for multifamily properties
  • Eliminates the cost and hassle of managing keys
  • Two styles with a broad selection of finishes and decorative lever designs
  • Modern credentials - use a smart credential or smartphone as key
  • Interconnected design provides single motion egress
  • Upgrades property visual appeal
  • Increases intelligence and efficiency for property managers
  • Lock programming via mobile application on phone or tablet (Bluetooth connection)
  • Improves security and safety, reduces liability
  • ADA compliant
  • Supports networked (Gateway required), No-Tour and standalone applications
  • Up to 500 users per lock*
  • Audit trail reports up to 1,000 events**
  • Easy installation no wires to run and fits standard door prep
  • Up to 1 1/2-years (offline mode), up to 1 year (BLE credential enabled)
  • Also available as a deadbolt

Installation & Operation

  1. Verify electrical requirements and confirm 4-AA battery installation. Ensure 9V backup battery is available for emergency access if needed.
  2. Disconnect any existing lock hardware and prepare door with standard 2-1/8" bore and 1" edge bore per manufacturer specifications.
  3. Mount the electronic lock unit ensuring proper alignment with door thickness range of 1-3/8" to 1-3/4" and adjust backset to match door preparation.
  4. Install strike plate using provided 1-1/8" x 2-3/4" round corner strike and secure all mounting hardware per manufacturer torque specifications.
  5. Configure user codes and operational settings via mobile application using Bluetooth connectivity. Set up audit trail and access control parameters as needed.
  6. Test all functions including keypad operation, smartphone access, interconnected egress operation, and battery backup system functionality.
  7. Complete final inspection and document user codes and settings. Refer to manufacturer documentation for complete programming instructions and troubleshooting.

Professional Applications

  • Multifamily Residential Properties
  • Apartment and Condominium Complexes
  • Student Housing Facilities
  • Senior Living Communities
  • Property Management Companies
  • Residential Rental Properties
  • Vacation Rental Properties

Manufacturer Resources

  • Installation Instructions
  • User's Guide

Why Choose Schlage Residential Quality?

Schlage Residential FE Series electronic locks deliver professional-grade reliability with all-metal chassis construction and Grade 1 ANSI/BHMA certification for demanding multifamily applications. The lifetime limited mechanical and finish warranty with 1-year electronics coverage provides comprehensive protection and peace of mind. Engineered with nearly a century of security innovation, these smart locks offer the proven quality and advanced features property managers need for efficient, secure access control.

Z-Wave Plus enabled for integration with SmartThings, Ring Alarm, Wink, and other compatible smart home hubs. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || Door Prep Templates: FE410F Door Prep Template (RF122) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/Schlage-Control-FE410F-door-prep-template-RF122.pdf) || Quick-Start Guides: Schlage Connect Smart Deadbolt Quick Start Guide (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/schlage-connect-quick-start-guide.pdf) || User Guides & Manuals: Z-Wave Association and Configuration Parameters (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/24352403.pdf) | Schlage Control Smart Locks User Guide (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/schlage-control-smart-locks-user-guide.pdf) || Programming Guide: Schlage Programming Guides (https://www.schlage.com/en/home/support/programming-guides.html) || FAQs & Support: Schlage Smart Z-Wave Deadbolt FAQs and Support (https://www.schlage.com/en/home/support/faqs/schlage-connect-zwave.html) | Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html)

Manufacturer Resources

Product Specs

Series:
FE Series
Subcategory:
Smart Locksets
Grade:
Grade 1
Product Type:
Handlesets
Keyed Function:
Single Cylinder
Product Group:
Electronic Locks
Product Subgroup:
Touchscreen Locksets
Keyed:
No
Commercial/Residential:
Residential
Electronic:
Yes
Lock Function:
Entrance
Reader Type:
Touchscreen
Segment:
Door Hardware
Product Attribute:
Electronic Locks
Product Model:
FE410
Product Function:
Handleset with Keypad Deadbolt
Door Thickness Range:
1-3/8" to 1-3/4"
Door Strike:
1-1/8" x 2-3/4" Round Corner
Product Category:
Electronic Locks
Department:
Door Hardware

Schlage Residential FE410F GRW 512 SAT 626 – Frequently Asked Questions

1) What is the Schlage FE410F Control Smart Lock and what makes it interconnected?
The FE410F is a UL-listed electronic lock that connects wirelessly to compatible fire alarm systems. When the fire system activates, the lock automatically unlocks for emergency egress. Features keypad entry, mechanical key override, and battery operation.
2) What door preparations are required for this lock?
Requires standard 2-1/8" bore hole with 1" latch hole. The 5-1/2" bore spacing refers to the distance between lock centerline and auxiliary deadbolt. Door thickness should be 1-3/8" to 1-3/4". Always verify with manufacturer template before drilling.
3) How do I determine the correct handing for this lock?
Stand on the outside of the door. If hinges are on the right, it's right-handed. If hinges are on the left, it's left-handed. The Saturn lever can typically be field-reversed, but verify your specific model requirements before installation.
4) What finishes are available for the Greenwich trim with Saturn lever?
Common finishes include Satin Chrome, Aged Bronze, and Bright Brass. Finish availability varies by model number. Check your specific SKU for exact finish options. All components should match the selected finish.
5) What grade and power requirements does this lock have?
This is a Grade 1 commercial lock rated for high-traffic applications. Operates on 4 AA batteries with typical 12-month life under normal use. Low battery warnings alert users before power depletion. Emergency 9V battery terminals provide backup power.
6) How many access codes can be programmed?
Supports multiple user codes plus master code programming. Exact capacity varies by model. Codes are typically 3-8 digits long. Programming is done through keypad sequence or connected system interface.
7) What parts and accessories are included?
Includes lock body, Greenwich trim plate, Saturn lever handles, keypad module, strike plate, batteries, and mounting hardware. Installation template and programming instructions provided. Fire system connection module may be separate depending on configuration.
8) What are the basic installation requirements?
Requires standard lockset installation skills plus basic electrical knowledge for fire system connection. Door must be properly aligned and sturdy. Fire alarm integration requires coordination with system installer. Test all functions before final acceptance.
9) How do I maintain and adjust this electronic lock?
Replace batteries annually or when low battery warning appears. Keep keypad clean and dry. Lubricate mechanical components with graphite only. Test fire system integration monthly. Check door alignment if lock binds or operates roughly.
10) What other Schlage electronic locks are similar?
Related models include standard FE410 without fire connection and FE510 with different trim options. Browse our Schlage electronic locks for comparable keypad entry systems and interconnected lock options.
11) What field conditions affect performance?
Extreme temperatures may reduce battery life. High humidity areas need regular cleaning. Heavy usage shortens component life. Door movement or settling can cause binding. Install weatherproofing gaskets in exterior applications.
12) What are the key measurements for this lock configuration?
Standard 2-3/4" backset with 5-1/2" auxiliary spacing. Greenwich trim adds decorative width around cylinder. Saturn lever projects approximately 4-1/2" from door face. Verify exact dimensions from manufacturer specifications for your application.
