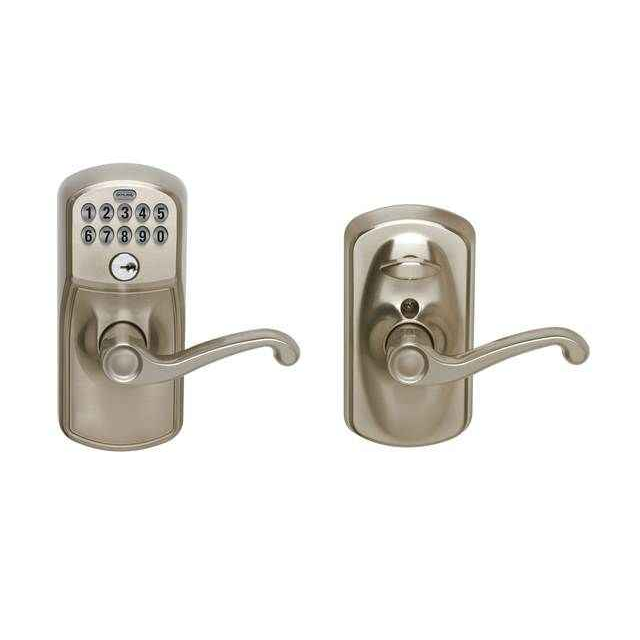

Schlage Residential FE595 Plymouth Keypad Entry Lever Set with Flex-Lock and Flair Interior Lever

Schlage Residential FE595 Plymouth Keypad Entry Lever Set with Flex-Lock and Flair Interior Lever

Convenient Electronic Security with Keypad Access Control

The Schlage Residential FE595 Plymouth keypad entry lever set combines proven security with modern convenience for residential applications. This Grade 2 electronic lock features 9V battery operation with storage for up to 19 access codes, accommodating door thickness from 1-3/8" to 1-3/4" with adjustable 2-3/8" to 2-3/4" backset. The single cylinder design includes a 5-pin C keyway cylinder and operates in temperatures from -35°C to 66°C for exterior mounting.

Professional Features & Benefits

• Door Compatibility: Fits door thickness from 1-3/8" to 1-3/4" with 2-1/8" cross bore and adjustable 2-3/8" to 2-3/4" backset for versatile installation options.
• Advanced Code Management: Store up to 19 access codes with 2 pre-set unique 4-digit codes, allowing flexible user management and easy code changes in seconds.
• Battery-Powered Operation: Single 9V battery provides reliable power with extended operating life for consistent keypad functionality.
• Wide Temperature Range: Operates from -35°C to 66°C for exterior mounting and -10°C to 50°C for interior components, ensuring reliable performance in various climates.
• Grade 2 Security Rating: ANSI/BHMA F76 certified construction provides commercial-grade security standards for residential applications.
• Flexible Locking Options: Features auto lock and flex lock functionality with push-button locking and inside lever release for convenient operation.
• Complete Hardware Package: Includes 1/2" throw latch with 7/8" housing diameter, 1" x 2-1/4" radius corner faceplate, and full lip radius strike for complete installation.
• Manufacturer Warranty: 3 Year warranty coverage for added confidence and protection in residential applications.

Standard Features

Product Dimensions: 3" x 6.5" x 6.5"
Battery: 9V battery (1)
Latch Throw: 1/2" throw, 7/8" housing diameter
Cylinder: 5-pin, C keyway
Door Thickness: 1-3/8" to 1-3/4"
Cross Bore: 2-1/8"
Latch Faceplate Size: 1" x 2-1/4" radius corner
Latch/Backset: 2-3/8" to 2-3/4" adjustable
Latch Faceplate Size: 1" x 2-1/4"
Latch Faceplate Options: Spring latch radius corner and circular drive-in faceplates
Strike: 1-5/8" x 2-1/4", radius corner, full lip latch strikes
Keys: 1 Key
Codes: 2 pre-set unique 4-digit access codes, storage of up to 19 access codes
Operating Temperatures: Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C

Installation & Operation

1. Verify electrical requirements and confirm 9V battery compatibility before proceeding with installation.
2. Disconnect any existing lock hardware and ensure door preparation meets specifications including 2-1/8" cross bore and proper door thickness range.
3. Mount the exterior keypad unit and interior lever assembly ensuring proper alignment and secure attachment to door surfaces.
4. Install the 9V battery and configure initial access codes according to manufacturer programming instructions.
5. Configure operational settings including auto lock and flex lock functions per application requirements.
6. Test all functions including keypad entry, manual key override, interior lever operation, and battery status indicators.
7. Complete final inspection and document access codes. Refer to manufacturer documentation for complete installation instructions and programming procedures.

Professional Applications

• Single Family Residential Homes
• Townhomes and Condominiums
• Rental Property Management
• Home Office and Study Areas
• Guest House and Secondary Entrances
• Residential Security Upgrades
• Multi-Generational Housing

Manufacturer Resources

• Installation Instructions
• User's Guide

Why Choose Schlage Residential Quality?

Schlage Residential electronic locks deliver proven security with Grade 2 ANSI/BHMA F76 certification and reliable 9V battery operation tested for extended performance. The 3 Year warranty coverage and wide temperature operating range from -35°C to 66°C ensure dependable operation in demanding residential applications. Engineered with nearly a century of dedication to security innovation, Schlage FE Series locks provide the quality and reliability homeowners trust.

Keypad lever with Flex Lock technology — set to always-locked or passage mode as needed. Supports up to 19 programmable access codes. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || Installation Guides: FE575/FE595 Keypad Lever Installation Instructions (current) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/fe595-keypad-lock-installation-instructions.pdf) | FE575 Keypad Lever Installation Instructions (alt) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/fe575-keypad-lock-installation-instructions.pdf) | FE575/FE595 Installation and Programming Guide (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P515-859.pdf) || Door Prep Templates: FE595 Door Prep Template — No Existing Holes (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/1105-b.pdf) | FE595 Door Prep Template — Existing Holes (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/1105.pdf) || User Guides & Manuals: Keypad Locks User Guide (BE365/FE575/FE595) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/23780042.pdf) || Programming Guide: Schlage Programming Guides (https://www.schlage.com/en/home/support/programming-guides.html) || FAQs & Support: Schlage Keypad Flex Lock Lever FAQs and Support (https://www.schlage.com/en/home/support/faqs/keypad.html) | Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html)
