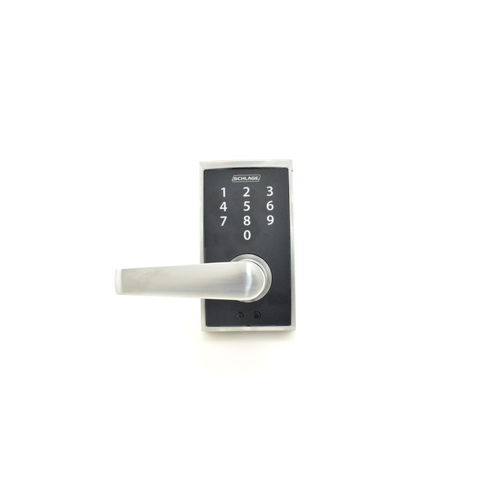

Schlage Residential FE695 Camelot Touch Entry Electronic Lever Set with Accent Lever and Keypad Access

Schlage Residential FE695 Camelot Touch Entry Electronic Lever Set with Accent Lever and Keypad Access

Convenient Keypad Security for Residential Applications

The Schlage Residential FE695 Camelot Touch Entry Electronic Lever Set delivers convenient keypad security with professional-grade reliability for residential doors. This battery-operated electronic lock accommodates door thickness from 1-3/8" to 1-3/4" with adjustable 2-3/8" to 2-3/4" backset for versatile installation. The system stores up to 19 access codes with 2 pre-set unique 4-digit codes and operates reliably in temperatures from -35°C to 66°C exterior and -10°C to 50°C interior.

Professional Features & Benefits

• Flexible Door Compatibility: Accommodates door thickness from 1-3/8" to 1-3/4" with adjustable backset of 2-3/8" to 2-3/4" for versatile residential installation.
• Advanced Code Management: Store up to 19 access codes with 2 pre-set unique 4-digit codes that can be added, changed, or deleted in seconds for flexible access control.
• Reliable Battery Operation: Single 9V battery power with extended operating life for dependable keypad functionality without hardwired connections.
• Wide Temperature Range: Operates reliably from -35°C to 66°C exterior and -10°C to 50°C interior for year-round performance in various climates.
• Auto Lock and Flex Lock Features: Programmable automatic re-locking and flexible lock modes provide enhanced security and convenience options.
• Grade 2 Construction: ANSI/BHMA Grade 2 rating ensures commercial-quality durability and security performance for residential applications.
• Complete Installation Package: Includes 1" x 2-1/4" radius corner latch faceplate, 1-5/8" x 2-1/4" strike, and all mounting hardware for complete installation.
• Manufacturer Warranty: 3 Year warranty coverage for added confidence and protection.

Standard Features

Product Dimensions: 3" x 5.375" x 6.75"
Battery: 9V battery (1)
Latch Throw: 1/2" throw, 7/8" housing diameter
Cylinder: None
Door Thickness: 1-3/8" to 1-3/4"
Cross Bore: 2-1/8"
Latch Faceplate Size: 1" x 2-1/4" radius corner
Latch/Backset: 2-3/8" to 2-3/4" adjustable
Latch Faceplate Size: 1" x 2-1/4"
Latch Faceplate Options: Spring latch radius corner and circular drive-in faceplates
Strike: 1-5/8" x 2-1/4", radius corner, full lip latch strikes
Keys:None
Codes: 2 pre-set unique 4-digit access codes, storage of up to 19 access codes
Operating Temperatures: Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C

Installation & Operation

1. Verify electrical requirements and confirm 9V battery compatibility before proceeding with installation.
2. Disconnect any existing lock hardware and prepare door with 2-1/8" cross bore hole for proper fit.
3. Mount the exterior keypad unit ensuring proper alignment with door edge and adequate clearance for lever operation.
4. Install interior lever assembly and connect to exterior unit following manufacturer wiring diagrams and connection procedures.
5. Configure operational settings including automatic re-locking mode and flex lock options per application requirements.
6. Program access codes and test all functions including keypad entry, interior lever operation, and automatic locking features.
7. Complete final inspection and document programmed codes. Refer to manufacturer documentation for complete programming instructions and troubleshooting.

Professional Applications

• Residential Front Door Security
• Home Office and Study Access
• Multi-Family Residential Units
• Vacation Rental Properties
• Senior Living Facilities
• Small Business Offices
• Private Entrance Security

Manufacturer Resources

• Installation Instructions
• User's Guide

Why Choose Schlage Residential Quality?

Schlage Residential electronic locks deliver proven security with nearly a century of dedication to quality and innovation. The FE695 features Grade 2 construction rated for reliable residential use with 3 Year warranty coverage. Engineered for convenient keypad access with professional-grade durability and flexible programming options for modern home security needs.

Fingerprint-resistant capacitive touchscreen lever with keyless entry, auto-lock, and passage mode. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || Installation Guides: FE695 Schlage Touch Touchscreen Lever Installation Instructions (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P516-866.pdf) || Programming Guide: Schlage Programming Guides (https://www.schlage.com/en/home/support/programming-guides.html) || FAQs & Support: Schlage Touchscreen Lever FAQs and Support (https://www.schlage.com/en/home/support/faqs/schlage-touch.html) | Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html)
