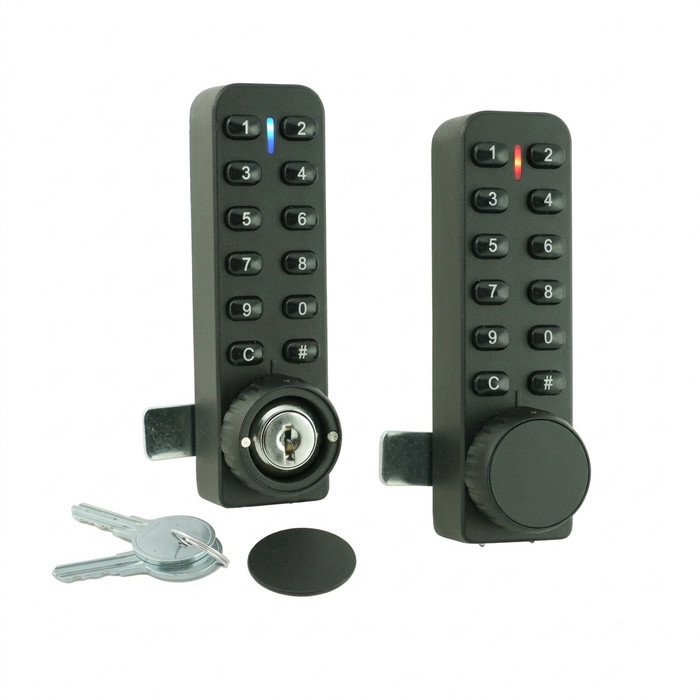

SDC 295 Series - Standalone Programmable Cabinet Locks, Battery Powered

SDC’s 295 battery powered keyless cabinet locks provide an easy, economical solution for security and keyless access control for a wide variety of cabinet doors, drawers, storage lockers and more. Quickly and easily add/delete up to 30 individual user PIN codes with programmable keypad. Powered by two AAA batteries, the need for low voltage wiring is eliminated.

295 battery powered keyless entry cabinet lock provides security and access control for indoor commercial and residential, metal and wood cabinetry, files, desks, lockers, electrical enclosures, display cases and portable carts. The 295 is designed for new or retrofit cam lock compatible doors and drawers.

MODELS

295 Standalone Programmable Cabinet Lock

STANDARD FEATURES

• Multiple locking cam positions
• Programmable multiple or one-time usemode
• One master code with full programming andcontrol capabilities
• One sub-master code with limitedprogramming for user codes, maintainedunlock, unlock time only
• 30 users
• 4-6 digit PIN codes
• Field optional user changeable PIN
• Unlock time programmable from 1-9seconds (factory default 3 seconds)
• Keypad tamper lockout
• Concealed mechanical key override
• Battery powered (2 AAA)
• Battery failure override
• Visual status indicators (LED)
• Key override

RESOURCES

295-Datasheet.pdf (sdcsecurity.com)

INSTALLATION
