SDC’s EntryCheck™ 923 series narrow indoor/outdoor standalone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.
923P models add HID proximity reader capability to the keypad and 923PW models are designed to interface with SDC’s IPPro® and most access control systems providing a standard 26-bit Wiegand output.
MODELS

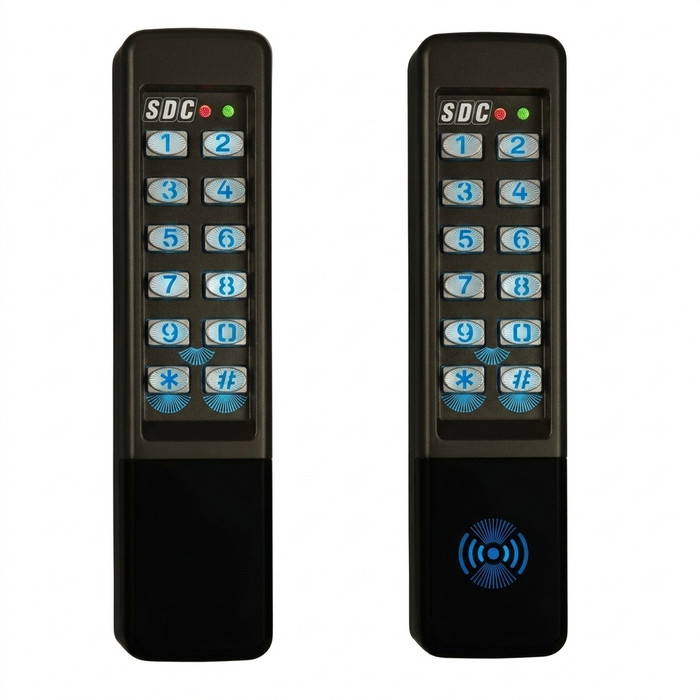

923 Indoor/Outdoor Narrow Self-Contained Keypad
923P Indoor/Outdoor Narrow Self-Contained Keypad with Integrated Proximity Reader
923PW Indoor/Outdoor Narrow Weigand Output Keypad with Integrated Proximity Reader
STANDARD FEATURES
• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant keypad
• Weather and vandal resistant housing with tactile keys
• Built-in tamper switch
• Keypad programmable
• Visual status indicators (LED)
SELF-CONTAINED KEYPADS ONLY
• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry PIN’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)
INTEGRATED PROXIMITY READERS ONLY
• 3 user modes - PIN or card, card only, card and PIN
RESOURCES
923-Datasheet.pdf (sdcsecurity.com)
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Subcategory:
- Keypads and Readers
- Series:
- 923 Series
- Dimensions:
- 13/4"W x 75/16"H x 13/8"D (11/2" Wall Projection)
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Readers, Keypads and Credentials
- Product Type:
- Keypads and Readers
- Model:
- 923, 923P, 923PW,
- Commercial/Residential:
- Commercial
- Temperature Range:
- Minus 4 Degrees F to +140 Degrees F (Minus 20 Degrees C to +60 Degrees C)
- Electronic:
- Yes
- Power:
- 30mA Typical, 150mA Maximum
