SDC PanicLok PD2090 Electric Bolt Lock — Top Latch Release for Narrow Stile Glass Doors

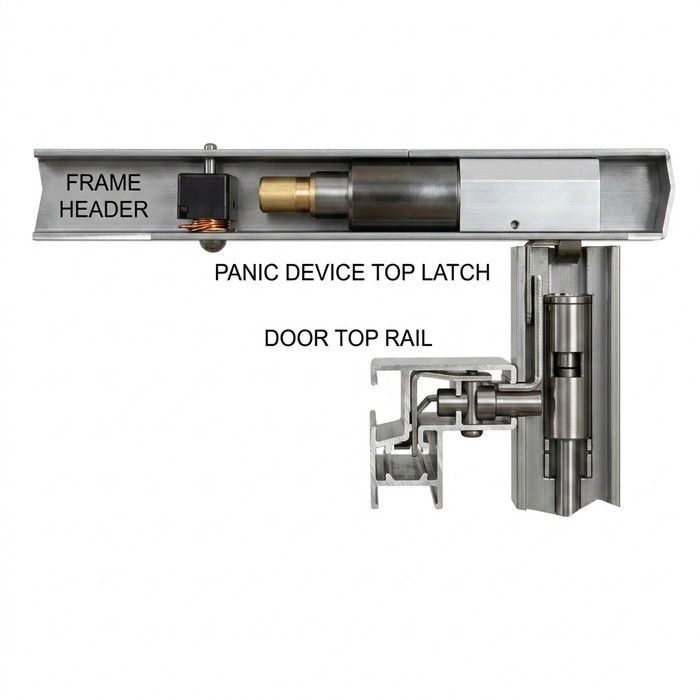

The SDC PanicLok PD2090 is a concealed mortise electric bolt lock engineered for narrow stile glass doors fitted with Dor-O-Matic or Kawneer concealed vertical rod (CVR) exit devices. It delivers fail-secure top latch release — bolt retracts on 24VDC power, automatically locks on power loss — while preserving uninhibited egress from the inside at all times. Available in left-hand and right-hand configurations.
Key Features
- Fail-Secure, 24VDC: Bolt retracts when energized; locks automatically when de-energized — no power, no entry.
- Concealed Mortise Design: 10" × 1½" × ⅛" face plate sits flush; beveled stainless steel bolt for smooth, reliable throw.
- ½" Latch Throw: Sized for narrow stile glass door frames with minimum ⅛" reveal.
- Field-Adjustable Ball Switch: Holds bolt retracted while door is open; automatically projects bolt on door closure — no manual reset required.
- Voltage & Current Spike Protection: Built-in protection extends component life in high-demand access control environments.
- CVR Exit Device Compatible: Engineered specifically for Dor-O-Matic and Kawneer concealed vertical rod exit devices.
- Versatile Door Configurations: Fits single doors, center-hung pairs, and offset door pairs.
Technical Specifications
- Voltage: 24VDC
- Fail Mode: Fail-Secure
- Latch Throw: ½"
- Face Plate: 10" × 1½" × ⅛"
- Mounting Method: Mortise
- Minimum Door Reveal: ⅛"
- Handing: Left Hand / Right Hand Reverse (PD2090ALCU); Right Hand / Left Hand Reverse (PD2090ARCU)
- Construction: Beveled stainless steel bolt
- Application: Commercial
Typical Applications
- Commercial office buildings and corporate campuses with glass storefront entrances
- Retail and hospitality properties with narrow stile glass door systems
- Healthcare and educational facilities requiring controlled access with compliant egress
- Multi-tenant and mixed-use properties integrating CVR exit devices with electronic access control
- Government and institutional buildings with enhanced perimeter security requirements
The PD2090 installs where standard surface-mount bolts won't fit — its concealed mortise profile keeps the glass door aesthetic intact while delivering the locking force and access control integration that commercial security projects demand.
Manufacturer Resources
SDC Full Catalog
Product Specs
- Series:
- PD2090 Series
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Electronic Bolt Locks
- Subcategory:
- Electronic Bolt Locks
- Latch Throw:
- 1/2"
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Fail-Safe/Fail-Secure:
- Fail-Secure
- Product Model:
- PD2090
- Product Voltage:
- 24VDC
- Face Plate:
- 10" x 11/2" x 1/8"
- Mounting Method:
- Mortise
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
