BEST CECSFBB199-54 Heavy Weight Electrified Hinge with Concealed Conductor and Switch

BEST CECSFBB199-54 Heavy Weight Electrified Hinge with Concealed Conductor and Switch

Professional Electrified Hinge Solution for Commercial Access Control

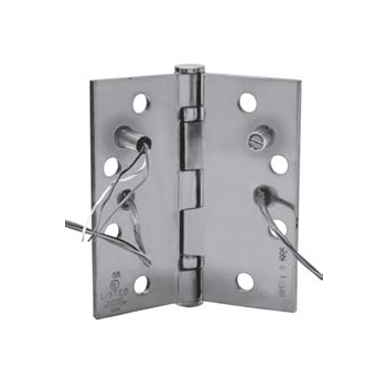

The BEST CECSFBB199-54 is a heavy weight electrified hinge engineered for commercial door applications, featuring full mortise ball bearing construction with brass and bronze finish options. This 5-knuckle hinge integrates concealed conductor and concealed switch technology with 4-wire capability, providing discreet electrical connectivity for electronic access control systems while maintaining smooth operation and long-lasting performance.

Professional Features & Benefits

• Heavy-Duty Construction: Ball bearing design with 5 knuckles ensures smooth operation and exceptional durability for high-traffic commercial applications.
• Concealed Switch Technology: Single pole double throw switch operates when door is open or closed, enabling tamper-proof monitoring for alarms and security equipment.
• Integrated Electrical System: 4-wire concealed conductor design allows seamless integration with electronic access control systems while keeping all electrical components hidden when installed.
• Professional Finish Options: Available in 613 Satin Bronze Dark Oxidized Oil Rubbed and 626 Satin Chromium Plated finishes for versatile architectural coordination.
• Full Mortise Design: Square corner construction provides secure mounting and professional appearance for commercial door installations.
• Complete Installation Package: Includes concealed conductor, concealed switch, mounting screws, and installation instructions for efficient setup.
• Tamper-Proof Security: No exposed electrical parts when properly installed, providing secure monitoring capability for sensitive applications.
• Center Hinge Positioning: Designed for installation in center hinge location for optimal door operation and electrical connectivity.

Technical Specifications

• Bearing Type: Ball Bearing
• Commercial/Residential: Commercial
• Corner Style: Square Corners
• Department: Door Hardware
• Duty Level: Heavy Duty
• Electronic: Yes
• Hinge Type: Electrified
• Knuckles: 5
• Lock Type: Mortise
• Number of Wires: 4
• Package Includes: Concealed Conductor, Concealed Switch
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Model: CECSFBB199-54
• Product Subgroup: Electrified Hinges
• Product Type: Electrified Hinges
• Series: Electrified Hinges
• Subcategory: Hinges

Installation & Operation

1. Verify electrical requirements and confirm compatibility with existing access control system before beginning installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the hinge in the center hinge location ensuring proper door preparation and mortise cutting per manufacturer specifications.
4. Route and connect the 4-wire system according to manufacturer wiring diagrams, ensuring concealed conductor integration with door frame wiring.
5. Configure switch operation settings for door open/closed monitoring per application requirements and security system specifications.
6. Restore power and test all functions including normal hinge operation, switch activation, and integration with connected alarm or monitoring systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Government and Municipal Buildings
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Electronic Access Control Integration

Why Choose BEST Quality?

BEST electrified hinges deliver professional-grade reliability with heavy-duty ball bearing construction and concealed electrical integration designed for demanding commercial applications. The CECSFBB199-54 combines tamper-proof monitoring capability with smooth mechanical operation, ensuring dependable performance where security and access control are essential. Complete installation package with detailed instructions provides efficient setup for professional installers.
