BEST CEFBB168-10 Steel Full Mortise Ball Bearing Concealed Conductor Heavy Weight Electrified Hinge with 10-Wire Configuration

BEST CEFBB168-10 Steel Full Mortise Ball Bearing Concealed Conductor Heavy Weight Electrified Hinge with 10-Wire Configuration

Professional Concealed Conductor Electrified Hinge Solution

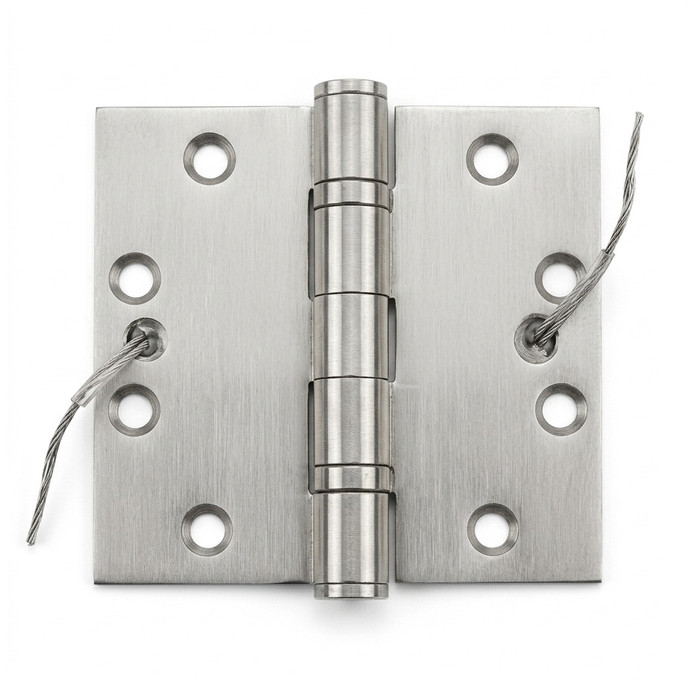

The BEST CEFBB168-10 is a heavy-weight electrified hinge engineered for commercial door applications requiring secure electrical conductor integration. This steel construction full mortise hinge features ball bearings for smooth operation and incorporates a concealed conductor system with 10-wire configuration for complex electronic access control systems. The concealed electric design conducts current regardless of door position to electric locks, exit devices, or hold open devices where tamper-proof hinge installation is required.

Professional Features & Benefits

• 10-Wire Configuration: Provides maximum flexibility and compatibility for complex electronic access control systems and signal transmission applications.
• Concealed Conductor Design: No electrical parts are exposed when hinge is installed, ensuring tamper-proof operation and professional appearance.
• Heavy-Duty Ball Bearing Construction: Steel construction with ball bearings delivers smooth operation and long-term reliability for commercial applications.
• Full Mortise Installation: Designed for center hinge location with permanent fast pin for secure mounting in commercial door frames.
• Continuous Current Conduction: Conducts current regardless of door position to electric locks, exit devices, or hold open devices for reliable system operation.
• Signal Transmission Capability: Transmits signals from code readers on doors to remote computers for integrated access control functionality.
• Complete Installation Package: Packed with all machine screws and installation instructions for professional installation.
• Junction Box Compatible: Should be used along with a junction box for proper electrical integration and code compliance.

Technical Specifications

• Bearing Type: Ball Bearing
• Commercial/Residential: Commercial
• Corner Style: Square Corners
• Department: Door Hardware
• Duty Level: Heavy Duty
• Electronic: Yes
• Hinge Type: Electrified
• Knuckles: 5
• Lock Type: Mortise
• Number of Wires: 10
• Package Includes: Concealed Conductor
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Model: CEFBB168-10
• Product Subgroup: Electrified Hinges
• Product Type: Electrified Hinges
• Series: Electrified Hinges
• Subcategory: Hinges

Installation & Operation

1. Verify electrical requirements and confirm compatibility with existing access control systems before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the hinge in the center hinge location ensuring proper door and frame preparation for full mortise installation with square corners.
4. Route and connect the 10-wire configuration according to manufacturer wiring diagrams. Use appropriate junction box for electrical connections.
5. Configure wiring connections for electric locks, exit devices, hold open devices, or signal transmission per application requirements.
6. Restore power and test all functions including current conduction regardless of door position and signal transmission capabilities.
7. Complete final inspection and document wiring configuration. Refer to manufacturer documentation for complete installation specifications and troubleshooting.

Professional Applications

• Commercial Office Buildings with Access Control
• Healthcare Facilities with Secure Areas
• Educational Institution Security Systems
• Government and Municipal Buildings
• Industrial Facilities with Electronic Access
• Multi-Tenant Commercial Properties
• High-Security Commercial Installations

Why Choose BEST Quality?

BEST electrified hinges deliver professional-grade reliability with heavy-duty steel construction and ball bearing operation engineered for demanding commercial applications. The concealed conductor design ensures tamper-proof electrical integration while maintaining smooth door operation regardless of position. Engineered for commercial environments where dependable electronic access control integration is essential.
