BEST CEFBB179-66 Steel Full Mortise Ball Bearing Concealed Conductor Electrified Hinge with 6-Wire Configuration

BEST CEFBB179-66 Steel Full Mortise Ball Bearing Concealed Conductor Electrified Hinge with 6-Wire Configuration

Professional Concealed Conductor Electrified Hinge Solution

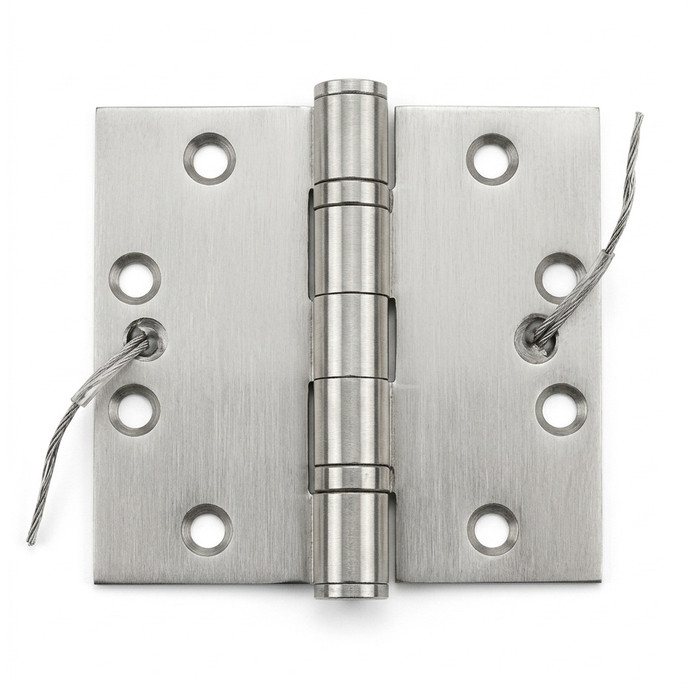

The BEST CEFBB179-66 is a standard weight electrified hinge engineered for commercial door applications, featuring steel construction with full mortise design and ball bearing operation. This concealed conductor hinge enables secure electrical integration within the hinge assembly, offering 6-wire configuration (2@24AWG, 4@28AWG) for enhanced wiring flexibility. The tamper-proof design conducts current regardless of door position, making it ideal for electric locks, exit devices, and access control systems.

Professional Features & Benefits

• 6-Wire Configuration: Includes 2@24AWG and 4@28AWG wires for versatile electrical connectivity and enhanced system integration options.
• Concealed Conductor Design: Conducts current regardless of door position to electric locks, exit devices, or hold open devices where tamper-proof operation is required.
• Ball Bearing Operation: Full mortise design with ball bearings ensures smooth, reliable door operation for commercial applications.
• Tamper-Resistant Construction: No electrical parts are exposed when hinge is installed, providing secure electrical transmission for access control systems.
• Steel Construction: Standard weight steel construction with permanent fast pin design for durability in commercial environments.
• Signal Transmission Capability: Transmits signals from code readers on doors to remote computers for comprehensive access control integration.
• Complete Installation Package: Packed one per box with all machine screws and installation instructions for professional installation.
• Junction Box Compatible: Designed for use with junction box systems for proper electrical integration and code compliance.

Technical Specifications

• Bearing Type: Ball Bearing
• Commercial/Residential: Commercial
• Corner Style: Square Corners
• Department: Door Hardware
• Duty Level: Medium Duty
• Electronic: Yes
• Hinge Type: Electrified
• Knuckles: 5
• Lock Type: Mortise
• Number of Wires: 6
• PDF:Stanley Security Catalog: https://zensupply.com/content/pdf/best/General_Hinge_Information_ST-HI-0007_WEB.pdf
• PDF:Stanley Security Electrified Hinge Catalog: https://zensupply.com/content/pdf/best/stanley-fbb179electric.pdf
• PDF:Stanley Security Hinge Size Chart: https://zensupply.com/content/pdf/best/hinge-size-chart.pdf
• PDF:Stanley Security Installation Guide: https://zensupply.com/content/pdf/best/hinge-installation.pdf
• Package Includes: Concealed Conductor
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Model: CEFBB179-66
• Product Subgroup: Electrified Hinges
• Product Type: Electrified Hinges
• Series: Electrified Hinges
• Subcategory: Hinges

Installation & Operation

1. Verify electrical requirements and confirm compatibility with existing access control systems before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Install hinge in the center hinge location as specified by manufacturer requirements for proper electrical conductor function.
4. Route and connect the 6-wire configuration (2@24AWG, 4@28AWG) according to manufacturer wiring diagrams and use with appropriate junction box.
5. Configure electrical connections for integration with electric locks, exit devices, or access control systems per application requirements.
6. Restore power and test all functions including electrical continuity, door operation, and integration with connected access control systems.
7. Complete final inspection and document wiring configuration. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.
