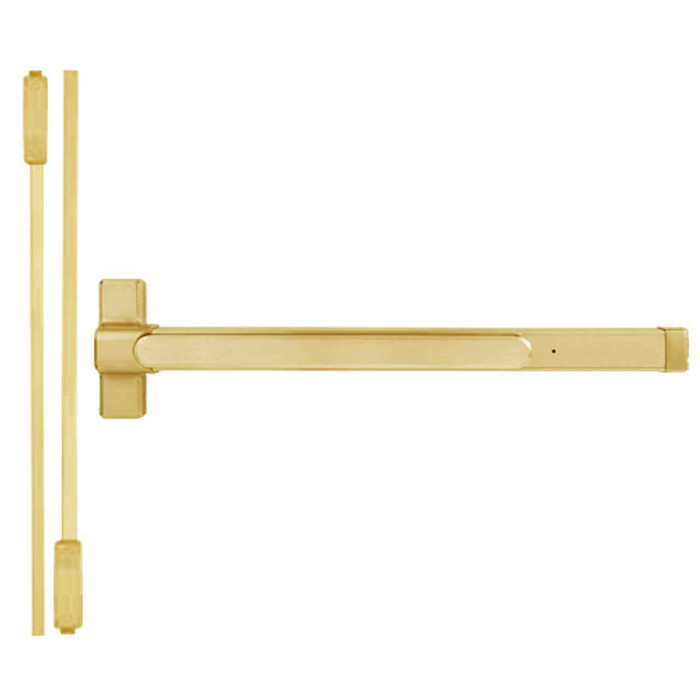

Stanley Security Grade 1 Heavy-Duty Narrow Stile Surface Vertical Rod Exit Device, Less Bottom Rod, with Hex-Key Dogging
The Stanley QED217 is a Grade 1 heavy-duty narrow-stile surface vertical rod (SVR) exit device meticulously engineered for demanding commercial applications. This model is distinctive for its “Less Bottom Rod” (LBR) configuration, providing a sleek and simplified hardware design ideal for streamlined installations.
Featuring hex-key dogging, the QED217 offers secure latching capability when needed. Its thru-bolted trim construction ensures outstanding structural strength and long-term reliability. Available in finishes such as Satin Chrome (626), Bright Brass (605), and Anodized Duranodic Bronze (313AN), it is designed to integrate aesthetically with other Stanley Commercial Hardware components for consistent facility-wide styling.
Specifications
| Specification | Details |
|---|---|
| Model | QED217 – SVR Exit Device, Less Bottom Rod, Hex-Key Dogging |
| Certification | ANSI/BHMA A156.3 Grade 1 Heavy-Duty; UL-listed for panic hardware; ADA compliant |
| Device Type | Narrow-Stile Surface Vertical Rod (SVR) Exit Device |
| Configuration | LBR—Less Bottom Rod design, reducing visible hardware components |
| Dogging Mechanism | Hex-key (manual override) |
| Construction | Thru-bolted trim for enhanced installation security |
| Handing & Sizing | Non-handed, field-reversible, and field-sizeable (e.g., 3-ft → ~2½-ft; 4-ft → ~3-ft) |
| Finish Options | Satin Chrome (626/US26D), Bright Brass (605/US3), Anodized Duranodic Bronze (313AN) |
| Device Lengths / Door Heights | 36″ device for 8′ doors (96″ rods); 48″ device for 7′ doors |
| Latch Bolt Throw | ½″ (12.7 mm) stainless steel throw |
| Door Thickness | Standard 1¾″ (44.5 mm) |
| Stile Width Requirement | Minimum 2″ (50.8 mm) |
| Fasteners Included | Wood screws, machine screws, and sex bolts |
| Trim Compatibility | Compatible with QED200 Series trims (e.g., Sierra, Summit, Slate) |
| Fire Rating | Non–fire rated |
| Warranty | Lifetime mechanical guarantee; 3-year finish warranty |
Features & Benefits
-
Premium Safety & Performance: Adheres to top-tier Grade 1 standards for heavy-duty commercial use
-
Modern, Minimalist Design: LBR layout reduces hardware clutter, ideal for contemporary architectural applications
-
Secure & Durable Construction: Hex-key dogging and through-bolt makeup ensure long-lasting reliability
-
Flexible Deployment: Easily adapted to different door sizes and configurations, reducing installation time
-
Aesthetic Continuity: Available in multiple finishes to coordinate across Stanley’s hardware lines
-
Comprehensive Support: Backed by robust mechanical and finish warranties for maximum peace of mind
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Product Group:
- Exit Devices and Trim
- Series:
- QED200 Series
- Product Subgroup:
- Exit Devices - Rim
- Product Type:
- Exit Devices - Rim
- Subcategory:
- Exit Devices
- Commercial/Residential:
- Commercial
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Wood Door Compatible:
- No
