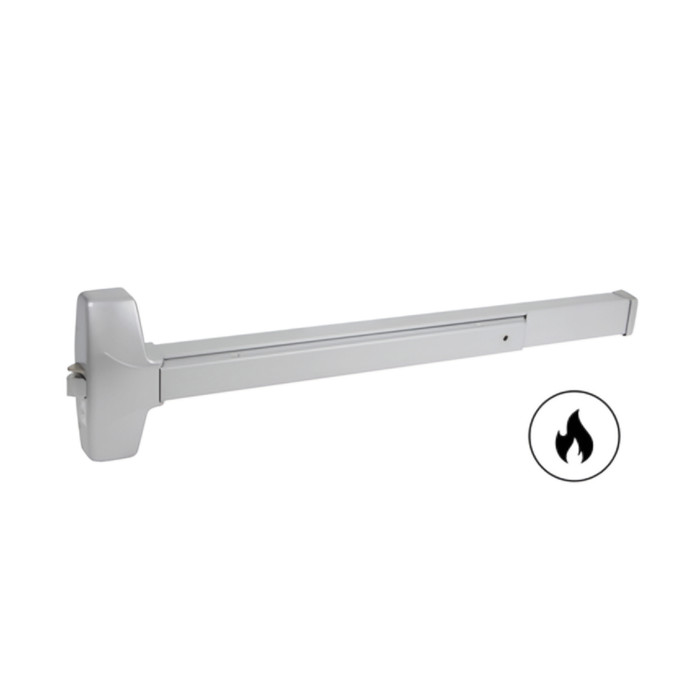

The EF8900 needs a stile of at least 4-3/4 inches (120mm). That is the number to check before you order: measure the lock stile on the aluminum door, and if it comes in under 4-3/4 inches this device will not land on it. Narrow stile in this family still means a minimum, not any stile.

No. The EF8900 is not rated for wood doors. It is a narrow stile rim device built for aluminum and hollow metal openings, so for a wood fire door you need a device listed for wood. Among narrow stile rim devices that do carry wood door compatibility, the Adams Rite 3700 Series is fire rated and listed for wood.

Fire rated, yes. The EF8900 carries a fire rating and is ANSI/BHMA A156.3 Grade 1 certified, with UL/cUL listing for UL 305. Note what UL 305 covers: panic hardware operation. Use the fire rating field and the label on the device itself when your inspector asks which opening it is going on.

No handing to specify. Every device in the 8900 Series is non-handed or reversible by design, so one part covers a left hand or right hand opening. For a property manager stocking spares across a building, that means a single line item instead of two.

A rim device like the EF8900 latches into a strike on the frame at the lock stile, which is what a single storefront leaf or a pair with a mullion wants. It is the simplest install and the least to go wrong. If you have a pair with no center mullion, a rim device has nothing to latch into, and you need a vertical rod device that catches at the head and sill instead, such as the Hager 4601 Series narrow stile concealed vertical rod device.

Both. The 8900 Series meets the requirements of the Americans with Disabilities Act and meets the guidelines of the Buy American Act, which matters on federal, school, and municipal jobs where the spec calls for domestic sourcing. It is a commercial, heavy duty device, not a light residential part.

Staying fire rated and Grade 1, the Dexter ED1000 Series fire rated rim device is the closest straight equivalent. The Arrow FS1250 is a 32 inch fire rated rim device if your leaf is narrower, and the Orca Hardware OED85 Series is a 36 inch fire rated rim device. Where the EF8900 differs is the narrow stile chassis at a 4-3/4 inch minimum stile, so on a slim storefront stile check the alternative's stile requirement before you swap.

Four finishes on the EF8900: 622 flat black, 630 satin stainless steel, 689 aluminum, and 695 duro. On storefront work 689 aluminum is the one that disappears against clear anodized framing, and 630 is the usual pick where the rest of the opening hardware is stainless. Matching an existing bank of doors comes down to reading the finish code off the device already installed.

It will work, but you are paying for a fire label you do not need. For a non rated narrow stile opening, the Corbin Russwin ED4200 is a Grade 1 narrow stile rim device for 1-3/4 inch doors that accepts trim, and the Falcon 19-R is a Grade 1 narrow stile exit only device at 36 inches. Go with the EF8900 when the opening is labeled, or when you want one part number across both rated and non rated doors in the same building.

It is built for abuse: heavy duty rating, Grade 1 under ANSI/BHMA A156.3, a high shock resistant latching mechanism, and internal components in electro-plated steel and corrosion resistant alloy. That alloy spec is the one that matters on a coastal or exterior storefront entrance where a lighter device rusts up inside within a season.

Yes, and that is a reasonable spec strategy. The EF8900 is Grade 1, fire rated, non handed, and ADA compliant, so one device covers left and right hand openings, labeled and unlabeled, with a single finish code running through the building. The constraints on standardizing are the 4-3/4 inch minimum stile and no wood doors, so any wood leaf in the facility needs a different device.
