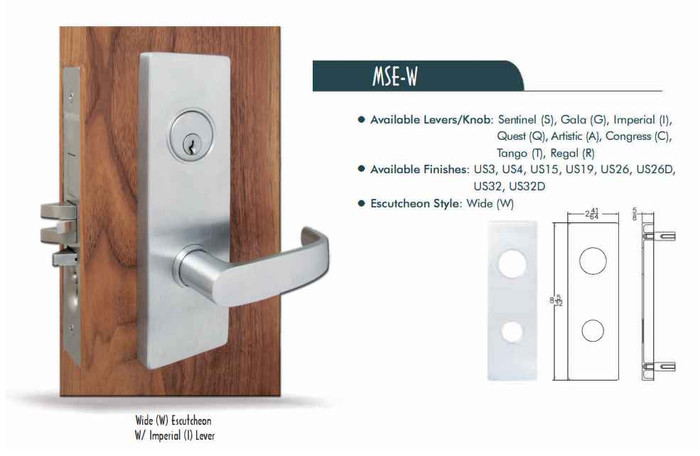

TownSteel MSE-W Series Apartment/Exit/Public Toilet Function - Heavy Duty Wide Escutcheon Mortise Lock, Double Cylinder
Model: TWS-MSE-W-09
If a desired configuration is not in the configurator, send us a live chat or email for us to help.
MSE Series - ANSI Grade 1 Heavy Duty Mortise Lock
Description
MS Series Motorized mortise lock is...
TownSteel
$748.00
$463.37
TownSteel MSE-W Series Classroom Function - Heavy Duty Wide Escutcheon Mortise Lock, Single Cylinder
Model: TWS-MSE-W-05
If a desired configuration is not in the configurator, send us a live chat or email for us to help.
MSE Series - ANSI Grade 1 Heavy Duty Mortise Lock
Description
MS Series Motorized mortise lock is...
TownSteel
$639.00
$395.85
TownSteel MSE Series Apartment/Exit/Public Toilet Function - Heavy Duty Standard Escutcheon Mortise Lock, Double Cylinder
Model: TWS-MSE-09
If a desired configuration is not in the configurator, send us a live chat or email for us to help.
MSE Series - ANSI Grade 1 Heavy Duty Mortise Lock
Description
MS Series Motorized mortise lock is...
TownSteel
Starting at
$715.00
$442.93
TownSteel MSE-W Series Storeroom/Closet Function - Heavy Duty Wide Escutcheon Mortise Lock, Single Cylinder
Model: TWS-MSE-W-07
If a desired configuration is not in the configurator, send us a live chat or email for us to help.
MSE Series - ANSI Grade 1 Heavy Duty Mortise Lock
Description
MS Series Motorized mortise lock is...
TownSteel
$639.00
$395.85
If a desired configuration is not in the configurator, send us a live chat or email for us to help.
MSE Series - ANSI Grade 1 Heavy Duty Mortise Lock
Description
MS Series Motorized mortise lock is designed to handle single opening, stand-alone applications, or can be readily integrated into sophisticated access control systems.
Features:
- Escutcheon trim
- Single opening
- Stand-alone applications
- Ready for access control system integration
- Optional status sensors: REX(request-to-exit), PRIV(privacy), DAJ(door ajar), MKO(mechanical key override)
- 2-year manufacturer’s warranty
Backset
- 2-3/4"
Strike
- ANSI strike, plated\stainless steel
Latch Bolt
- 3/4" projection, stainless steel, split, anti-friction
Guard Bolt
- Stainless steel
Faceplate
- 1-1/4" x 8", stainless steel
Escutcheon
- 10-9/16" x 2-3/8" x 9/32", brass
Lever Parameters
- Forged brass\cast zinc, plated to match finish symbols
Thumb Turn
- Brass, Classic Visible standard
Stop Works
- Stainless Steel, Rocker Type
RESOURCES
- Template: MSS Template
- Brand:
- TownSteel
- Category:
- Mechanical Locks
- Series:
- MSE Series
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Mortise Locks
- Subcategory:
- Mortise Locks
- Function:
- Entrance/Apartment
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Commercial
- Lock Type:
- Mortise
- Keyed:
- Yes
- Lock Function:
- Single Cylinder
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
