TownSteel TownSteel MSE-W Series Front Door/Corridor Function - Heavy Duty Wide Escutcheon Mortise Lock, Single Cylinder TWS-MSE-W-08

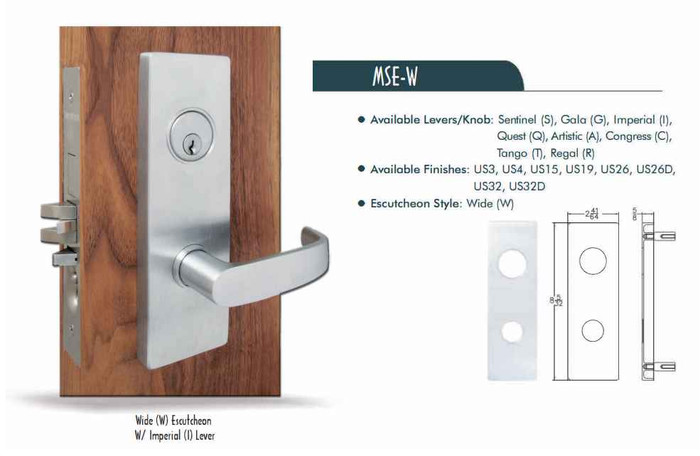

TownSteel MSE-W Series Front Door/Corridor Function - Heavy Duty Wide Escutcheon Mortise Lock, Single Cylinder

(No reviews yet) Write a Review

Model: MSE-W-T-08-626
$665.00
$411.95
Selected Finish is
Selected Lever Types is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$665.00
$411.95
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

If a desired configuration is not in the configurator, send us a live chat or email for us to help.

MSE Series - ANSI Grade 1 Heavy Duty Mortise Lock

Description

MS Series Motorized mortise lock is designed to handle single opening, stand-alone applications, or can be readily integrated into sophisticated access control systems.

Features:

  • Escutcheon trim
  • Single opening
  • Stand-alone applications
  • Ready for access control system integration
  • Optional status sensors: REX(request-to-exit), PRIV(privacy), DAJ(door ajar), MKO(mechanical key override)
  • 2-year manufacturer’s warranty

Backset

  • 2-3/4"

Strike

  • ANSI strike, plated\stainless steel

Latch Bolt

  • 3/4" projection, stainless steel, split, anti-friction

Guard Bolt

  • Stainless steel

Faceplate

  • 1-1/4" x 8", stainless steel

Escutcheon

  • 10-9/16" x 2-3/8" x 9/32", brass

Lever Parameters

  • Forged brass\cast zinc, plated to match finish symbols

Thumb Turn

  • Brass, Classic Visible standard

Stop Works

  • Stainless Steel, Rocker Type

RESOURCES

Manufacturer Resources

Product Specs

Category:
Mechanical Locks
Series:
MSE Series
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Subcategory:
Mortise Locks
Function:
Front Door/Corridor
Keyed Function:
Single Cylinder
Commercial/Residential:
Commercial
Lock Type:
Mortise
Keyed:
Yes
Lock Function:
Single Cylinder
Grade:
Grade 1
Duty Level:
Heavy Duty
!
