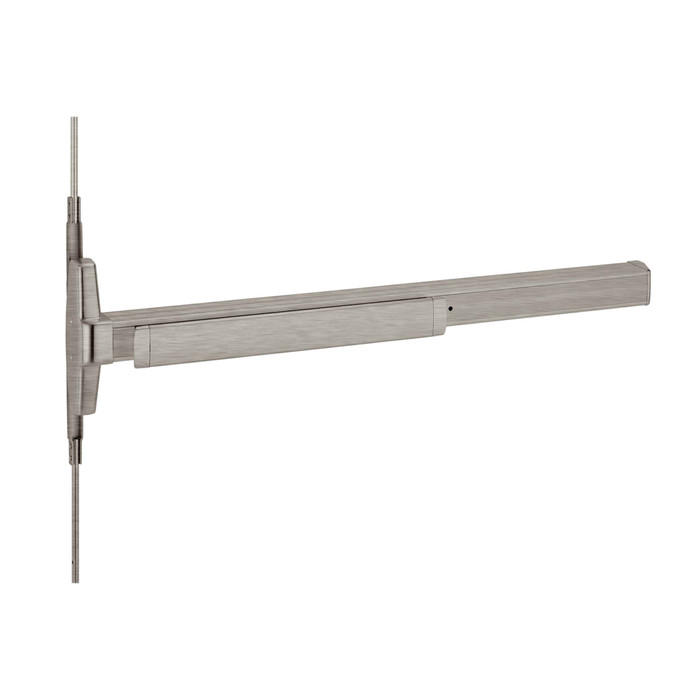

3348A/3548A Concealed Vertical Rod Exit Device
3348A and 3548A for hollow metal single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 3548A has a smooth mechanism case and the 3348A has grooved case.The concealed vertical rod device is non-handed except when the SS (Signal Switch) option is used. See opposite page for available outside trim and device functions.
3348A/3548A fits door stiles as narrow as 2 1/8" (44 mm). Newly designed device has a one piece center case cover.
SERIES
The 33/35A Series devices are narrow stile heavy-duty push pads. Architectural design elements differ slightly between the 33A and the 35A.
The 35A Series device has a smooth mechanism case, while the 33A Series has a grooved mechanism case. The 33/35A Series have all been certified to the highest industry standards and are used in schools, hospitals and government buildings.
Features and Benefits
- The breadth of available options allows for tailoring to any facility’s needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options available
- Retrofit kits available to keep up with changing technology
Specifications
Specifications and certifications are specific to each configuration. See the 33A/35A Series catalogs for more information.
- ANSI/BHMA A156.3 2014 Grade 1 certified
- ANSI/UL 10C (fire-rated only)
- ANSI/UL 305
- CAN/ULC-S104 (fire-rated only)
- CAN/ULC-S132
Device Type
The 33A/35A Series offers a solution for all/most single, double and double egress doors. All devices with Fire rated hardware can be identified with "-F" in their name and SKU.
- No suffix: rim devices
- 27: surface-mounted vertical rod
- 47: concealed vertical rod (5/8” bottom bolt)
- 48: concealed vertical rod (1-1/2” bottom bolt)
- 49: concealed vertical cable
- 50WDC: Wood Door Concealed Vertical Cable
FUNCTIONS & TRIM
A variety of functions and trim options are available, but only the standard options are listed below. Refer to the 33A/35A Series catalog for more information.
Functions
- Classroom: the key locks and unlocks the lever or knob
- Dummy: the rigid mechanical trim for pull operation
- Exit only: no outside trim
- Passage: the lever or knob is always active
- Storeroom: the key retracts the latchbolt, the lever or knob is rigid
33A/35A Series popular trims
- 360: lever or thumbpiece trim, 3 standard functions:
- Classroom (L, T)
- Passage (L-BE, T-BE)
- Dummy (L-DT)
- 386: pull trim, 2 standard functions:
- Storeroom (NL)
- Dummy (DT)
- 388: optional pull trim, 1 standard function:
- Storeroom (NL-OP)
Levers and Finishes
The 33A/35A Series offers many choices for levers and finishes. Refer to the 33A/35A Series catalog for more information.
OPTIONS
With the 33A/35A Series, devices can be retrofitted to keep up with evolving technology with various retrofit kits. Refer to the 33A/35A Series catalog for more information.
Retrofitting an existing device
- CDSI/HDSI: security dogging indicators provide at-a-glance verification of the panic device status
- QEL: electronic latch retraction with limited operational noise
- Electronic switches: can be used as part of an access control system or in a standalone application
- Request to exit (RX)
- Latchbolt monitoring (LX)
Upgrading to a new device
- AX: an accessible device that is certified to meet the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4)
- CX: CHEXIT meets NFPA and IBC requirements for delayed egress; a standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds
Accessories
From mullions to powers transfers and strikes, the 33A/35A Series offers a range of accessories to meet the evolving needs of any facility. Refer to the 33A/35A Series catalog for more information.
Resources and Downloads
- Von Duprin 33/35 Wood Door Templates
- Von Duprin 33/35 Wood Door Trims/Controls/Strikes Templates
- Von Duprin 33/35 Hollow Metal Door Templates
- Von Duprin 33/35 Hollow Metal Door Trims/Controls/Strikes Templates
- Von Duprin Concealed Vertical Cable Data Sheet
- Von Duprin AX Data Sheet
- Von Duprin Auxiliary Catalog
- Von Duprin Full Line Hyperlinks Catalog
- Allegion Architectural Guide Catalog
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Product Group:
- Exit Devices and Trim
- Series:
- 33 & 35 Series
- Grade:
- Grade 1
- Fasteners:
- Includes 1-3/4" and 2-1/4" wood/metal door fasteners, SNB included
- Dimensions:
- 8-3/16" x 1-9/16" x 2-13/32"
- Product Subgroup:
- Exit Devices - Vertical Rod
- Product Type:
- Exit Devices - Concealed Vertical Rod
- Subcategory:
- Concealed Vertical Rod Exit Devices
- Projection:
- 3-13/16"
- Latch Throw:
- 1-1/2"
- Dogging:
- Hex Key Dogging
- Commercial/Residential:
- Commercial
- Device Centerline from Finished Floor:
- 39-13/16"
- Style:
- Push Pads
- Stile Type:
- Narrow Stile
- Fire Rated:
- No
- MAP Policy:
- Yes
- Product Model:
- 3348A/3548A-3'
- Product Function:
- EO, DT, NL, NL-OP, L, L-BE, TL, TL-BE, T, T-BE
- Door Hand Direction:
- Non-Handed
- Door Thickness Range:
- 1-3/4"
- Product Size:
- 36"
