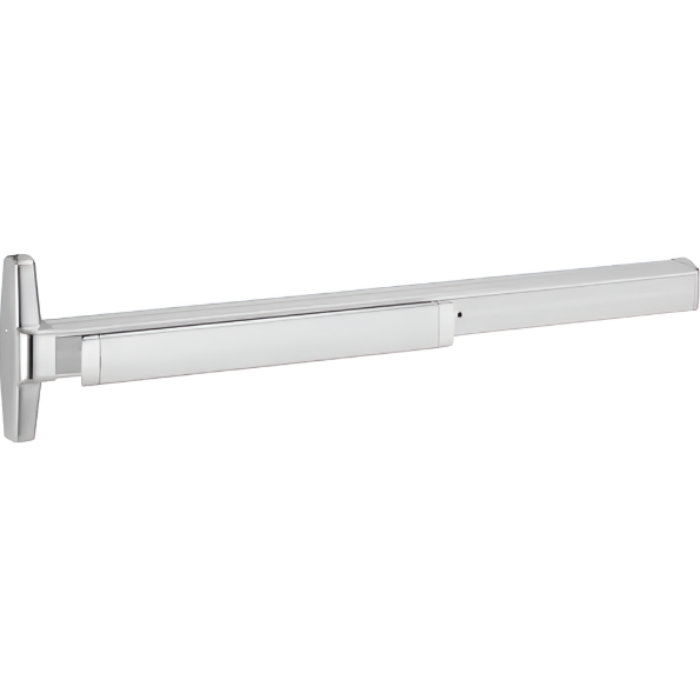

Von Duprin 3549A-EO Narrow Stile Concealed Vertical Cable Exit Device, Exit Only No Trim, 36in x Adjustable up to 96in, Hex Dogging, Grade 1

Von Duprin 3549A-EO Narrow Stile Concealed Vertical Cable Exit Device, Exit Only No Trim, 36in x Adjustable up to 96in, Hex Dogging, Grade 1

3349A and 3549A for hollow metal single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 (LBL option 2014) grade 1. The 3549A has a smooth mechanism case and the 3349A has grooved case. The concealed vertical cable device is non-handed except when the SS (signal switch) option is used. 3349A/3549A fits door stiles as narrow as 2 1/8" (44 mm). Newly designed device has a one piece center case cover.

Specifications:

• Device Lengths:
• 2' - 2' (610 mm) door size
• 3' - 2'4' to 3' (660mm to 914mm) door size
• 4' - 2'8" to 4' (813mm to 1219mm) door size
• Device Centerline From Finished Floor: 39 13/16" (1006mm)
• Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3 13⁄16" (97mm)
• Push bar depressed – 3 1⁄16" (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt 1/2" (13mm) throw
• Door Undercut: 3/4" (19mm) maximum
• Top and Bottom Latch Case: 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
• Vertical Cables: 7/32" (6mm) diameter stainless steel cables
• Fasteners and Sex Bolts (SNB):
• Includes 1 3/4" (44mm) – 2 1/4" (57mm) metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• EL: Electric latch retraction
• ESL: Emergency Secure Lockdown
• HD-EL: Electric latch retraction with hex dogging
• LX: Latch bolt monitor switch. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• LX-RX: Request to exit / latch bolt monitoring. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• HH: Hurricane
• INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
• LBL: Less bottom latch
• PL: Pullman latch
• PN: Pneumatic
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 249: Top
• 349: Bottom

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
