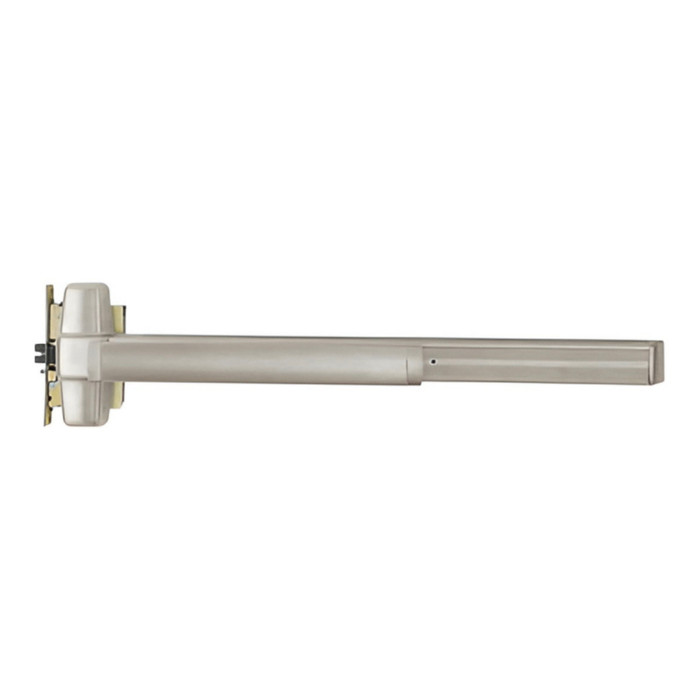

Von Duprin 99EO Grade-1 Rim Exit Device – Wide Stile Pushpad, Panic Rated, Exit Only
The 99 Series by Von Duprin is a high-performance, heavy-duty exit device designed to deliver superior reliability, durability, and safety in demanding environments. Certified to the highest ANSI Grade 1 standards, the 98 Series is trusted in schools, hospitals, government buildings, and other high-traffic facilities where performance and security are essential.
The 99EO (Exit Only) model provides quick and secure egress with a smooth, wide stile pushpad mechanism. Built for long-lasting operation, it features a deadlocking latchbolt, non-handed design, and field-cuttable lengths to accommodate 3′ and 4′ doors.
Key Features
-
Certified Performance: Meets ANSI A156.3-2001 Grade 1 standards for the highest level of durability and reliability.
-
Exit Only Function: EO (ANSI Function 01) configuration for exit-only operation; outside trim sold separately.
-
Smooth Operation: Wide stile pushpad with a streamlined mechanism case for efficient and comfortable use.
-
Fire Rating Options:
-
99-EO: Non-Fire-Rated
-
99-EO-F: UL Listed (3-Hour Fire-Rated) for A or B label doors
-
-
Deadlatching Latchbolt: 3/4" throw latch ensures secure closure and prevents tampering.
-
Dogging Feature: Standard hex key dogging on non-fire-rated models for convenience.
-
Strike Options: Includes 299 roller strike (standard) and 299F for fire-rated devices.
-
Universal Installation: Non-handed design suitable for both metal and wood doors, 1-3/4" thick.
-
Buy American Act Compliant: Made in the USA, meeting all BAA requirements.
Technical Specifications
| Feature | Description |
|---|---|
| Door Widths | 3′0″ (fits 2′4″–3′0″ doors) / 4′0″ (fits 3′1″–4′0″ doors) |
| Stile Type | Wide (Standard) |
| Center Case Dimensions | 8″ H × 2-3/4″ W × 2-3/8″ D |
| Projection | 3-13/16″ (neutral) / 3-1/16″ (depressed) |
| Latchbolt | Deadlatching, 3/4″ throw |
| Fire Rating | Up to 3 hours (98EO-F model) |
| Usage | Heavy Duty |
| Door Thickness | 1-3/4″ |
| Fasteners | Includes screws for both metal and wood doors |
Available Finishes
The 99 Series is offered in a wide selection of high-quality finishes to match any architectural design:
313 Duranodic Dark Bronze, US3 (Bright Brass), US4 (Satin Brass), US10 (Satin Bronze), US15 (Satin Nickel), US19 (Flat Black), US26 (Bright Chrome), US26D (Satin Chrome), US26D-AM (Satin Chrome Antimicrobial), US28 (Anodized Aluminum), and US32D (Satin Stainless Steel).
Manufacturer Resources
Product Specs
- Series:
- 99 Series
- Grade:
- Grade 1
- Fasteners:
- Included for wood or metal doors 1-3/4" and 2-1/4" thick
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Devices - Rim
- Product Type:
- Exit Devices - Rim
- Subcategory:
- Rim Exit Devices
- Latch Throw:
- 3/4"
- Commercial/Residential:
- Commercial
- Stile Type:
- Wide Stile
- Center Case Dimensions:
- 8" x 2-3/4" x 2-3/8"
- Wood Door Compatible:
- No
- MAP Policy:
- Yes
- Tags:
- von duprin 98, von duprin 98 series, von duprin 98 series panic bar, 98 von duprin, von duprin 98eo, von duprin 98 series exit device, von duprin 98l exit device, von duprin series 98, von duprin 98 rim exit device, 98 series von duprin
- Product Model:
- 99
- Collection:
- 99 series
- Door Hand Direction:
- Non-Handed
- Door Thickness Range:
- 1-3/4"
- Product Size:
- 36" or 48"
- Dogging Configuration:
- Hex key dogging standard on non-fired-rated devices
- Fire Rating:
- Option
- Product Projection:
- 3-13/16"
- Product Style:
- Push Pads
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
