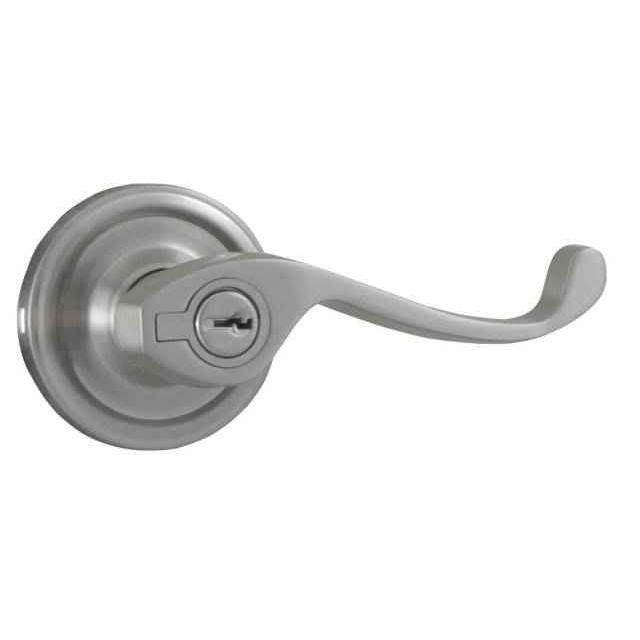

Weslock 0640 Bordeau Lever Keyed Entry Lock with Adjustable Latch and Full Lip Strike

Weslock 0640 Bordeau Lever Keyed Entry Lock with Adjustable Latch and Full Lip Strike

(No reviews yet) Write a Review

Model: R0640UDUDSL23
From the Traditionale Collection
$114.30
$80.01
Selected Finish is
Selected Handing is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$114.30
$80.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK TRADITIONALE COLLECTION 0640 KEYED ENTRY LOCK OVERVIEW

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.

Keyed Entry (Single Cylinder) Function:Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.



Standard features

  • Cylindrical Door Locks
  • Exceeds ANSI A 156.2 Grade II lock standards
  • Removable Knobs/Levers Prevents Scratching During Installation
  • Pre-installed screws concealed behind snap-on rosette
  • Push Button locking in rosette
  • All brass knobs and rosettes
  • Panic-Proof Keylock/Privacy– one turn of interior knob/lever unlocks & opens door
  • Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Fits doors prepared with 2-1/8” cross hole & 1” edge hole
  • Adjusts to door thickness from 1-3/8” to 1-3/4”
  • Optional door thickness up to 2-1/4”
  • Limited Warranty



Weslock Catalog

Weslock General Specifications

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Traditionale
Cross Bore:
2-1/8"
Warranty:
Limited Lifetime Mechanical and Limited Lifetime Finish
Collection:
Traditionale
Keyed:
Yes
Latch Faceplate:
1" x 2-1/4", Removable Radius & Square
Keyed Function:
Single Cylinder
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Residential Door Knobs
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Single Cylinder
Product Attribute:
Cylindrical Locks
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Entrance
Door Strike:
2-1/4" full lip, Radius & Square
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock R0640UDUDSL23 – Frequently Asked Questions

1) Will the Weslock 0640 Bordeau lever fit a door already bored for a standard lockset?
If the door is bored 2-1/8 inch cross hole with a 1 inch edge bore, the 0640 Bordeau keyed entry lever drops straight in. The latch adjusts between the two common backsets, 2-3/8 and 2-3/4 inches, so you don't need to know which one the door was drilled for before you order. Standard door thickness range is 1-3/8 to 1-3/4 inches.
2) Can the Weslock 0640 lever be used on a thick door, like a 2 inch entry slab?
Yes, but you have to order it that way. The 0640 Bordeau ships standard for 1-3/8 to 1-3/4 inch doors, and there is a separate door thickness option covering 1-3/4 to 2-1/4 inches. Measure the slab edge before you pick, because the standard kit will not make up the extra thickness on a heavy entry door.
3) Do I have to specify left or right hand when ordering the Weslock 0640 Bordeau lever?
Yes. The Bordeau lever is sold handed, left hand or right hand, in every finish. Stand outside the door: if the hinges are on your left it's a left hand door. Get this wrong and the lever points up instead of down.
4) Will the Weslock 0640 latch work with the strike plate already in my door frame?
The 0640 comes with a 2-1/4 inch full lip strike, supplied in both radius and square corner, so it matches either a routed square mortise or a round corner prep in the jamb. The latch faceplate is 1 x 2-1/4 inches and is also removable in radius and square, so the door edge prep matches too. In most replacements you can reuse the frame prep without chiseling.
5) Is the Weslock 0640 Bordeau lever suitable for a commercial building or an apartment corridor?
It's a residential lockset. The 0640 is built to exceed ANSI A156.2 Grade 2, which suits houses and light residential entries, but for a commercial corridor or a high traffic institutional door you want a Grade 1 cylindrical lever. From what we stock, the Falcon K101 K Series is Grade 1 heavy duty and fire rated, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant cylindrical lever. For a keyed commercial entry, the Hager 2525 is a Grade 2 commercial entry lever for 1-3/8 to 2 inch doors.
6) What is a comparable keyed entry lever to the Weslock 0640 Bordeau if the door is a commercial opening?
The Weslock 0640 Bordeau is a residential single cylinder keyed entry cylindrical lever on a Weslock keyway with a 5 pin cylinder. For a commercial opening, the Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle covering doors 1-3/8 inch to 2 inch, and the Falcon B511CP6D is a Grade 2 medium duty cylindrical lever with entry/office function. Both keep the lever and the bored prep while moving the opening onto a commercially graded lock.
7) For an institutional opening that needs Grade 1, what cylindrical entry lever replaces a Weslock 0640 Bordeau?
The Weslock 0640 Bordeau exceeds ANSI A156.2 Grade 2. Where a Grade 1 keyed lever is specified, the Dexter C1000 entry/office lock is a Grade 1 clutching keyed cylindrical lever for doors 1-3/8 inch to 1-3/4 inch. Related C1000 functions cover other institutional openings: classroom, classroom security, and asylum, the asylum version covering 1-3/8 inch to 2 inch doors.
8) The tenant door needs to stay locked at all times but always exit freely - what lever instead of a Weslock 0640 Bordeau?
The 0640 Bordeau is an entrance function lock with push button locking in the rosette, so a user can leave it unlocked. A storeroom function keeps the outside lever locked at all times and requires a key on every entry: the Cal-Royal AG05 is a Grade 2 storeroom leverset with a deadlocking latchbolt for doors 1-3/8 inch to 1-3/4 inch, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for doors 1-3/8 inch to 2 inch.
9) Does a Weslock 0640 Bordeau meet a fire rated opening requirement?
The Weslock 0640 Bordeau is a residential single cylinder keyed entry lever. Where the opening carries a fire rating requirement, peers that state a fire rating include the Falcon K101, a Grade 1 heavy duty passage lock with non-handed levers for doors 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110, a Grade 1 vandal resistant passage lever for doors 1-3/4 inch to 2 inch. Both are passage function, so a fire rated opening that also needs a key calls for a keyed lock rated for it.
10) What does single cylinder keyed entry mean on the Weslock 0640, and is it right for a door with glass next to it?
Single cylinder means key on the outside and a pushbutton in the interior rosette, no key needed from inside. One turn of the interior lever unlocks and opens the door, which is what you want for egress. Because there is no exterior key requirement from inside, a door with adjacent glass can be reached through and unlocked by hand, so for a glazed sidelight opening most buyers pair the entry lever with a double cylinder deadbolt instead of relying on the lever alone.
11) I need matching levers for the bedroom and closet doors, not a keyed entry. What goes with the Weslock 0640?
The 0640 Bordeau is entry function only, keyed from outside. For the interior doors on the same job you need passage for halls and closets and privacy for bed and bath. Options we carry include the Kwikset 200BRNL Breton passage and the 300BRNL Breton privacy, both Grade 3 for 1-3/8 to 1-3/4 inch doors, or the Baldwin Estate 5103 which comes in passage, privacy and half dummy on the same 5048 rose. Trim styling will not match the Bordeau exactly, so if a consistent look matters across the house, hold to one family throughout.
12) Can I order the Weslock 0640 keyed to an existing key code I already have on site?
Yes. There's a key code field on the order for the 0640, so if you're adding a door to a Weslock system already running in the building, supply the code and the cylinder is cut to it. It's a 5 pin Weslock keyway, so the existing lock has to be Weslock for the code to carry over.
13) I need a keyed entry lever for a 2 inch thick door. Does the Weslock 0640 handle it or should I look at something else?
At 2 inches you're past the 0640's standard range and at the top of its optional 1-3/4 to 2-1/4 inch build, so it will work if you order the thick-door option. If you'd rather use a lock rated across that span out of the box, the Deltana 6201 Manchester, 6411 Morant and 6431 Linstead entry levers all cover 1-3/8 to 2 inches, and the Dexter C1000 asylum function covers 1-3/8 to 2 inches. The Bordeau stays the residential-styled choice; the Deltana levers are the closer match if you want brass trim in that thickness.
14) Is a Weslock 0640 Bordeau the same thing as a classroom lever?
No. The Weslock 0640 Bordeau is a single cylinder entrance lock, keyed from outside and locked or unlocked from inside by the push button. A classroom function is keyed from the outside only with no inside locking control: the Cal-Royal AG03 is a Grade 2 classroom lever on a 6-pin Schlage C keyway keyed different with a 2-3/4 inch backset, and the Dexter C1000 classroom is a Grade 1 clutching keyed classroom lever for doors 1-3/8 inch to 1-3/4 inch.
15) The door does not need to lock with a key - what lever replaces a Weslock 0640 Bordeau on a hall or closet door?
The 0640 Bordeau is a keyed single cylinder entrance lock, so on a hall or closet door the key function is wasted. Passage levers that leave the door always operable include the Kwikset 200BRNL RDT Breton, a Grade 3 passage lever for doors 1-3/8 inch to 1-3/4 inch, the Bravura Atlanta BV333002, a Grade 2 passage leverset with round trim, and the Callan Asheville AH5011, a Grade 3 passage leverset.
16) What should I use instead of a Weslock 0640 Bordeau on a bedroom or bathroom door?
The 0640 Bordeau is a single cylinder keyed entry lock, which is more lock than a bedroom or bath needs. Privacy locks made for those doors include the Kwikset 300BRNL RDT Breton, a Grade 3 privacy lever for doors 1-3/8 inch to 1-3/4 inch, the Baldwin Estate 5103 privacy lever with the 5048 rose, and the Hager 2540 Grade 2 privacy lock with the Withnell lever for doors 1-3/8 inch to 2 inch.
17) Is a Baldwin Estate 5103 lever a substitute for a Weslock 0640 Bordeau?
Not directly. The Weslock 0640 Bordeau is a keyed single cylinder entrance lock. The Baldwin Estate 5103 with the 5048 rose is sold in passage, privacy, and half dummy versions, and the half dummy is handed left or right. A dummy lever is surface trim with no latch at all, so it cannot secure a door that currently carries a keyed entry lock.
18) What entry lever handles a door thicker than 2-1/4 inches better than a Weslock 0640 Bordeau?
The Weslock 0640 Bordeau adjusts from 1-3/8 inch to 1-3/4 inch with an optional build to 2-1/4 inch. Where a thicker or nonstandard leaf is in play, the Deltana 6201 Manchester, 6411 Morant, and 6431 Linstead entry levers all cover 1-3/8 inch to 2 inch, and the Lockey 1150 keypad lever set covers 1-1/8 inch to 2 inch for a door that is thinner than the Weslock range starts.
19) What replaces a Weslock 0640 Bordeau if I want keyless entry on the same bored door prep?
The 0640 Bordeau is a key-operated single cylinder entrance lock. To drop the key entirely, the Delaney LP250 is a Grade 2 electronic keypad leverlock, the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination for doors 1-1/8 inch to 2 inch, and the Emtek Classic keypad leverset carries the Classic trim design.
20) Can I match a Weslock 0640 Bordeau keyed entry with a matching lever on doors that do not lock?
The Weslock 0640 Bordeau is offered in eight finishes including oil rubbed bronze, matte black, satin nickel, and polished brass, in left and right hand. For non-locking doors in a matched set, dummy and passage trim from a single family keeps the look consistent: the Baldwin Estate 5103 comes as passage and as left and right hand half dummies on the 5048 rose, and the Emtek Arts and Crafts leversets come as dummy pairs in the Arts and Crafts and Hammered lever designs.
21) What entry set gives me a lever and a deadbolt in one instead of a Weslock 0640 Bordeau alone?
The Weslock 0640 Bordeau is a single cylinder keyed entry lever on its own, with a 2-1/4 inch full lip strike in radius and square. For an opening that also needs a deadbolt from the same order, the Callan Bennett BN3001R is a Grade 3 entrance leverset with a deadbolt combo.
22) Are the mounting screws visible on the Weslock 0640 after installation?
No. The screws are pre-installed and hidden behind a snap-on rosette, so the finished face of the Bordeau lever has no exposed fasteners. The levers also come off during install, which keeps you from scratching the finish while you're driving the through-bolts.
23) What is a simpler keyed entry lever than a Weslock 0640 Bordeau for a light-use interior office door?
The Weslock 0640 Bordeau is an all brass residential entrance lever with adjustable 2-3/8 or 2-3/4 inch backset. For lighter interior office duty, the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for doors 1-3/8 inch to 1-3/4 inch, and the Callan Artino 360201 is a Grade 3 entrance leverset.
