Weslock Weslock 1510 Unigard Interconnected Entry Handleset with Impressa Knob, Combined Faceplate & ASA Strikes WES-1510-I

Weslock 1510 Unigard Interconnected Entry Handleset with Impressa Knob, Combined Faceplate & ASA Strikes

(No reviews yet) Write a Review

Model: 01510ININ344D
From the Traditionale Collection
$410.00
$213.28
Selected Finish is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$410.00
$213.28
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

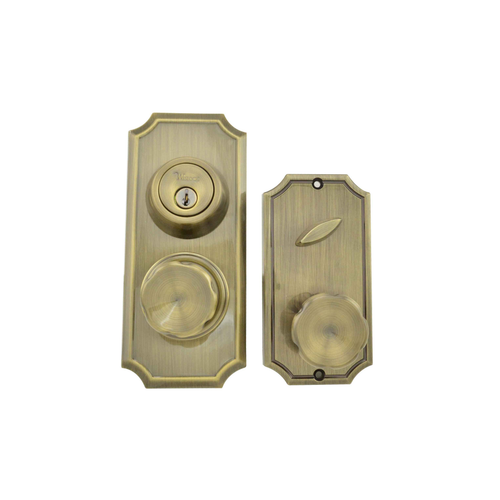

Weslock UNIGARD PREMIERE INTERCONNECTED ENTRY Handleset

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.


Standard features

  • 5-Pin Cylinder, Weslock keyway
  • Tubular design
  • 1” throw deadbolt with two hardened steel rollers prevent sawing
  • Smooth interior nolin plates
  • Panic-Proof– one turn of the interior knob/lever unlocks and opens the door
  • Single-Point Locking and Interconnect
  • Solid brass exterior
  • Available with any interior Traditionale Collection knob or lever style
  • 2-3/8” center to center edge hole spacing
  • Non-adjustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Fits doors prepared with 2-1/8” top and 2-1/8” bottom cross holes & 1” edge hole
  • Adjusts to door thickness form 1-3/4” to 2-1/4”
  • Limited Lifetime Mechanical Warranty
  • Limited Lifetime Finish Warranty


Downloads and Resources

Weslock Catalog

Weslock General Specifications

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Traditionale
Warranty:
Limited Lifetime Mechanical and Limited Lifetime Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Traditionale
Cross Bore:
2-1/8"
Keyed:
Yes
Product Subgroup:
Bored Locksets
Product Type:
Handlesets
Subcategory:
Residential Handlesets
Commercial/Residential:
Residential
Lock Function:
Single Cylinder
IMAP Policy:
Yes
Product Function:
Single Cylinder
Door Thickness Range:
1-3/4" to 2"
Door Strike:
Round Corner Strike
Product Style:
Unigard
Product Category:
Mechanical Locks
Product Substrate:
Brass
Backset (Distance):
2-3/8"
Department:
Door Hardware

Weslock 01510ININ344D – Frequently Asked Questions

1) What door thickness does the Weslock 1510 Unigard handleset handle, and do I have to specify it when ordering?
Thickness is an order choice, not something you adjust in the field afterward. Pick either 1-3/4 to 2 inch (the standard build) or 2 to 2-1/4 inch. That second option covers thick entry doors that most residential handlesets won't reach. Measure the door at the edge before you order, since a 1-3/4 inch slab and a 2-1/4 inch slab take different builds.
2) Is the Weslock 1510 a 2-3/8 or 2-3/4 backset lock?
Both, depending on the latch you fit. The latches are non-adjustable, so each one is either 2-3/8 or 2-3/4 inches, and they carry removable faceplates. The catalogued backset for the 1510 is 2-3/8 inches, which is the shallower of the two standard residential backsets. Measure from the door edge to the center of the bore before ordering, because a non-adjustable latch in the wrong backset will not reach the strike.
3) Does the Weslock 1510 interconnected handleset let someone get out in one motion during a fire?
Yes, that's the point of the interconnect. One turn of the interior knob retracts both the latch and the deadbolt at once, so an occupant leaves without hunting for a thumbturn first. Weslock calls it panic-proof single-point locking. For rental and multi-family openings where a resident may be groggy or in the dark, this behavior is the reason to choose an interconnected set over a separate knob plus deadbolt.
4) How much deadbolt throw does the Weslock 1510 have and will it drill out?
The deadbolt throws 1 inch and carries two hardened steel rollers inside the bolt to defeat a saw blade. A 1 inch throw is full-length by residential standards and needs a strike pocket in the jamb deep enough to take it, not just a surface strike plate. The 1510 ships with a combined faceplate and ASA strikes to suit the jamb prep.
5) Can I key several Weslock 1510 handlesets alike across a building?
Yes. Keyed alike is a no-cost option at order time, so every unit turns on one key, and you can supply an existing key code if you're adding to a set already in service. Otherwise they ship keyed different. The cylinder is a 5-pin in the Weslock keyway, so anything you key alike with it has to be Weslock keyway too.
6) Which entry handlesets cover a 2-1/4 inch thick door instead of stopping at 2 inches?
The Weslock 1510 Unigard is rated for doors 1-3/4 inch to 2 inch. For a thicker slab, the Yale Real Living Ridgefield handleset units run 1-3/4 inch to 2-1/4 inch: the BYRD226NRRX Assure Lock standalone touchscreen deadbolt with Ridgefield handleset, and the BYRD226CBARX Assure Lock with Wi-Fi and Bluetooth. Both replace the keyed cylinder with a touchscreen deadbolt rather than a mechanical key, so the ordering changes from a keyway decision to an electronic one.
7) What is the closest equivalent to the Weslock 1510 Unigard interconnected entry handleset from another brand?
The Schlage Residential JI18/19 is the nearest interconnected equivalent. Like the Weslock 1510, it pairs a keyed deadbolt with a lower lever or knob in a single interconnected assembly. The Schlage JI18/19 is a Grade 2 unit in the JI Series with a passage lower function and a keyed deadbolt above, fitting doors 1-3/8 inch to 1-3/4 inch thick. The Weslock 1510 is a single cylinder residential unit in the Traditionale collection with an Impressa knob, 2-3/8 inch backset, 2-1/8 inch cross bore, and door thickness coverage of 1-3/4 inch to 2 inch, so the two brands cover different ends of the door thickness range.
8) What single cylinder handleset should I use on a 1-3/8 inch door where the Weslock 1510 will not fit?
The Weslock 1510 Unigard covers doors 1-3/4 inch to 2 inch, so a 1-3/8 inch door needs a different unit. The Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is a Grade 2 F Series entrance unit rated for doors 1-3/8 inch to 1-3/4 inch. The Pamex FS7P31 Lexington single cylinder handleset in satin nickel covers the same 1-3/8 inch to 1-3/4 inch range with an entry function. Either one keeps the single cylinder keyed exterior while matching the thinner door.
9) Are the Emtek 3002 Memphis and 3004 Hamilton handlesets substitutes for a keyed Weslock 1510?
No. The Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan brass mortise entrance handlesets are all dummy function, meaning they mount as fixed trim with no latching or locking action. The Weslock 1510 Unigard is keyed with a single cylinder function. Use the Emtek dummy units on an inactive leaf or a fixed panel where the appearance needs to match, and keep a keyed unit on the operating door.
10) What is the difference between the Weslock 1510 and the Baldwin Estates 6542 Tremont entry trim?
The Weslock 1510 Unigard is a bored, tubular single cylinder handleset that fits a door bored with 2-1/8 inch cross holes on a 2-3/8 inch backset. The Baldwin Estates 6542 Tremont is mortise entry trim for a 1-3/4 inch door, so it requires a mortise pocket in the door edge rather than bored holes. Baldwin offers it as 6542ENTR single cylinder and 6542DBLC double cylinder, both entrance function. A door prepped for one will not accept the other without new door prep.
11) What size is the latch faceplate on the Weslock 1510, and will it cover the mortise already cut in my door edge?
The latch faceplate measures 1 x 2-1/4 inches with a round corner, and the faceplates are removable. That's the common residential radius-corner latch footprint, so it usually covers an existing round-corner mortise. A door edge routed for a square-corner or drive-in latch will show a gap or need re-routing.
12) Can I match the interior knob on the Weslock 1510 to the other doors in the house?
The 1510 ships with the Impressa knob inside, and it can be built with any interior knob or lever from the Weslock Traditionale collection. So if the passage and privacy sets on the rest of the openings are Traditionale, the entry door can carry the same lever or knob shape rather than standing out.
13) Should I use an interconnected handleset or a separate handleset and deadbolt?
Interconnected wins where one-motion egress matters, apartments, rentals, anywhere an occupant needs the door open in a hurry, because the interior knob pulls the deadbolt and latch together. Separate units, like the Schlage Residential F60 Addison keyed entry handleset or the Kwikset 687 Amador, mean two actions to get out but let you replace the knob and the deadbolt independently. If you want interconnected from another brand, the Schlage JI18/19 is an interconnected set with a keyed deadbolt, though its interior is passage function rather than the keyed entry the 1510 provides.
14) Is the Weslock 1510 handleset suitable for a commercial entrance?
No. The 1510 Unigard is a residential handleset with a tubular design. For a commercial opening on a traffic path, you want a Grade 1 or Grade 2 cylindrical or mortise lockset, not a residential tubular handleset. Use the 1510 on houses, townhomes, and apartment entry doors where the look of a brass handleset matters.
15) I want a handleset with a keypad instead of a key. What are my options?
The Weslock 1510 is mechanical only, a 5-pin keyed cylinder with no electronics. For keypad entry on a handleset, the Yale Assure BYRD226NRRX is a standalone touchscreen deadbolt with the Ridgefield handleset, the BYRD226CBARX adds Wi-Fi and Bluetooth, and the Kwikset 815SCEHFL San Clemente pairs a Smartcode keypad deadbolt with a Halifax lever interior. All three fit 1-3/4 inch doors; the Yale pair goes up to 2-1/4 inches.
16) Does the Emtek or Baldwin mortise handleset drop into the same prep as the Weslock 1510?
No. The 1510 is a bored, tubular interconnected set going into two 2-1/8 inch cross bores. The Baldwin Estates 6542 Tremont and the Emtek 3000-series Memphis, Hamilton, Melrose, and Manhattan sets are mortise trim, which needs a mortise pocket routed into the door edge, entirely different prep. Also note the Emtek 3002, 3004, 3005, and 3006 listed here are dummy function, no latching at all, for the inactive leaf of a pair.
17) What handleset gives a keypad or app entry instead of the Weslock 1510 key cylinder?
The Weslock 1510 Unigard is keyed with a single cylinder. For keypad or app access on a handleset, the Kwikset 815SCEHFL-CP913CNT San Clemente handleset pairs a Halifax lever interior with a contemporary SmartCode keypad electronic deadbolt, SmartKey, RCAL latch and RCS strike, in the Signature Series for a 1-3/4 inch door. The Yale BYRD256 CBARX Assure key free touchscreen deadbolt with Ridgefield passage handleset is Wi-Fi function for doors 1-3/4 inch to 2-1/4 inch and uses a passage lower handle with the credential handled at the deadbolt.
18) I need a handleset exterior only to reuse existing interior trim - what are the options?
The Weslock 1510 Unigard ships as a complete interconnected entry set with an Impressa interior knob. If only the exterior half is wanted, Kwikset builds the 687 Amador and 687 Belleview as exterior only single cylinder keyed entry handlesets: the KWI-687AMD-S Amador with SmartKey, the KWI-687AMD-SMC Amador with SC1 keyway SmartKey, and the KWI-687BW-S Belleview with SmartKey. All three are Grade 3 entrance function for a 1-3/4 inch door.
19) Which solid brass entry handlesets compare to the Weslock 1510 for a traditional look?
The Weslock 1510 Unigard is built with a brass substrate in the Traditionale collection. Deltana offers several solid brass entry handlesets in the same vein: the 803871B Hanover, the 815871 St. Ann, and the 825871 Kingston, all entry function solid brass. Deltana also builds the 810871 Montego handleset, which covers doors 1-3/8 inch to 2 inch, a wider range on the thin end than the 1510 range of 1-3/4 inch to 2 inch.
20) What is the Weslock 1510 handleset made of and how is it finished?
Exterior is solid brass, finished in satin nickel. Interior plates are smooth nolin, and the mounting screws are concealed so nothing shows on the face. Solid brass rather than a plated zinc casting matters on an exterior door where the trim sees weather every day.
21) How does the Weslock 1510 with Impressa knob compare to a Baldwin Wesley handleset with knob interior?
Both put a knob on the interior of an entry handleset. Baldwin builds the Wesley handleset in entrance function with a choice of interior knob: the 180WYHXATK with an Alcott knob and the 180WYHXCYK with a Carnaby knob. The Weslock 1510 Unigard is a single cylinder interconnected set with the Impressa knob interior, a 2-3/8 inch backset, and a round corner strike. The choice comes down to interior knob style and the door prep already in the slab.
