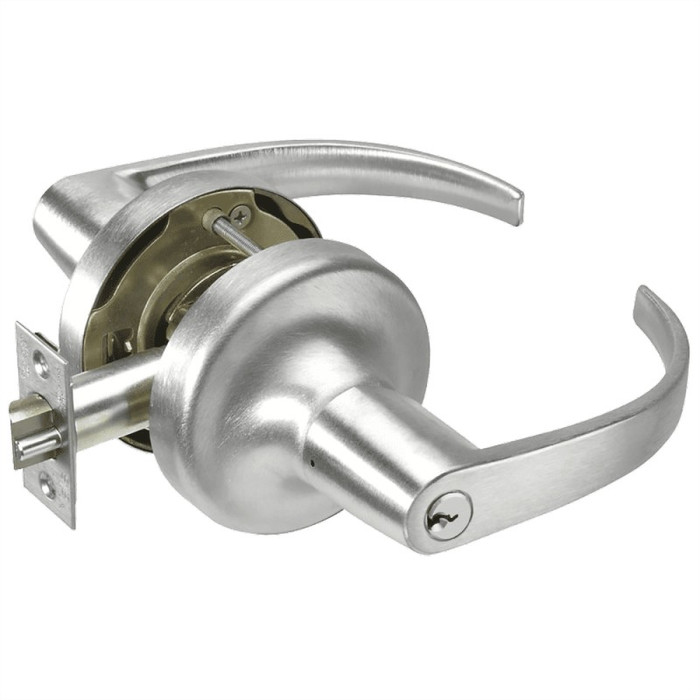

Accentra 5318LN Pacific Beach Grade 2 Classroom Security Double Cylinder Cylindrical Lever Lock

Accentra 5318LN Pacific Beach Grade 2 Classroom Security Double Cylinder Cylindrical Lever Lock

Professional Classroom Security Lever Lock Solution

The Accentra 5318LN Pacific Beach lever lock delivers Grade 2 security performance for commercial and institutional applications. This double cylinder cylindrical lever lock features heavy-gauge steel construction with zinc-plated, dichromated mechanism and adjustable door thickness from 1-3/4" to 2". ANSI/BHMA A156.2 Series 4000 Grade 2 certified with UL/cUL fire rating up to 3 hours for code compliance in demanding environments.

Professional Features & Benefits

• ANSI/BHMA: A156.2, Series 4000 Grade 2

• UL/cUL: UL/cUL fire-rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Heavy-gauge steel, zinc-plated, dichromated
• Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order

• Latchbolt: 1/2" stainless steel throw

• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
• Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.

• Fronts: Universal for both flat and beveled door edges

• Lead Shielding: Not available
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
• Reversibility: Non-handed
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
• Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
• Warranty: 5-year mechanical

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Educational Facilities and Classroom Security
• Commercial Office Buildings
• Healthcare Institutions
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Industrial and Warehouse Facilities
• Institutional Security Applications

Why Choose Accentra Quality?

Accentra lever lock products deliver professional-grade reliability with heavy-gauge steel construction and zinc-plated, dichromated mechanisms rated for demanding commercial applications. Grade 2 ANSI/BHMA certification with UL/cUL fire rating up to 3 hours ensures code compliance and dependable performance. 5-year mechanical warranty provides added confidence for institutional and commercial security installations where reliable access control is essential.
