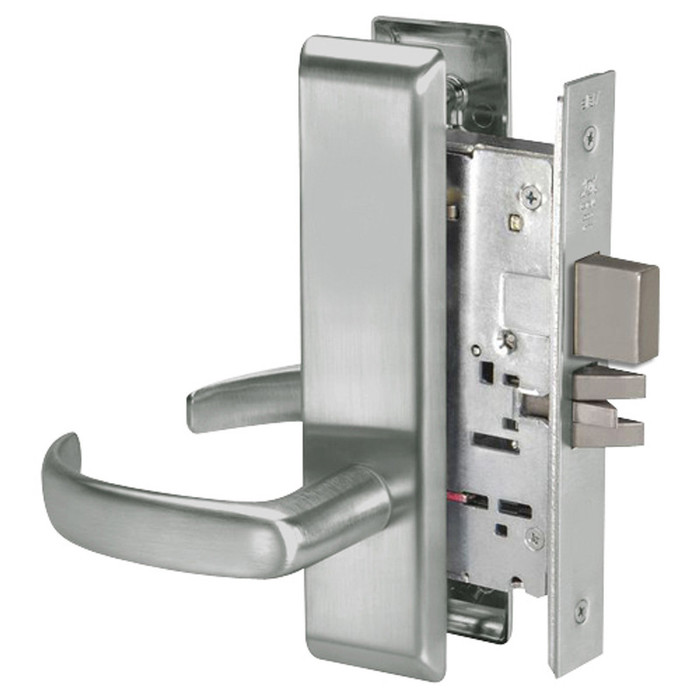

Yale 8802FL Grade 1 Privacy with Deadbolt Mortise Lock, Pacific Beach Lever

Yale 8800FL Series Mortise Locks

ASSA ABLOY ACCENTRA™ 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.

FEATURES & BENEFITS

SPECIFICATIONS

• Function Description: Latchbolt retracted by knob/lever either side. Deadbolt operated by thumbturn inside. When the deadbolt is projected, outside knob/lever is automatically locked. Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
• ANSI/BHMA Code: A156.13
• ANSI/BHMA Series: Series 1000
• Backset Depth (Standard): 2-3/4"
• Cylinder Format: Conventional, Large Format, Small Format
• Door Thickness (Standard): 1-3/4"
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2-3/4"
• Minimum Backset: 2-3/4"
• Maximum Door Thickness: 3-1/4"
• Minimum Door Thickness: 1-3/4"
• Number of Keys: 2
• Strike Type: Curved Lip
• UL Listed: Yes
• ULC Listed: Yes
• Warranty: 10-year (Mechanical) / 2-year (Electrified) limited warranty

DOWNLOAD & RESOURCES

• Yale 8800 Mortise Locks Series Catalog
