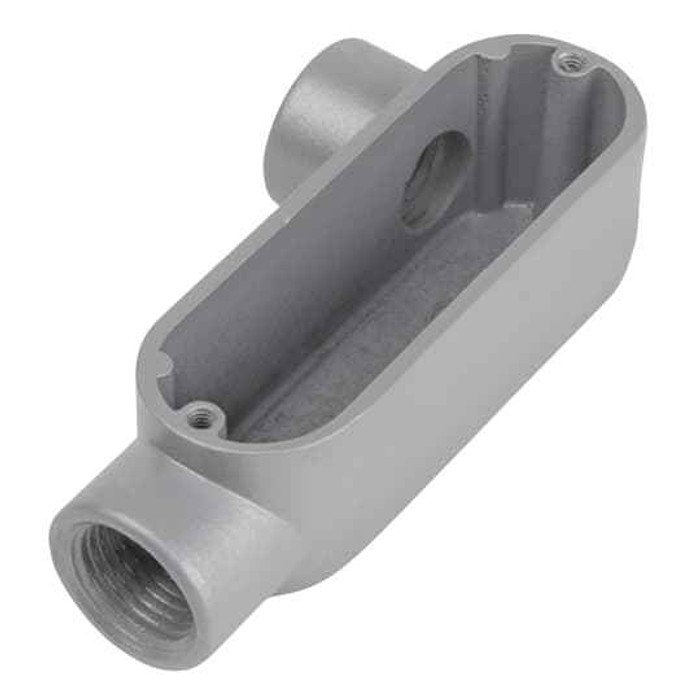

1 1/4INCH RIGID LR CONDUIT BODY
Manufacturer Resources
Product Specs
- Application:
- For Use with Rigid/IMC Conduit
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Fittings
- Product Type:
- Conduit Body - Series A - Rigid/IMC
- Department:
- Electrical
- Product Subgroup:
- Conduit Bodies
- Product Material:
- Aluminum Die Cast
Red Dot ALR-4 – Frequently Asked Questions
1) What conduit size does the Red Dot ALR-4 conduit body take?
The ALR-4 is a 1-1/4 inch conduit body. Both hubs are threaded for 1-1/4 inch rigid or IMC conduit, so it goes inline on a 1-1/4 inch run and will not adapt sizes. For other trade sizes you need the matching ALR part in that size.
2) Will a Red Dot ALR-4 thread onto EMT?
No. The ALR-4 is built for rigid and IMC conduit, which uses NPT-style threaded ends. EMT is unthreaded and needs set-screw or compression fittings, so you would use an EMT-style conduit body instead.
3) Is the Red Dot ALR-4 body metal or plastic?
Die cast aluminum. That makes it a lighter body than a malleable iron fitting of the same size, and it keeps the metallic conduit path continuous for equipment grounding. On aluminum, watch direct contact with dissimilar metals in wet or coastal locations.
4) Can I use a 1-1/4 inch LR conduit body as a splice box?
No. A conduit body like the ALR-4 is a pull and access point, not a junction box. Splices are only permitted in a conduit body that is durably marked with its volume and large enough for the conductors, so for 1-1/4 inch work plan on pulling through and splicing in a box.
5) Is Red Dot ALR-4 the right part number for a 1-1/4 inch rigid LR?
Yes, ALR-4 is the manufacturer part number for the Red Dot 1-1/4 inch LR conduit body in die cast aluminum for rigid/IMC. The -4 suffix is the 1-1/4 inch size in the Series A line.
