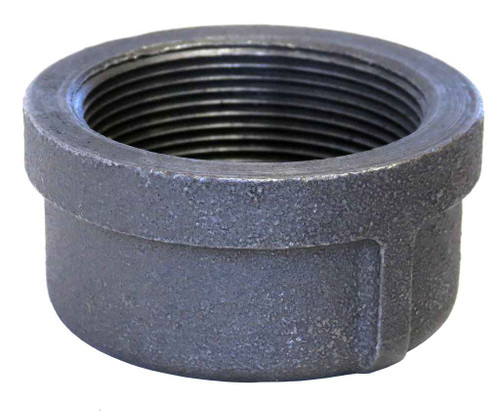

1 BLK MI CAP
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1
- Size 2:
- 0
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Caps
- Product Type:
- Cap
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.38 lbs
ASC Engineered Solutions 318900602 – Frequently Asked Questions
1) Will a 1 inch black malleable iron cap thread onto standard 1 inch black pipe?
Yes. The ASC Engineered Solutions 1 inch black malleable iron cap has a 1 inch FPT (female pipe thread) end, cut to ASME B1.20.1 NPT threads, so it screws directly onto any standard 1 inch male pipe thread or nipple. Use pipe dope or PTFE tape on the male threads to seal.
2) Does this cap meet spec for a commercial job calling out ASME B16.3 malleable iron fittings?
It does. The 1 inch ASC black cap is dimensioned and pressure rated to ASME B16.3, threaded to ASME B1.20.1, and the casting conforms to ASTM A-197. Those are the three call-outs that typically appear on a mechanical drawing for threaded malleable iron fittings, plus a UL/FM rating if the line is fire protection.
3) Black versus galvanized malleable iron cap - which one do I need?
Black is the uncoated finish and is the usual choice for gas, fire sprinkler, steam, and closed-loop hydronic lines where the pipe itself is black. Galvanized is used on domestic water and wet or exposed runs where corrosion is the concern. This ASC cap is a black finish malleable iron fitting, so match it to black pipe rather than mixing it into a galvanized system.
4) What part number do I order for the ASC 1 inch black malleable iron cap?
Manufacturer part number 318900602 from ASC Engineered Solutions. One size only, 1 inch FPT, black finish, standard class.
