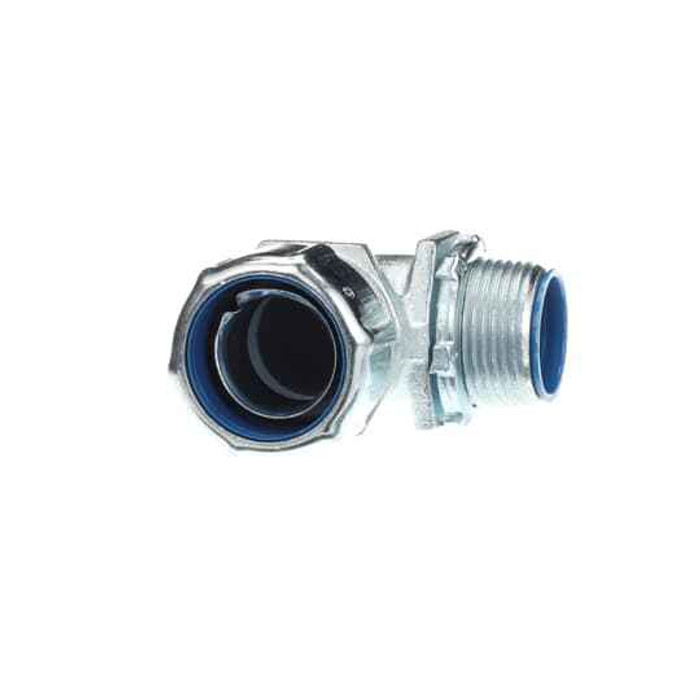

1 IN INSUL 90 DEGREE LIQ TIGHT CON
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Type:
- 90 Degree Liquidtight Connector
- Department:
- Electrical
- Product Material:
- Malleable Iron
- Product Group:
- Conduit & Raceway
- Product Subgroup:
- Liquidtight Conduit & Fittings
Thomas & Betts 5354 – Frequently Asked Questions
1) Is the Thomas & Betts 5354 a straight or angled liquidtight fitting?
It's a 90 degree fitting. The conduit leaves the box at a right angle, which is what you want when the enclosure sits tight against a wall or structure and a straight connector would need more sweep room than you have. For a run coming straight into the box, use a straight liquidtight connector instead.
2) What is the Thomas & Betts 5354 liquidtight connector made of?
Malleable iron. That's the heavier-duty body material compared with die cast zinc fittings, and it holds up to mechanical abuse on industrial equipment connections, motor whips, and plant MRO work.
3) Does the Thomas & Betts 5354 have an insulated throat?
Yes, the 5354 is an insulated 90 degree liquidtight connector. The insulated throat protects conductor insulation as wire is pulled through the fitting, which is what inspectors look for on conductor entries into boxes and enclosures.
4) Can I use the Thomas & Betts 5354 on a motor connection or outdoor equipment whip?
That's the typical use. A 90 degree liquidtight connector seals the conduit entry against moisture, so it suits motor terminal boxes, rooftop units, pump controls and similar wet or damp locations where liquidtight flexible conduit is run. Match it to 1 inch liquidtight conduit and a 1 inch opening.
5) Will the Thomas & Betts 5354 work with flexible metal conduit (Greenfield) instead of liquidtight?
No. The 5354 is built for liquidtight flexible conduit, where the sealing ring grips the PVC jacket. Standard FMC has no jacket to seal against, so you need a dedicated flex connector for that run.
6) What is the Thomas & Betts part number for a 1 inch insulated 90 degree liquidtight connector?
Part number 5354. Order by that MPN if you're matching existing fittings on a job or standardizing stock across a facility.
