Red Dot BLL-3 1 INCH EMT LL CONDUIT BODY

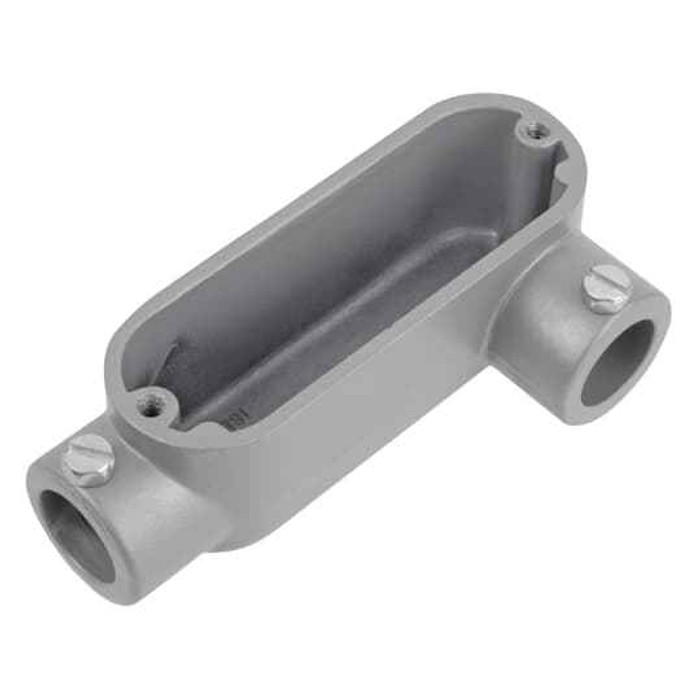

Red Dot 1 Inch EMT LL Conduit Body - Aluminum Die Cast Construction

(No reviews yet) Write a Review

Model: BLL-3
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$166.06
$158.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Red Dot 1 Inch EMT LL Conduit Body - Aluminum Die Cast Construction

Professional EMT Conduit System Component

The Red Dot 1 Inch EMT LL Conduit Body delivers reliable electrical conduit routing and junction capabilities with durable aluminum die cast construction. Specifically designed for use with EMT conduit systems, this Series B conduit body provides professional-grade performance for electrical installations requiring secure conductor routing and access points.

Professional Features & Benefits

  • 1 Inch EMT Compatibility: Precisely engineered for seamless integration with 1 inch EMT conduit systems, ensuring proper fit and electrical continuity.
  • Aluminum Die Cast Construction: Robust material provides excellent durability, corrosion resistance, and long-term reliability in electrical applications.
  • LL Configuration: Specialized conduit body design enables efficient conductor routing and access for maintenance and modifications.
  • Series B Design: Professional-grade conduit body specification ensures compliance with electrical installation standards and practices.
  • EMT System Integration: Purpose-built for EMT conduit applications, providing secure connections and reliable electrical performance.

Technical Specifications

  • Application: For Use with EMT Conduit
  • Department: Electrical
  • Material: Aluminum Die Cast
  • Number Of Batteries: 0
  • Product Group: Conduit & Fittings
  • Product Subgroup: Conduit Bodies
  • Product Type: Conduit Body - Series B - EMT

Professional Applications

  • Commercial Electrical Installations
  • Industrial Conduit Systems
  • Residential Electrical Projects
  • Maintenance and Retrofit Applications
  • Professional Electrical Contracting
  • Building Infrastructure Systems

Why Choose Red Dot Quality?

Red Dot conduit bodies deliver dependable performance with aluminum die cast construction that ensures long-lasting durability and reliable electrical connections. Trust Red Dot's professional-grade components for your EMT conduit system requirements.

Manufacturer Resources

Product Specs

Application:
For Use with EMT Conduit
Number Of Batteries:
0
Product Group:
Conduit & Fittings
Product Type:
Conduit Body - Series B - EMT
Department:
Electrical
Product Subgroup:
Conduit Bodies
Product Material:
Aluminum Die Cast

Red Dot BLL-3 – Frequently Asked Questions

1) What does the LL in the Red Dot BLL-3 conduit body mean, and when do I use it instead of an LB or LR?
LL means the opening and the side outlet are on the left when you face the cover with the run going up and down. An LB turns the conduit back through a wall, an LR turns to the right, an LL turns to the left. Pick LL when the branch has to leave the run on the left side, and order the LB or LR version if the direction is anything else. The BLL-3 is a 1 inch EMT body, so the direction is fixed at manufacture, not field adjustable.
2) Will the Red Dot BLL-3 conduit body work on rigid or IMC conduit, or only EMT?
EMT only. The BLL-3 is a Series B body built for 1 inch EMT and takes the EMT setscrew style connection. Threaded rigid or IMC needs a threaded conduit body (Form 7 / Series 5 type) instead, because threaded pipe will not land in an EMT hub.
3) Does the Red Dot BLL-3 come with a cover and gasket, or do I order those separately?
Covers and gaskets for Series B conduit bodies are ordered as separate line items in the matching 1 inch size. Plan on a cover plus gasket per body if the location needs to be closed up; the die cast aluminum body itself is the only thing the BLL-3 model number covers.
4) Is a die cast aluminum conduit body OK outdoors or in a damp location?
Aluminum die cast holds up well outdoors and resists corrosion, which is why it is the common choice for exposed EMT work on building exteriors and in damp commercial spaces. Two cautions: aluminum should not be set in direct contact with concrete or embedded in masonry, and in a wet location the body needs its cover and gasket installed to keep water out.
5) Can I use the BLL-3 as a pull point and splice my conductors inside it?
An LL body like the BLL-3 is intended as a change of direction and a pull access point. Whether you can splice inside depends on the body's cubic inch capacity against the number and size of conductors, so on a 1 inch run with large conductors it is usually a pull point only. Removing the cover gives you access for pulling and for later maintenance without breaking the EMT run.
6) I need to standardize conduit bodies across a building. Does Red Dot Series B cover other configurations in 1 inch?
Yes. Series B is Red Dot's EMT conduit body line and the LL shown here as model BLL-3 is one configuration within it, alongside the other letter types used for back, right and tee routing in the same trade sizes. Specifying one series across a facility keeps covers and gaskets interchangeable by size, which cuts what maintenance has to stock.
7) How do I make sure the EMT run stays grounded through a Red Dot aluminum conduit body?
Ground continuity through an EMT body relies on the setscrew connections being tightened down on clean tubing, metal to metal. Aluminum die cast carries the bond, but if the installation calls for an equipment grounding conductor to be run and bonded, use a grounding bushing or screw at the body rather than relying on the raceway alone.
