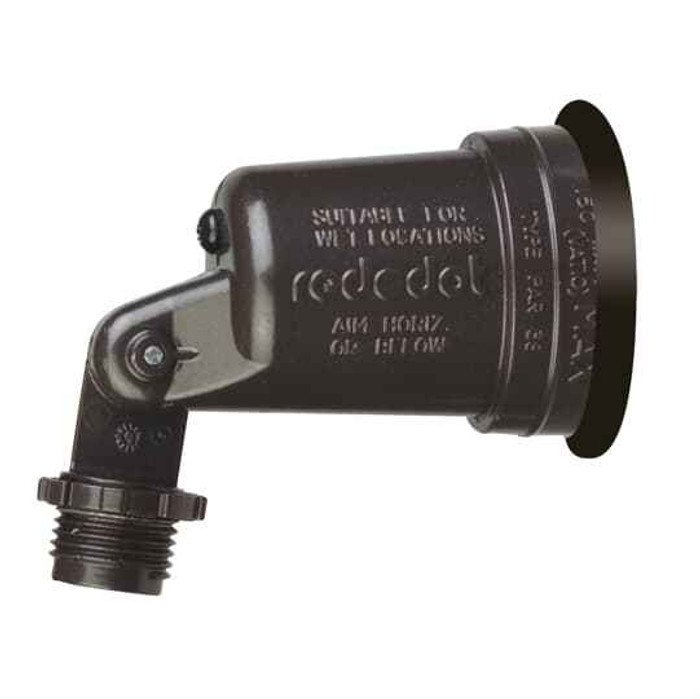

1-LAMPHOLDER BRONZE W/GASKET
Manufacturer Resources
Product Specs
- Construction Material:
- Die Cast Aluminum
- Number Of Lamps:
- 1
- Power Consumption Pcons :
- 150 W
- Product Group:
- Lighting & Outdoor
- Product Net Depth Length:
- 4-23/32 in
- Product Type:
- Landscape lighting
- Product type2:
- Landscape lighting
- Selling Unit Of Measure:
- each
- Style Of Component:
- Lampholder
- Department:
- Electrical
- Product Subgroup:
- Lighting Fixtures
- Product Color:
- Bronze
Red Dot S500BREG – Frequently Asked Questions
1) How many lamps does the Red Dot S500BREG hold and what wattage can I put in it?
One lamp, rated 150 W. That is the ceiling for the holder, so any lamp you install has to draw 150 watts or less. If you need two heads on the same box, this single lampholder is the wrong part.
2) Is the Red Dot S500BREG a complete light fixture or just the holder?
It is a lampholder, not a finished fixture. You supply the lamp, and it mounts to a weatherproof outlet box, which is not part of this item. Order the box and the lamp separately when you spec it.
3) What is the Red Dot S500BREG lampholder made of, and will it hold up outdoors?
Die cast aluminum body in a bronze finish, and it ships with a gasket. The gasket is what seals the lampholder against the box or fixture face, which is why this style is used on exterior openings rather than a bare interior porcelain holder.
4) How far does the S500BREG lampholder stick out from the box?
Net depth is 4-23/32 inches. That is the number to check against a tight soffit, a shallow eave, or anywhere a fixture near a walkway or door swing could get clipped.
5) What part number do I order for the bronze Red Dot single lampholder with gasket?
Red Dot S500BREG. It is sold each, one lampholder per order, in bronze. There is no finish or size choice to specify.
6) I'm standardizing exterior lampholders across a property. Will the S500BREG match my other bronze fixtures?
Bronze is the only finish this holder comes in, so it matches a bronze exterior package but not a white or gray one. For a fleet buy, the spec to hold constant is the bronze die cast aluminum body, single lamp, 150 W maximum.
