Metallics RSB95 10-24 x 1-1/2 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.36
$0.36

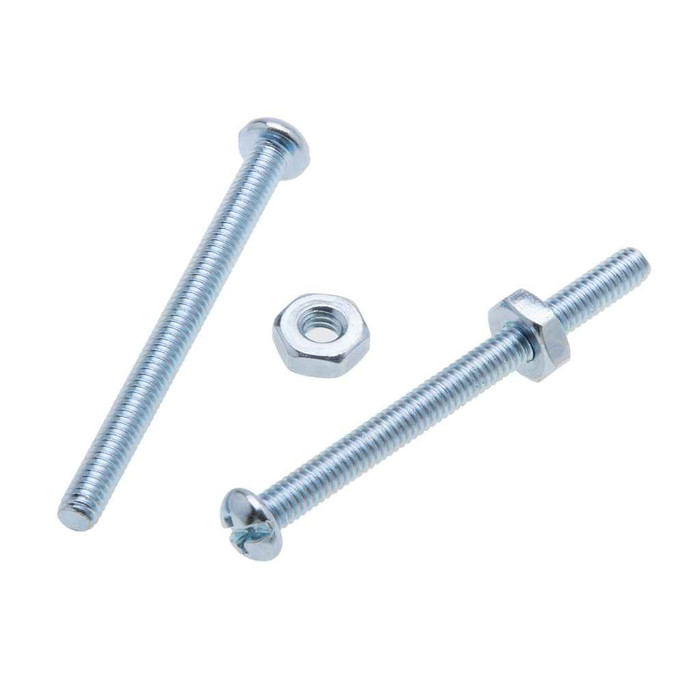

Metallics RSB95 10-24 x 1-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

Metallics RSB95 10-24 x 1-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - Each

(No reviews yet) Write a Review

Model: RSB95
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.36
$0.36
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 1-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

  • Additional Notes

    • Standard Package Square Plastic Jar | Two drives in one head | other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.

  • Features

    • Round head with slotted and Phillips Drive
    • 10-24 Diameter, 1-1/2" Length
    • Steel Zinc Material
    • Includes Hex nut
    • Hex Machine Screw Nut is designed to be used specifically with machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ANSI B18.6.3
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#2
Fastener Head Height:
0.123 - 0.137 in.
Fastener Head Type:
Round
Fastener Head Width:
0.334 - 0.359 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Clamshell
Phillips Recess Depth:
0.119
Phillips Recess Diameter:
0.182 - 0.195
Phillips Recess Width:
0.031
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.15 lbs
Product Width:
3 in
Slot Depth:
0.065 - 0.087
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
24
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Stove Bolt
Type2:
Stove Bolt
Series:
RSB
Product Finish:
Zinc
Product Details:
Stove Bolt
Product Material:
Steel Zinc

Metallics RSB95 – Frequently Asked Questions

1) Does the Metallics RSB95 stove bolt come with nuts, or do I have to buy those separately?
Each RSB95 stove bolt ships with a hex machine screw nut, so no separate nut order is needed. The nut is the machine screw nut style, cut to mate with machine screw threads rather than coarse bolt threads, and the bolt is 10-24 with right hand threads at 24 threads per inch.
2) Do Metallics RSB95 stove bolts qualify for a Buy American or ARRA funded job?
No. The RSB95 is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. On federally funded work with domestic sourcing requirements, you will need a domestically produced machine screw instead.
3) What driver do I need for the Metallics RSB95 combo head?
A #2 Phillips bit drives it, and the same head takes a flat blade because the RSB95 has a combination slotted/Phillips recess. The Phillips recess runs 0.182 to 0.195 in. diameter at 0.119 in. deep, and the slot is 0.05 to 0.06 in. wide. Useful on a ladder when you only have one driver on you.
4) How much does the round head stick up, and will it foul a cover plate?
The round head on the RSB95 measures 0.334 to 0.359 in. across with a head height of 0.123 to 0.137 in., so it sits a little proud of the surface. That is fine for strap, bracket, and box work, but if you need the head flush in a countersunk hole, a round head is the wrong profile, go to a flat head machine screw instead.
5) What standard are these Metallics stove bolts made to, and how strong are they?
Dimensions follow ANSI B18.6.3, the machine screw standard, so head and thread geometry interchanges with other screws built to it. Material is AISI 1006 to 1022 steel at Rockwell B70 to B100 hardness, with a minimum tensile strength of 60,000 psi.
6) Is zinc plated steel good enough for outdoor or damp locations?
The RSB95 is zinc plated steel, which is a mild indoor corrosion finish, fine for dry interior boxes, panels, and mechanical rooms. For wet locations, exterior runs, or coastal exposure, specify stainless rather than zinc plated carbon steel.
7) How are these RSB95 stove bolts packaged, and what is the minimum I can order?
They sell in a 100 piece jar with a minimum order of 100, so you are buying a jar rather than loose count. Packaging is clamshell/plastic jar, and the packed weight runs 1.15 lbs.
