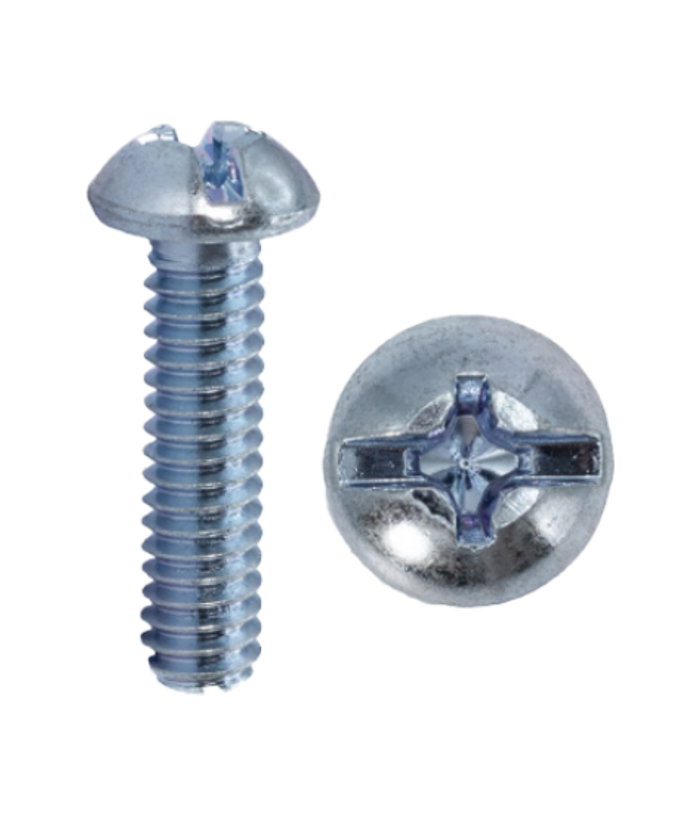

Minerallac 10-32 x 1-1/2" Round Head Machine Screws with Combo Phillips/Slotted Drive, Zinc Plated Steel, 100 Pack

Minerallac 10-32 x 1-1/2" Round Head Machine Screws with Combo Phillips/Slotted Drive, Zinc Plated Steel, 100 Pack

(No reviews yet) Write a Review

Model: 52825J

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.13
$12.89
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Minerallac 10-32 x 1-1/2" Round Head Machine Screws with Combo Phillips/Slotted Drive, Zinc Plated Steel

Professional Grade Fastening Solutions for Secure Connections

Minerallac delivers reliable fastening performance with these precision-engineered 10-32 x 1-1/2" round head machine screws. Constructed from durable steel with zinc plated finish for corrosion resistance, these screws feature combo Phillips/slotted drive design for versatile installation options. The round head configuration and 32 threads per inch provide superior strength connections in pre-tapped holes or with compatible nuts.

Professional Features & Benefits

  • 10-32 x 1-1/2" Threading: Precise 32 threads per inch ensures secure engagement and reliable holding power in threaded applications.
  • Combo Phillips/Slotted Drive: Dual drive system accommodates both Phillips #2 and slotted drivers for installation flexibility and convenience.
  • Zinc Plated Steel Construction: Durable steel material with protective zinc coating provides corrosion resistance and long-lasting performance.
  • Round Head Design: 0.346" head diameter with 0.13" height delivers optimal bearing surface and professional finished appearance.
  • 2A External Threading: Standard external thread classification ensures compatibility with standard nuts and tapped holes.
  • Superior Fastening Strength: Machine screw design provides stronger connections compared to spaced thread alternatives.

Technical Specifications

  • Country Of Origin: China
  • Drive Type: Slotted / Phillips Combo
  • Head Color: Silver
  • Head Diameter: 0.346
  • Head Height: 0.13
  • Head Type: Round Head
  • Phillips Driver Size: #2
  • Product Finish: Zinc Plated
  • Product Length: 1.500 in
  • Product Material: Steel
  • Product Size: 10-32 x 1-1/2
  • Product Type: Machine Screw
  • Thread Per Inch: 32
  • Thread Type: 2A External

Professional Applications

  • Electrical Panel Assembly and Component Mounting
  • Industrial Equipment Fastening and Maintenance
  • Commercial Fixture Installation and Repair
  • Professional Electrical Enclosure Assembly
  • Mechanical Equipment Securing Applications
  • Maintenance and Service Operations

Why Choose Minerallac Quality?

Minerallac machine screws deliver consistent performance with precision manufacturing and quality materials. The zinc plated finish provides reliable corrosion protection while the steel construction ensures long-term durability in demanding professional applications.

Manufacturer Resources

Product Specs

Drive Type:
Slotted / Phillips Combo
Head Color:
Silver
Head Diameter:
0.346
Head Height:
0.13
Head Type:
Round Head
Phillips Driver Size:
#2
Product Finish:
Zinc Plated
Product Length:
1.500 in
Product Material:
Steel
Product Size:
10-32 x 1-1/2
Product Type:
Machine Screw
Thread Per Inch:
32
Thread Type:
2A External
Department:
Fasteners
Product Subgroup:
Machine Screws
Product Group:
Screws

Minerallac 52825J – Frequently Asked Questions

1) Will a 10-32 machine screw thread into the tapped holes in a standard electrical panel or enclosure?
Yes. The Minerallac 52825J is a 10-32 machine screw with 32 threads per inch and a 2A external thread class, which is the standard fit for 10-32 tapped holes and standard 10-32 nuts found in panel backplates, enclosure bosses, and device mounting bosses. It is a machine thread, not a spaced sheet-metal thread, so the hole has to be tapped (or you need a nut behind it).
2) Will a 10-32 screw work in a 1/4-20 strut nut or a #8-32 tapped hole?
No. 10-32 is its own thread and will not engage either one. The 52825J has a 2A external 10-32 thread at 32 threads per inch, so it only mates with 10-32 nuts and 10-32 tapped holes. If the existing hardware is 1/4-20 or 8-32, you need a screw in that size instead, not this one.
3) Can I drive these 10-32 round head screws with a Phillips bit, or do I need a flat blade?
Either works. The head has a combination slotted/Phillips recess, and the Phillips size is #2, so a standard #2 bit in a drill or screwdriver seats properly. The slot is there for a flat blade when you are working in a panel and only have a cabinet-tip driver on you.
4) Will the round head on these screws clear a hole in a bracket or cover a slightly oversized hole?
The round head measures 0.346 in across and 0.13 in high. That gives a bearing surface noticeably wider than the 10-32 shank, so it spans a clearance hole drilled a size or two over, and the 0.13 in head height is what to check if anything has to sit flat on top of it. It is a raised head, not countersunk, so it will not sit flush in a chamfered hole.
5) Are zinc plated steel machine screws okay for outdoor or damp locations?
These are zinc plated steel, which is a corrosion-resistant coating for indoor, dry, and lightly damp service. For sustained outdoor exposure, washdown, or coastal air, stainless is the better call. For panel work, enclosure assembly, and general MRO fastening inside a building, the zinc plating is what the job normally calls for.
6) What is the Minerallac part number for the 10-32 x 1-1/2 inch round head machine screw, and how are they packed?
Order Minerallac 52825J. It is the 10-32 x 1-1/2 inch round head combo-drive machine screw in zinc plated steel, supplied 100 to a jar, which is the usual way these go onto a service truck or into a shop bin.
