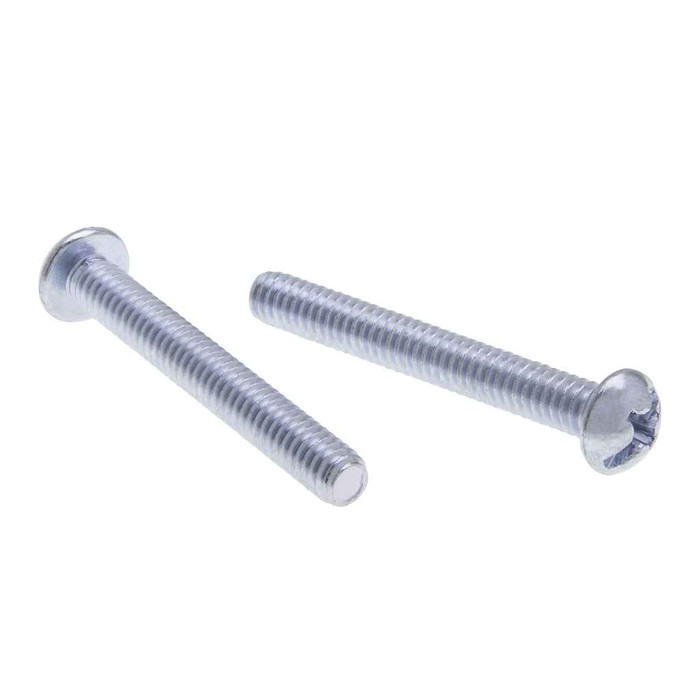

Metallics JRM69 10-32 x 1-1/4 in. Round Head Combo Machine Screws - Steel Zinc - 100qty

Metallics JRM69 10-32 x 1-1/4 in. Round Head Combo Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JRM69
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.14
$0.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1-1/4 in. Round Head Combo Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • In 1985, Metallics was the first fastener company in America to offer a full line of Combo’s! | Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Round head with slotted and Phillips Drive
    • Steel Zinc Material
    • Two Drives in one Head
    • 10-32 Diameter, 1-1/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#2
Fastener Head Height:
0.123 - 0.137 in.
Fastener Head Type:
Round
Fastener Head Width:
0.334 - 0.359 in.
Fastener Length:
1/1/04
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.093 - 0.119
Phillips Recess Diameter:
0.182 - 0.195
Phillips Recess Width:
0.031
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.99 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.082 - 0.108
Slot Depth:
0.065 - 0.087
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRM
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JRM69 – Frequently Asked Questions

1) Will the Metallics JRM69 machine screw thread into a standard 10-32 device box or fixture strap?
Yes. The JRM69 is a 10-32 machine screw, 32 threads per inch, which is the thread used on most electrical device boxes, fixture straps and plaster rings. At 1-1/4 inch long it gives extra reach where a box is set back behind thick drywall or tile, but it needs 10-32 tapped holes, not a self-tapping application.
2) Do the Metallics JRM69 screws meet Buy American or ARRA requirements for a government job?
No. The JRM69 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your contract carries a domestic sourcing clause, these will not satisfy it.
3) Can I drive these Metallics combo screws with a Phillips bit, or do I need a slotted screwdriver?
Either. The JRM69 has a combination head, slotted and Phillips in the same recess, so you can run them with a #2 Phillips bit in a drill or finish them off with a flat blade in tight work. The Phillips recess runs 0.182 to 0.195 inch across and 0.093 to 0.119 inch deep; the slot is 0.05 to 0.06 inch wide.
4) How much does the round head on a 10-32 Metallics machine screw stick up, and will it clear a cover plate?
The round head measures 0.334 to 0.359 inch across and sits 0.123 to 0.137 inch above the surface. That domed profile is not flush, so if you need a screw that disappears into a countersunk plate or a flush trim, a round head is the wrong choice; use a flat head instead.
5) How are the Metallics JRM69 screws packaged, and what is the smallest quantity I can buy?
They come in a jar of 100. The order minimum is one jar, so 100 pieces is the smallest buy. The filled jar weighs 0.99 lbs.
6) Are these zinc-plated steel screws OK for outdoor or damp locations?
The JRM69 is carbon steel with a zinc finish, made from AISI 1006-1022 steel. Zinc plating handles dry indoor and protected locations well. For wet, coastal or washdown environments, specify a stainless machine screw instead; plated steel will eventually corrode there.
7) What is the strength rating on the Metallics JRM69 10-32 screw?
Minimum tensile strength is 60,000 psi, with a hardness of Rockwell B70 to B100. That is standard low-carbon machine screw strength, fine for mounting devices, straps, enclosures and trim. It is not a graded structural fastener, so do not substitute it where a Grade 5 or Grade 8 bolt is called out.
8) What trades actually use a 10-32 x 1-1/4 inch combo round head machine screw?
Metallics builds the JRM series for the electrical, plumbing, heating and air conditioning trades. Typical uses are mounting devices and plates to boxes, fastening fixture straps and hangers, and attaching covers to tapped sheet metal where the hole is already threaded 10-32.
